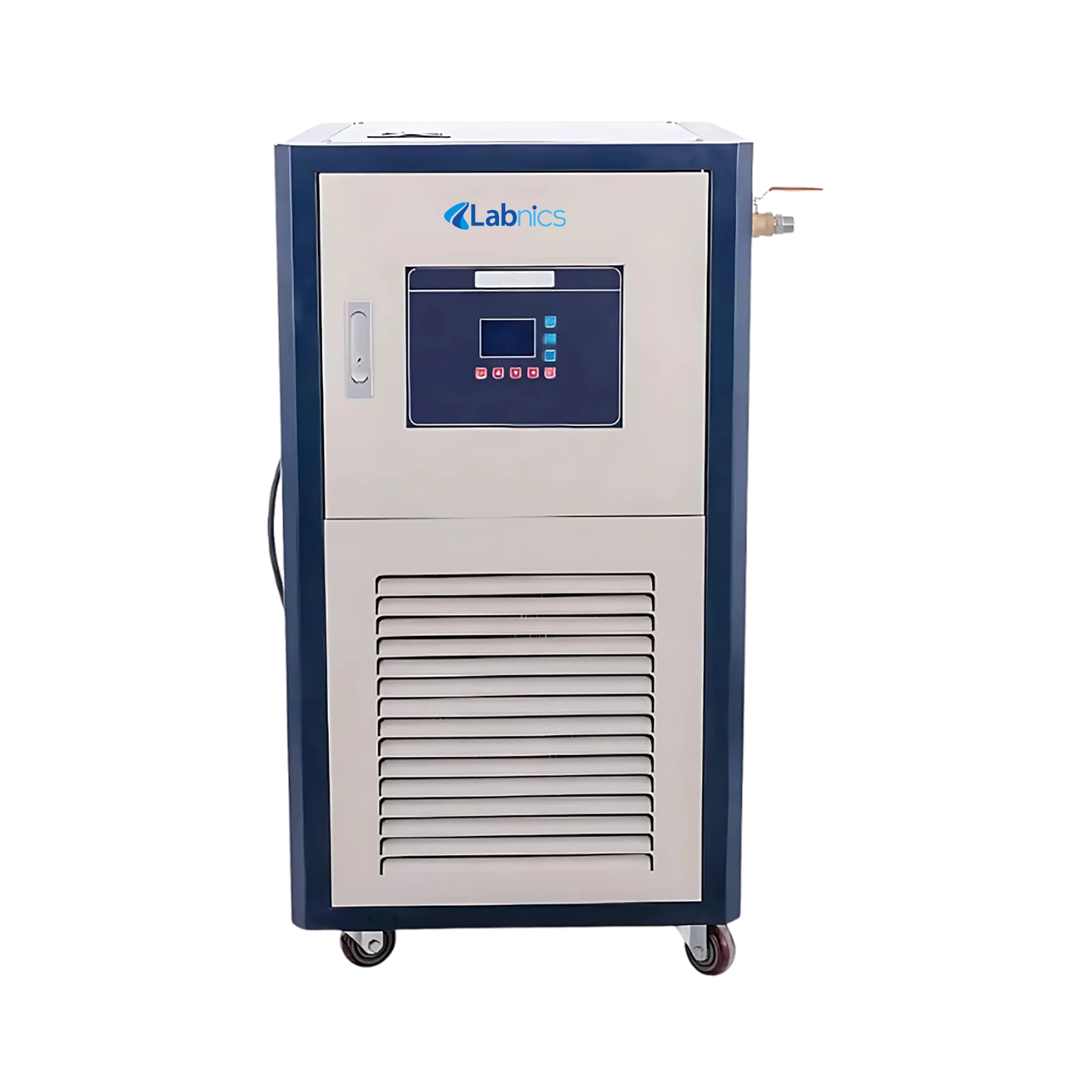

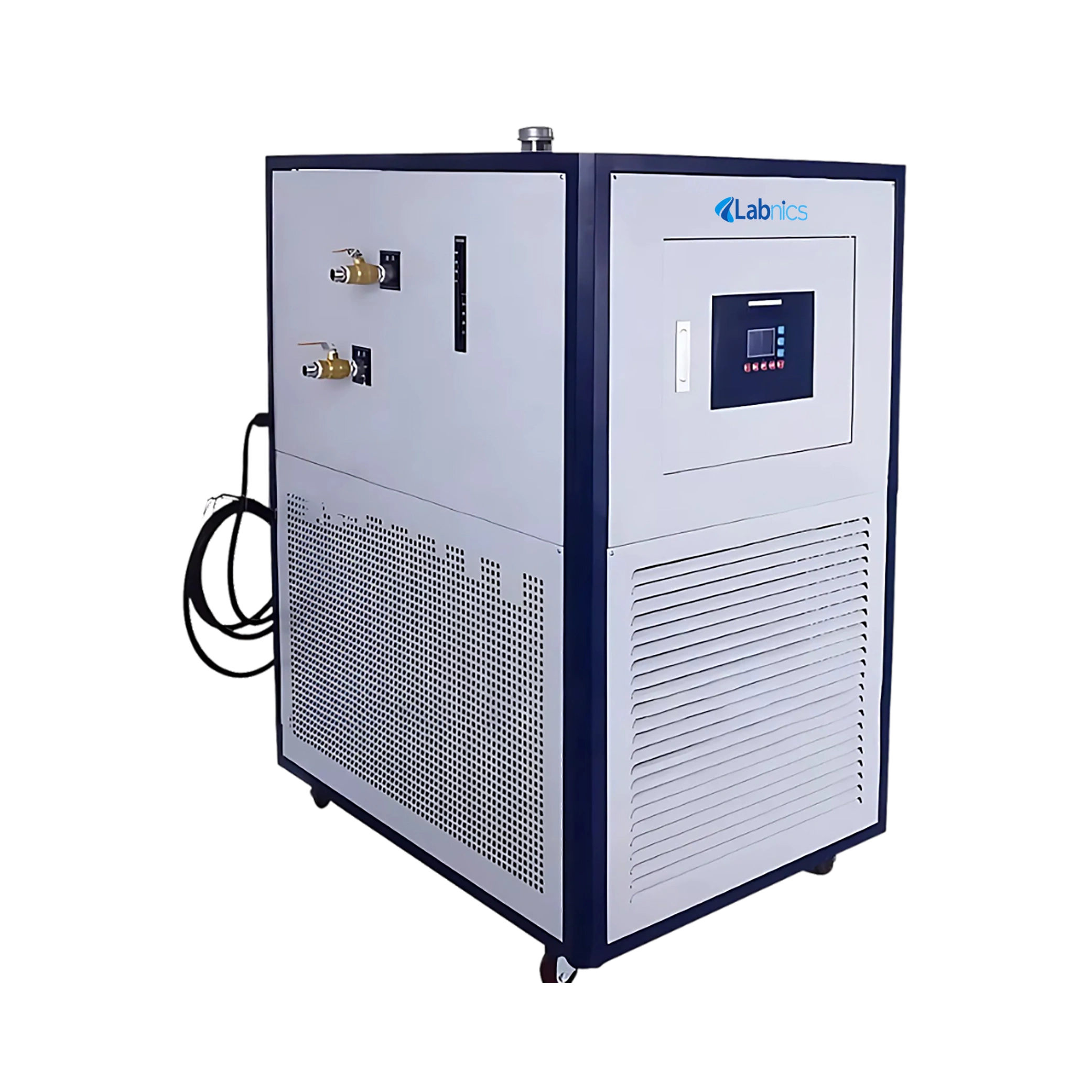

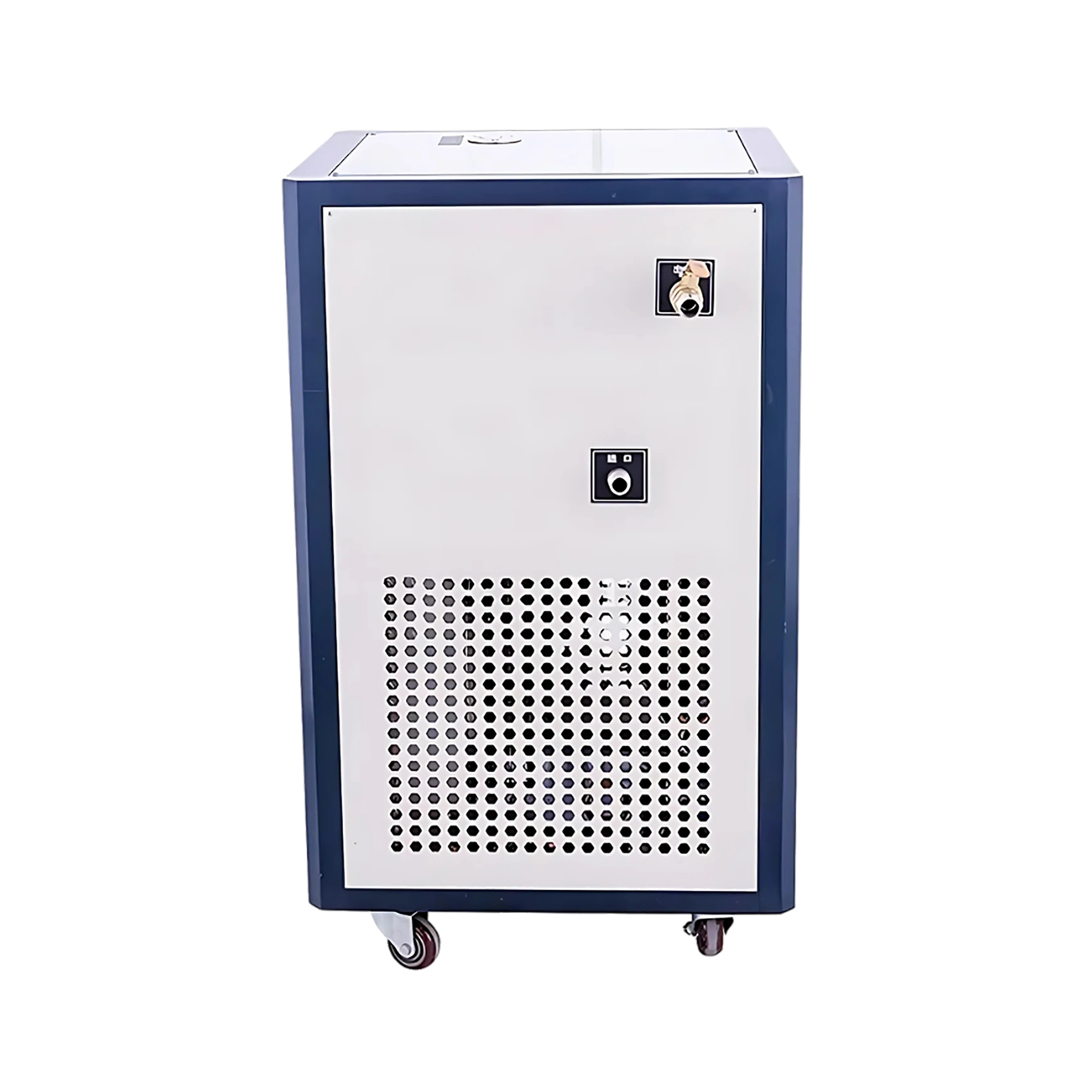

Refrigerated and Heating Circulator NRHC-401 offers a wide temperature range from -40°C to 200°C for both heating and cooling applications. It ensures high flow rates between 20 to 40L/min for efficient circulation. This circulator uses a PT100 sensor to deliver precise control with high accuracy. It utilizes a built-in circulating pump to maintain steady fluid movement. Our unit operates with a closed circulation system to prevent fluid loss, oxidation, and moisture absorption.
FAQ for Refrigerated and Heating Circulator NRHC-401
1: Does the Refrigerated and Heating Circulator NRHC-401 support both internal and external circulation?
The Refrigerated and Heating Circulator is designed with a powerful built-in circulating pump and comes with external loop interfaces. This setup allows for effective temperature transfer to reactors and other equipment using external circulation.
2: What safety features are included?
Our Refrigerated and Heating Circulator includes multiple protection mechanisms such as delayed start, overcurrent protection, overheating and over-temperature alerts. These features safeguard both the equipment and the process it supports.
3: Can the Refrigerated and Heating Circulator NRHC-401 handle high-temperature cooling directly?
The Refrigerated and Heating Circulator is capable of high-temperature cooling, allowing it to lower temperatures directly from elevated levels without needing intermediate cooling steps. This feature enhances operational efficiency and saves time.
4: How often should the Refrigerated and Heating Circulator NRHC-401 be maintained?
Regular maintenance should be performed every 3 to 6 months, depending on usage. This includes checking fluid levels, cleaning filters, and inspecting the circulation lines for any blockages or leaks.
5: How can I prevent damage to the Refrigerated and Heating Circulator NRHC-401 during use?
Avoid running the circulator without fluid, and ensure proper ventilation to prevent overheating. Using it within the specified temperature and pressure range helps reduce mechanical strain and extends component life.
