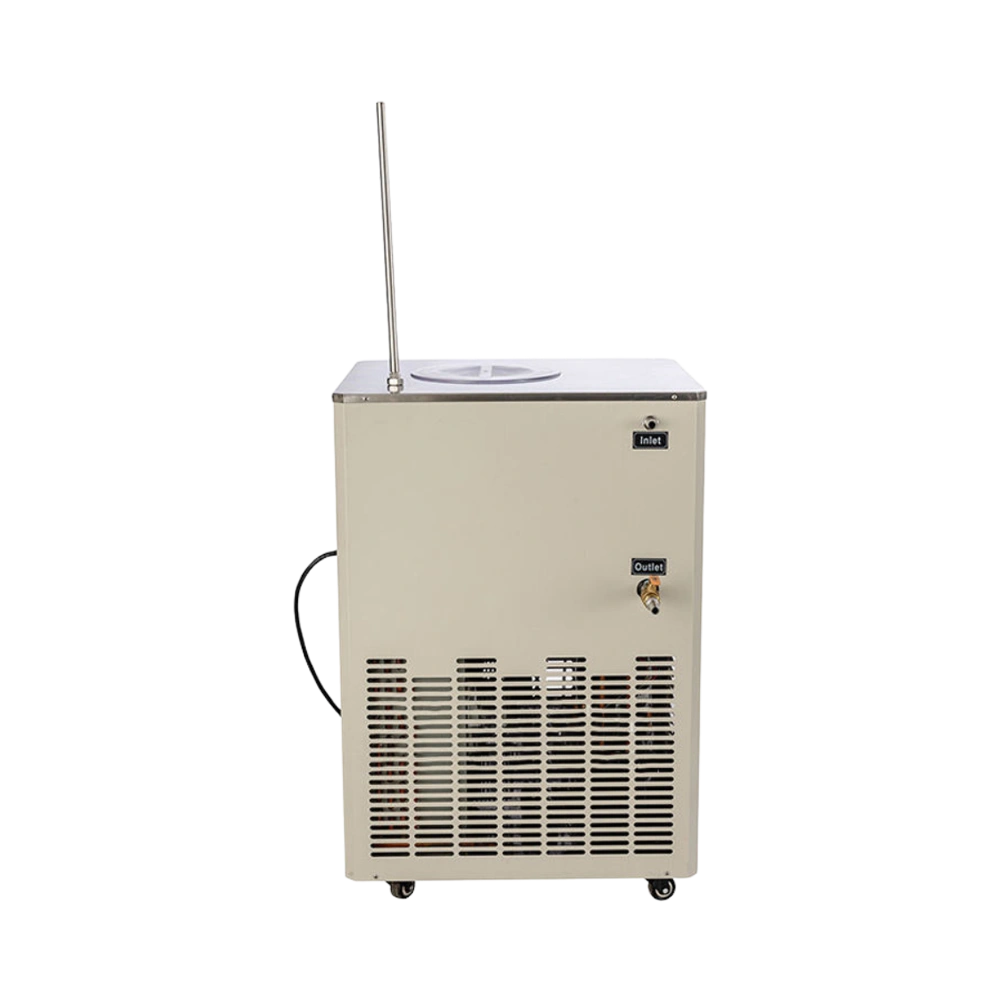

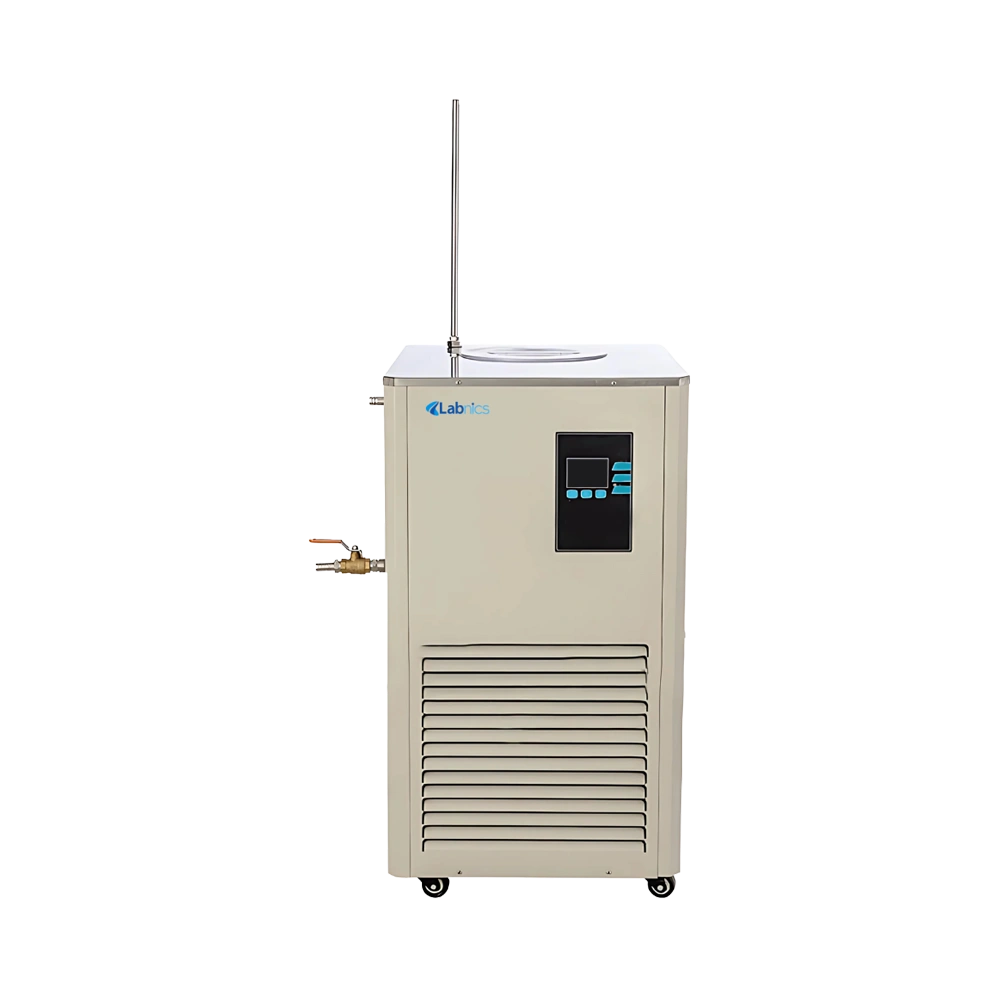

Recirculating Chiller NRC-206 provides a temperature control range from -40°C to room temperature, ensuring efficient cooling. It uses R22 refrigerant to deliver reliable and consistent performance. This unit features an airflow volume of 2290m³/h, enabling effective heat dissipation. It is equipped with a digital LCD screen for clear and accurate temperature display. Our chiller is constructed with a cold plate spray anti-corrosion body to ensure durability.
$4,713.00
Specifications
| Tank capacity | About 21L |
| Temperature range | -40°C to RT |
| Room Temperature | 5 to 35°C |
| Temperature accuracy | ±0.1°C |
| Temperature sensor | PT100 |
| Room humidity | ≤70% ventilation |
| Flow | 20 to 40L/min |
| Lifting head | 4 to 6M |
| Pressure | ≤0.4MPa |
| Heat exchange area | 11㎡ |
| Air volume | 2290m³/h |
| Refrigerant | R22 |
| Condensing coil | Φ12 Copper tube nickel plated |
| Material | Cold plate spray anticorrosion |
| Compressor type | 3P |
| Compressor quantity | 1 |
| Screen display | LCD screen, key operation |
| Safety protection | Delay, overcurrent, overheating |
| Compressor power | 1103W |
| Cooling capacity | 3486W |
| Total power consumption | 2434W |
| Power supply | 220V 50Hz 1phase |
| Outer loop interface | Φ16mm |
| Tank dimension | Φ300×300 mm |
| Product dimension | 590×670×(975+500) mm |
| Packaging dimension | 720×590×1140 mm |
| Net weight | 96 kg |
| Gross weight | 133 kg |
Features
Applications
Ask Expert
FAQ for Recirculating Chiller NRC-206
1: Can the Recirculating Chiller NRC-206 be integrated with other lab equipment?
Our Recirculating Chiller supports external circulation and can be paired with rotary evaporators, vacuum pumps, and freeze dryers. This makes it highly adaptable for multi-step laboratory processes.
2: What kind of construction does the Recirculating Chiller NRC-206 have?
The Recirculating Chiller is built with a cold plate spray anti-corrosion body to withstand harsh laboratory conditions. This construction ensures durability and long-term use.
3: What safety features are included?
Our Recirculating Chiller includes delay start, overcurrent, and overheating protection mechanisms. These ensure user safety and protect connected instruments from damage.
4: Is the Recirculating Chiller NRC-206 suitable for harsh environmental conditions?
The Recirculating Chiller operates reliably even in environments with limited water supply, poor water quality, and high ambient temperatures. This makes it suitable for diverse laboratory setups.
5: How user-friendly is the interface?
Our Recirculating Chiller is equipped with a key-operated LCD screen and a microcomputer control system, offering intuitive operation. This makes setup and temperature adjustments straightforward.
Labnics Recirculating Chiller features automated water level detection, to maintain optimal water levels. They feature a compact design with a user-friendly touchscreen for easy monitoring. These units are equipped with a microprocessor PID controller for precise temperature control. Our recirculating chillers are built with durable steel construction for long-lasting performance. They come with high-efficiency pumps that ensure steady flow rates.
