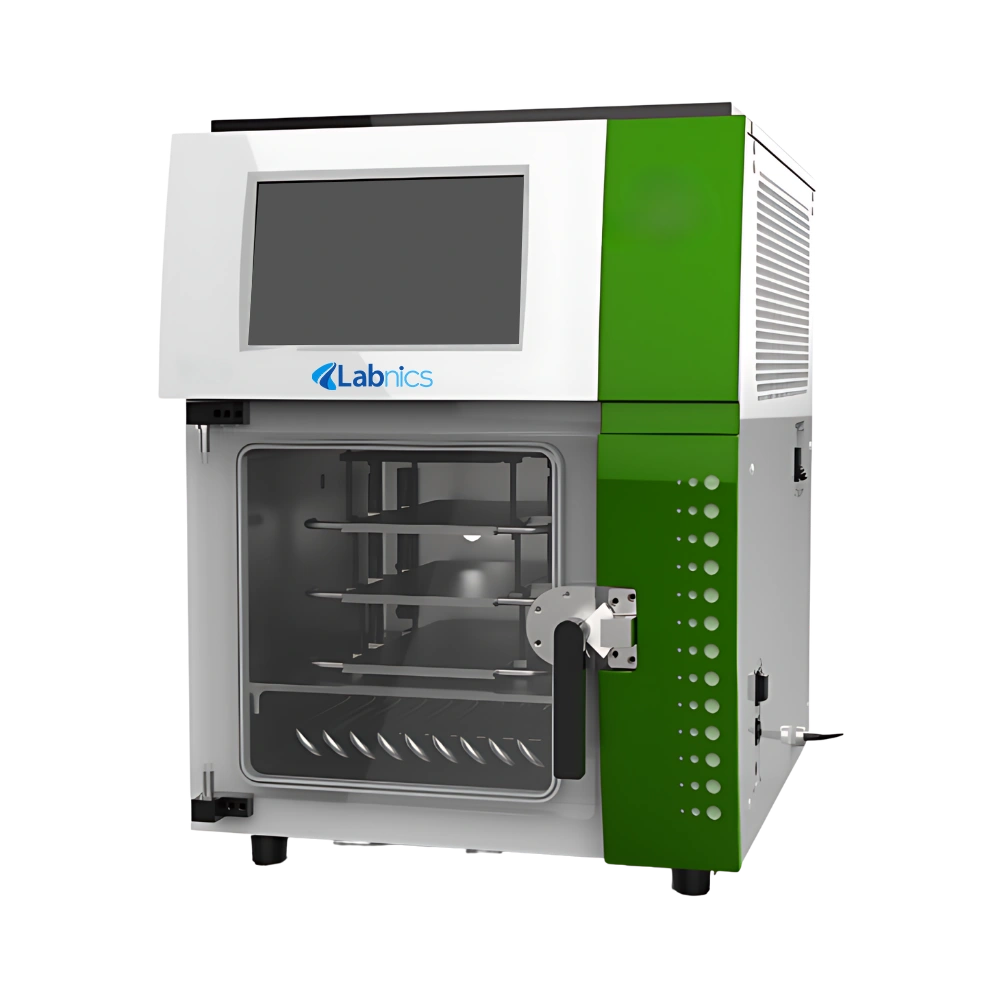

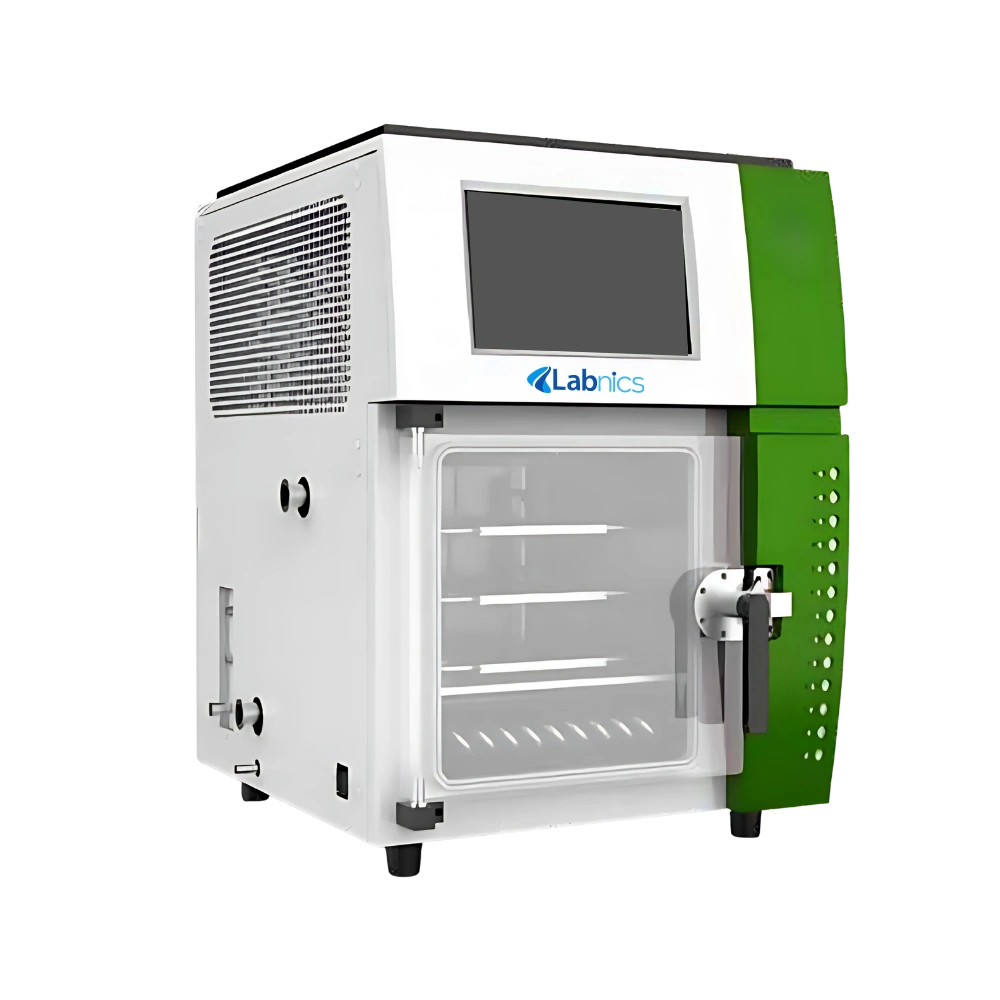

Pilot Freeze Dryer NPFD-601 features two shelves and operates within a -50 ℃ to 60 ℃ temperature range. It provides a maximum freeze-drying area of 0.16 m², suitable for small to medium batch processing. This unit includes a vacuum pump with a 2 L/s flow rate to ensure stable performance. It is made of medical-grade 316L stainless steel for high durability and corrosion resistance. Our dryer comes with a 17-inch HD capacitive touchscreen for easy and intuitive operation.
Pilot Freeze Dryer NPFD-601 is used to remove moisture from heat-sensitive materials through sublimation, preserving their structure and stability. It is commonly applied in pharmaceutical labs, biotech research, and food and material science industries.
Standard Accessories
Vacuum sensor
3 shelf sensors
1 product sensor
Draining hose
Inert gas backfilling port
Vacuum pump with a suction capacity of 2L/s
Vacuum hose
Optional Accessories
Manifold with 4 rubber valves and 4 flasks (50/100/250/500ml)
1: Can the Pilot Freeze Dryer NPFD-601 handle sensitive or reactive samples?
Yes, our Pilot Freeze Dryer supports inert gas backfilling to protect sensitive materials during the drying process. This feature helps maintain sample integrity by preventing exposure to ambient air.
2: Does the Pilot Freeze Dryer NPFD-601 support automation or protocol management?
The Pilot Freeze Dryer allows you to create and store up to 1,000 customized drying protocols, each with up to 50 steps. This helps ensure repeatability and flexibility across different sample types.
3: What kind of safety and access control features are included?
The Pilot Freeze Dryer includes 3-level user access management, ensuring only authorized personnel can modify or run protocols. It helps maintain data security and process integrity.
4: How often should the Pilot Freeze Dryer NPFD-601 be cleaned?
Regular cleaning is essential to maintain performance and hygiene. It’s recommended to clean the chamber, shelves, and condenser after each batch to prevent contamination and residue buildup.
5: How can I ensure consistent shelf temperature performance?
Keep the shelves clean and free from debris to maintain uniform heat transfer. Periodically verify temperature accuracy using a calibrated external probe if needed.
Labnics Pilot Freeze Dryers offer an efficient vacuum system for fast and uniform sublimation. They feature a flexible shelf design that allows easy adjustment and consistent temperature distribution. These units are built with stainless steel chambers for durability and corrosion resistance. They are equipped with a digital display for clear and accurate readings. Our pilot freeze dryers include a defrosting system for quick condenser cleaning and reduced downtime.
