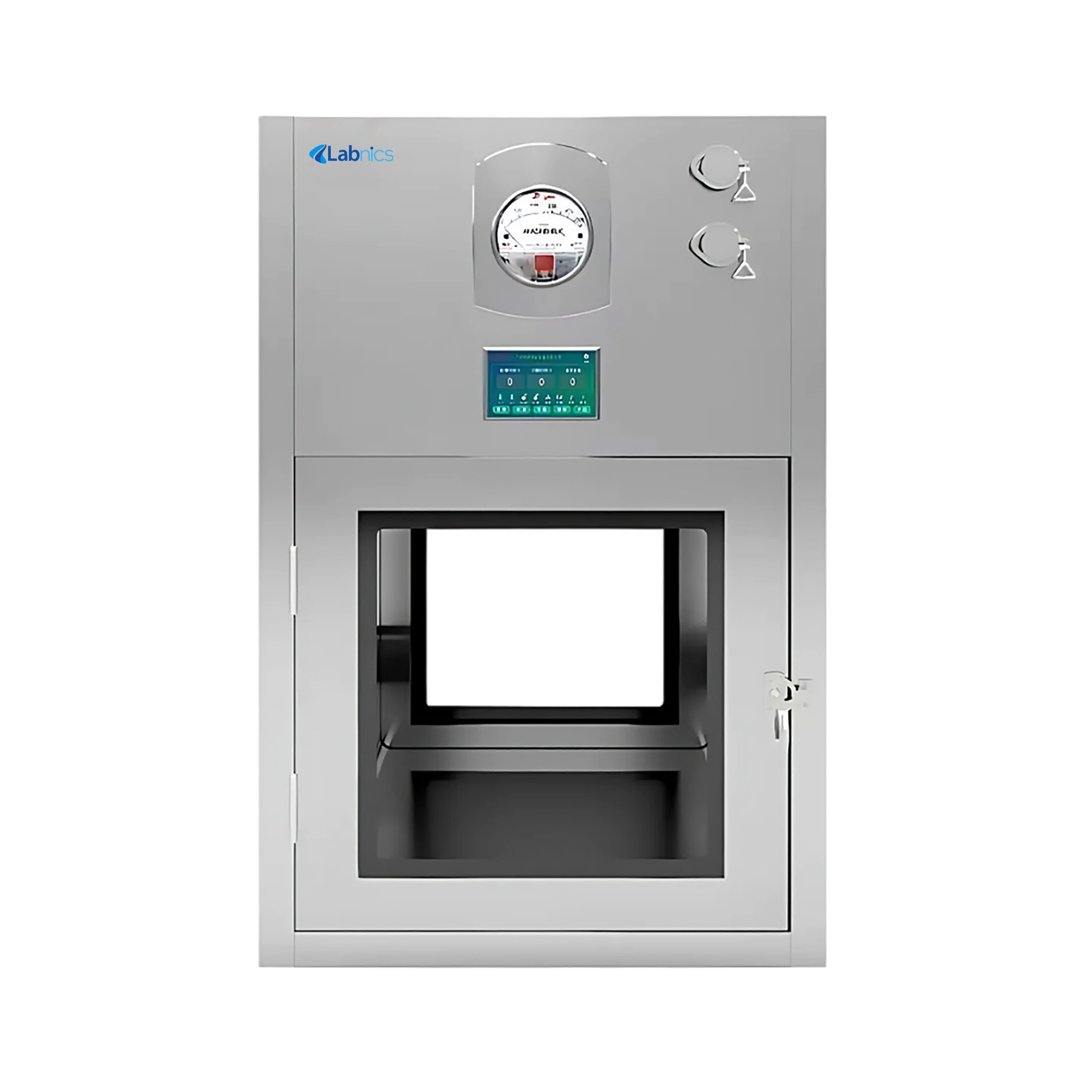

Pass Box NPB-201

Pass Box NPB-201 is designed as a dynamic pass box that ensures contamination-free material transfer. It is equipped with a high-efficiency HEPA filter offering 99.995% filtration. Our unit is constructed from SUS 304 stainless steel for durability and easy cleaning. It is fitted with an internal rotor centrifugal fan for stable airflow. Our pass box includes a soft-touch control panel for simple and convenient operation.

---

$3,188.00

Buy Now Catalog

Specifications

Internal dimension	500×500×500 mm
External dimension	680×590×1100 mm
Type	Dynamic pass box
HEPA filter	H14 liquid tank HEPA filter (99.995% at 0.3μm)
Material	SUS 304 stainless steel, 1.0 mm thickness
Viewing windows	Double-layer tempered glass viewing windows
Door type	Electrical interlock
Air velocity	0.45 to 0.75m/s
UV lamp	Present
Noise	≤ 65 dB
Power consumption	280 to 300 W
Power supply	220V / 50Hz

Features

• Easy cleaning design
• Electrical interlock doors
• UV sterilization lamp
• Low noise operation
• Auto-cleaning cycle

Applications

• Pass Box NPB-201 is used for contamination-free transfer of materials between cleanroom and non-cleanroom areas. It is commonly used in pharmaceutical, laboratory, and healthcare cleanroom environments.
