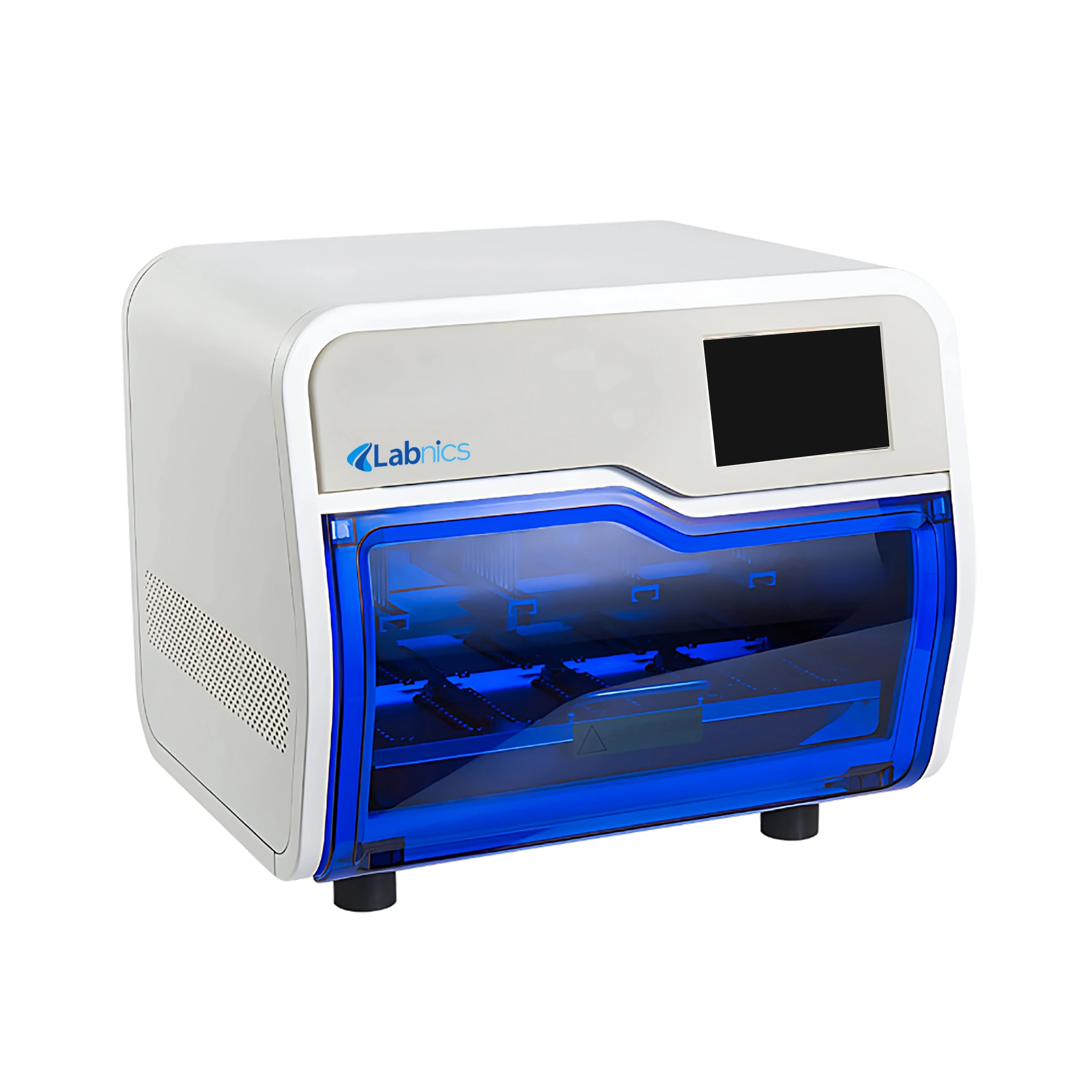

Nucleic Acid Extraction System NNAE-301 supports high-throughput processing for 1 to 96 samples with a cycle time ranging from 20 to 50 minutes. It utilizes magnetic bead-based extraction for efficient nucleic acid isolation. Our unit offers adjustable sample mixing to enhance extraction consistency. It includes a touchscreen panel for easy access and smooth control. This system features a modular design for efficient maintenance and operation.
$21,000.00
Specifications
| Sample Throughput | 1 to 96 samples |
| Sample Processing Time | 20 to 50 minutes |
| Disinfection | Gated UV disinfection with timing |
| Power | 320 VA |
| Power Supply | AC 100V to 240 V, 50/60 Hz |
| Dimensions | 560 × 450 × 480 mm |
| Weight | 45 kg |
Features
Applications
Ask Expert
FAQ for Nucleic Acid Extraction System NNAE-301
1: What features make the Nucleic Acid Extraction System NNAE-301 user-friendly?
The Nucleic Acid Extraction System NNAE-301 is equipped with a responsive touchscreen panel and software-driven workflow, allowing users to easily control operations and monitor processes in real time.
2: What contamination control features are included in the Nucleic Acid Extraction System NNAE-301?
The Nucleic Acid Extraction System NNAE-301 features gated UV disinfection, which helps maintain a sterile chamber environment and reduces the risk of cross-contamination between runs.
3: How does the Nucleic Acid Extraction System NNAE-301 ensure consistent extraction performance?
Our Nucleic Acid Extraction System NNAE-301 ensures high consistency by using magnetic bead-based technology combined with adjustable sample mixing. This setup enhances the reliability of nucleic acid isolation across different sample types.
4: Can the Nucleic Acid Extraction System NNAE-301 handle high-throughput processing?
Yes, the Nucleic Acid Extraction System NNAE-301 supports processing from 1 to 96 samples in a single run, making it suitable for laboratories requiring efficient and scalable high-throughput extraction.
5: Which sample types are compatible with the Nucleic Acid Extraction System NNAE-301?
The Nucleic Acid Extraction System NNAE-301 is compatible with a wide range of samples, including whole blood, saliva, swabs, and cultured cells, making it versatile for clinical, forensic, and molecular biology applications.
