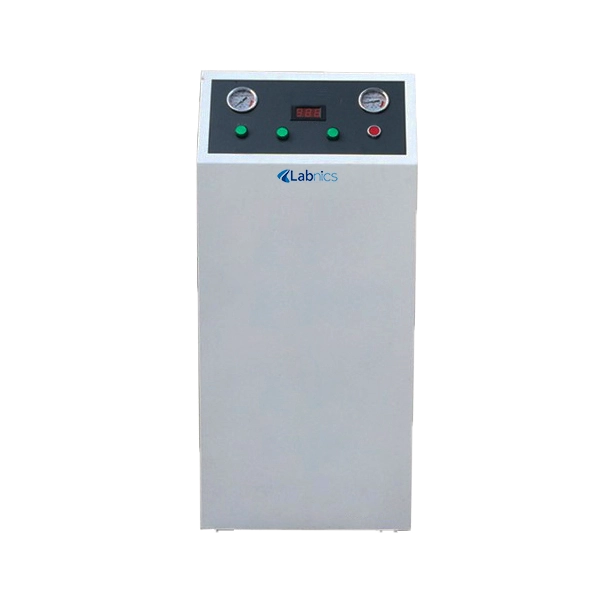

Nitrogen Gas Generator NNGG-100 is an on-site Pressure Swing Adsorption (PSA) unit that compresses atmospheric air using an air compressor. This unit delivers high purity nitrogen as the atmospheric air is padded through a tightly packed Carbon Molecular Sieve (CMS) column. As a result, only the smaller nitrogen molecules are passed through whilst the larger molecules of oxygen and other molecules are adsorbed by the CMS. As a result, these are an ideal solution for nitrogen requirements.
$2,550.00
Specifications
| Gas production capacity | 2-3m³/h |
| Nitrogen purity | 99.9 - 99.999% |
| Intake pressure | 0.6 - 0.8Mpa |
| Nitrogen pressure | 0.1 - 0.6Mpa |
| Display | LED |
| Power consumption | 50W |
| Power supply | AC 110/220 V, 50/60 Hz |
| Dimension (W × D × H) | 600 × 500 × 1250 mm |
| Weight | 75 kg |
