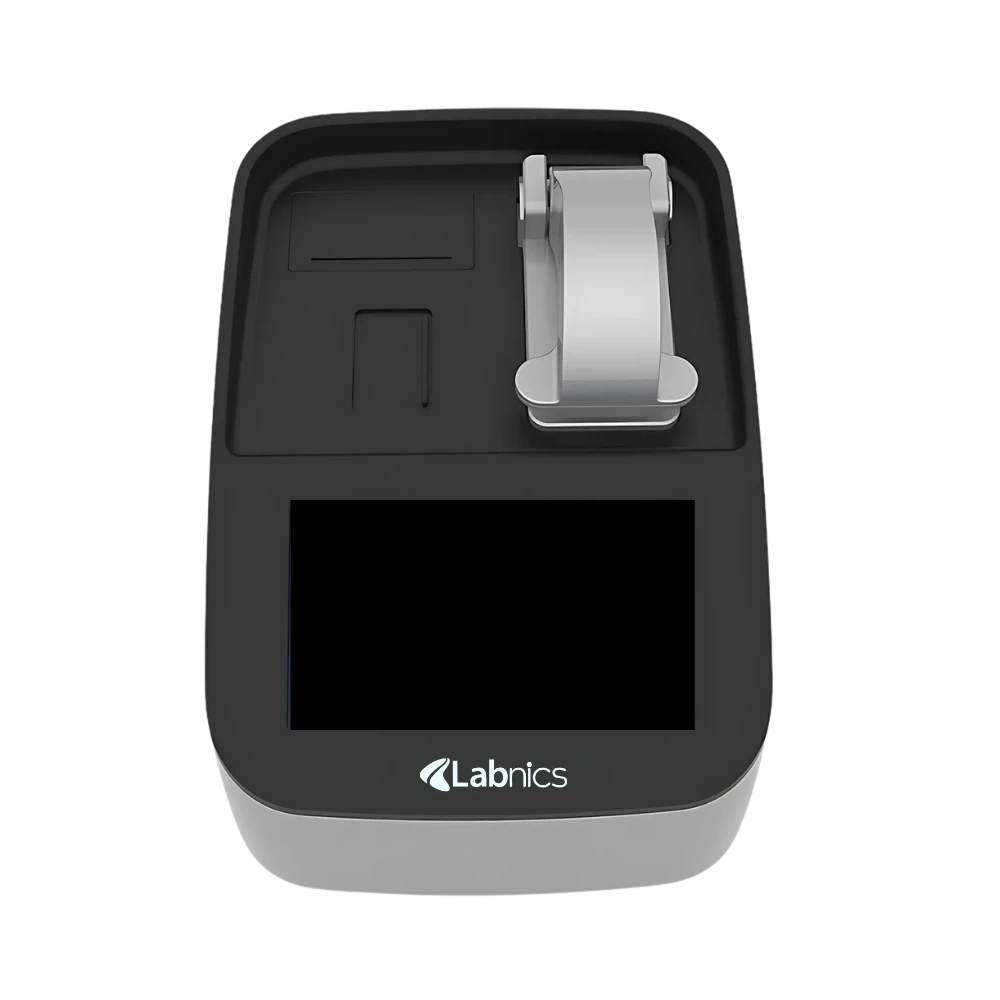

Microvolume Spectrophotometer NMVS-402

Microvolume Spectrophotometer NMVS-402

Microvolume Spectrophotometer NMVS-402 operates within a 190 to 850 nm wavelength range and offers rapid measurements for molecular analysis. It has a compact footprint and supports ultra-low volume testing from 0.5 µL. Our automatic optical path switching accommodates diverse testing needs. This integrated thermal printer simplifies record keeping. It has fluorescence detection linearity enhances reproducibility in gradient testing.


$13,500.00

Catalog

Specifications

Minimum Sample Size 0.5 to 2 µL
Wavelength Range 190 to 850 nm
Optical Distance 1 mm, 0.2 mm, 0.05 mm
Cuvette Optical Distance 10 mm, 5 mm, 2 mm, 1 mm
Wavelength Accuracy ±2 nm
Absorbance Accuracy ±1% (7.332 Abs at 260 nm)
Absorbance Resolution 0.003 Abs (at 0.2 mm optical distance)
Absorbance Range 0.04 to 300 A (10 mm equivalent)
dsDNA Detection Range 2 to 15000 ng/µL
OD600 Absorbance Range 0 to 6.000 Abs
OD600 Absorbance Stability (0.3) ≤0.5%, (3.4) ≤2%
OD600 Absorbance Repeatability (0.3) ≤0.5%, (3.4) ≤2%
Fluorescence Linearity R > 0.996
Sample Pedestal Material 304 Stainless Steel and Quartz
Measurement Time < 6 s
Display 7-inch touch screen
Absorbance Test Range 2 to 15000 ng/µL (dsDNA)
Data Output USB
Printer Built-in thermal printer
Sleep Power 5 W
Power Consumption 25 W
Operating Power 24 V DC
Dimensions (W × D × H) 310 × 221 × 176 mm

Features

  • Dual Mode Analysis
  • Built-in Thermal Printer
  • Wide Detection Range
  • UV Precision Sensor
  • Stainless Steel Base
  • USB Data Output

Applications

  • Microvolume Spectrophotometer NMVS-402 used to quantify nucleic acid and protein concentrations using micro to low-volume samples. It is particularly useful in biotechnology startups, food quality labs, and environmental sample analysis.

Ask Expert

FAQ for Microvolume Spectrophotometer NMVS-402

1: How is the fluorescence linearity supported in the Microvolume Spectrophotometer NMVS-402?

The Microvolume Spectrophotometer NMVS-402 achieves R > 0.996 linearity, providing consistent results in fluorescence-based gradient or dilution tests, which is critical in advanced protein or DNA quantification.

2: Can the Microvolume Spectrophotometer NMVS-402 print results instantly?

Yes, Microvolume Spectrophotometer NMVS-402 comes with a built-in thermal printer, allowing direct result output without needing to transfer data to a PC or external device.

3: What makes the Microvolume Spectrophotometer NMVS-402 suitable for field use?

Microvolume Spectrophotometer NMVS-402 compact size, low power draw (25 W), and fast analysis time (<6 seconds) make it ideal for on-site sampling and mobile laboratory setups.

4: What optical path lengths are available in the Microvolume Spectrophotometer NMVS-402?

Microvolume Spectrophotometer NMVS-402 supports automated switching between 1 mm, 0.2 mm, and 0.05 mm, improving convenience and eliminating the need for manual adjustments.

5: Is Microvolume Spectrophotometer NMVS-402 capable of detecting protein as well as nucleic acids?

Absolutely. Microvolume Spectrophotometer NMVS-402 offers precise detection across dsDNA and protein concentration ranges, including OD600 support for microbial analysis.


Microvolume Spectrophotometer NMVS-402

Microvolume Spectrophotometer NMVS-402

Related Models Of Microvolume Spectrophotometer

Labnics Microvolume Spectrophotometer offers fast and reliable measurement of sample concentration in very little time. These units feature a stainless steel and quartz fiber platform, ensuring durability and stability. They are equipped with a high-definition touchscreen display, providing clear and precise data results. Our models include a built-in micro-volume sample port, allowing the handling of very small sample volumes. They automatically save data, ensuring easy access and efficient analysis.
