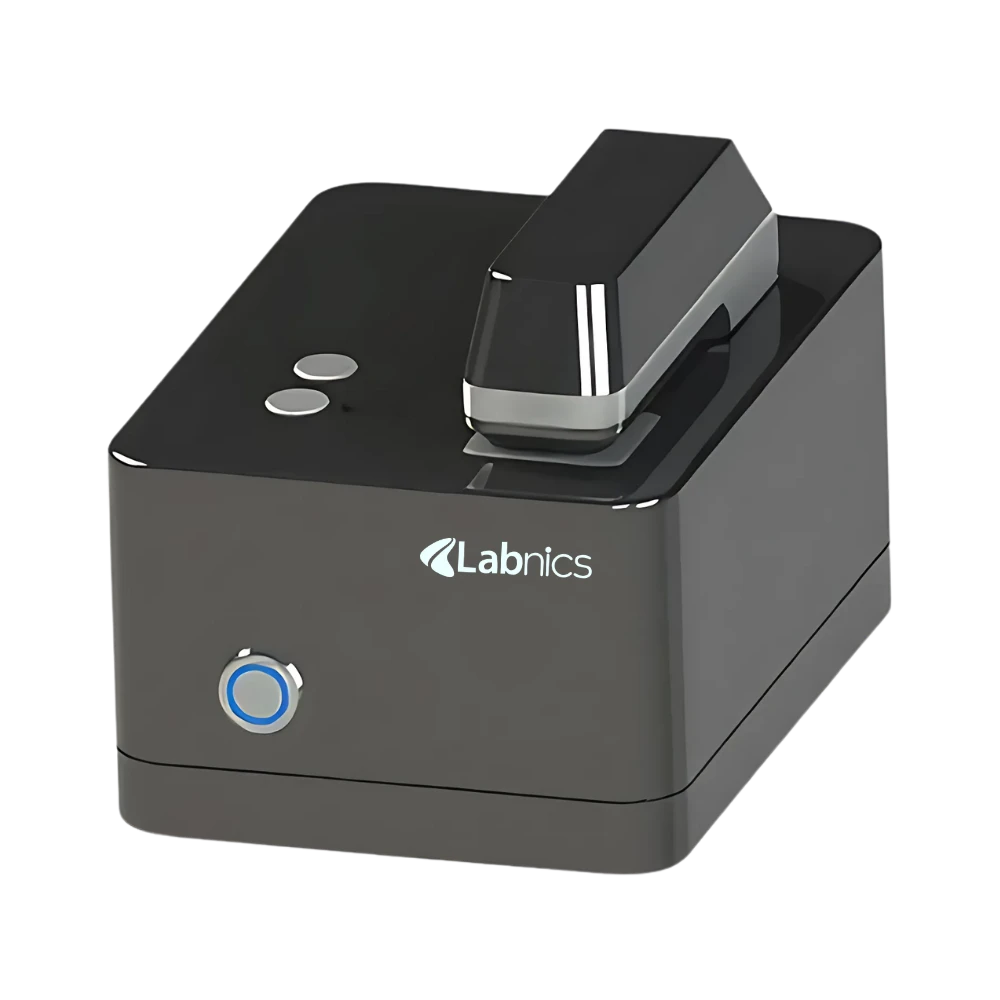

Microvolume Spectrophotometer NMVS-300

Microvolume Spectrophotometer NMVS-300 provides a wavelength range of 190 to 850 nm, enabling accurate detections. It features a minimum sample requirement of just 0.5 µL, minimizing waste during analysis. Our auto-scanning function and wide detection range enhance versatility for multiple sample types. It has a fast measurement time of less than 5 seconds with a Xenon flash lamp as its light source. This intuitive PC connectivity and robust design ensure long-term efficiency in diverse testing environments.

---

$10,125.00

Buy Now Catalog

Specifications

Minimum Sample Size	0.5 µL
Wavelength Range	190 to 850 nm
Optical Distance	1 mm, 0.2 mm
Wavelength Accuracy	1 nm
Wavelength Resolution	≤ 0.3 nm (FWHM at Hg 253.7 nm)
Absorbance Accuracy	± 2% (0.76 at 257 nm)
Absorbance Resolution	0.002 Abs (at 1 mm optical distance)
Absorbance Range	0.02 to 300 A (10 mm equivalent)
Detection Range	Lower limit: 2 ng/µL dsDNA; Upper limit: 15000 ng/µL dsDNA
Sample Pedestal Material	304 Stainless Steel and Quartz
Measurement Time	< 5 s
Detector	3648 CCD
Light Source	Xenon Flash Lamp
Absorbance Test Range	0.1 to 5 Abs: ±0.1 Abs; 5 to 80 Abs: ±2% (extendable to 300 Abs)
Power Consumption	24 W
Power Supply	AC 100 to 240 V, 50 to 60 Hz
Dimensions (W × D × H)	200 × 130 × 136 mm
Weight	2.0 kg

Features

• Compact Size
• Direct Sample Analysis
• Portable Design
• High Absorbance Range
• Stainless Steel Pedestal

Applications

• Microvolume Spectrophotometer NMVS-300 is used for rapid and precise measurement of nucleic acids, proteins, and other biomolecules in microvolume samples. It is widely applied in life sciences, molecular biology, clinical diagnostics, pharmaceutical research, and food quality testing laboratories.
