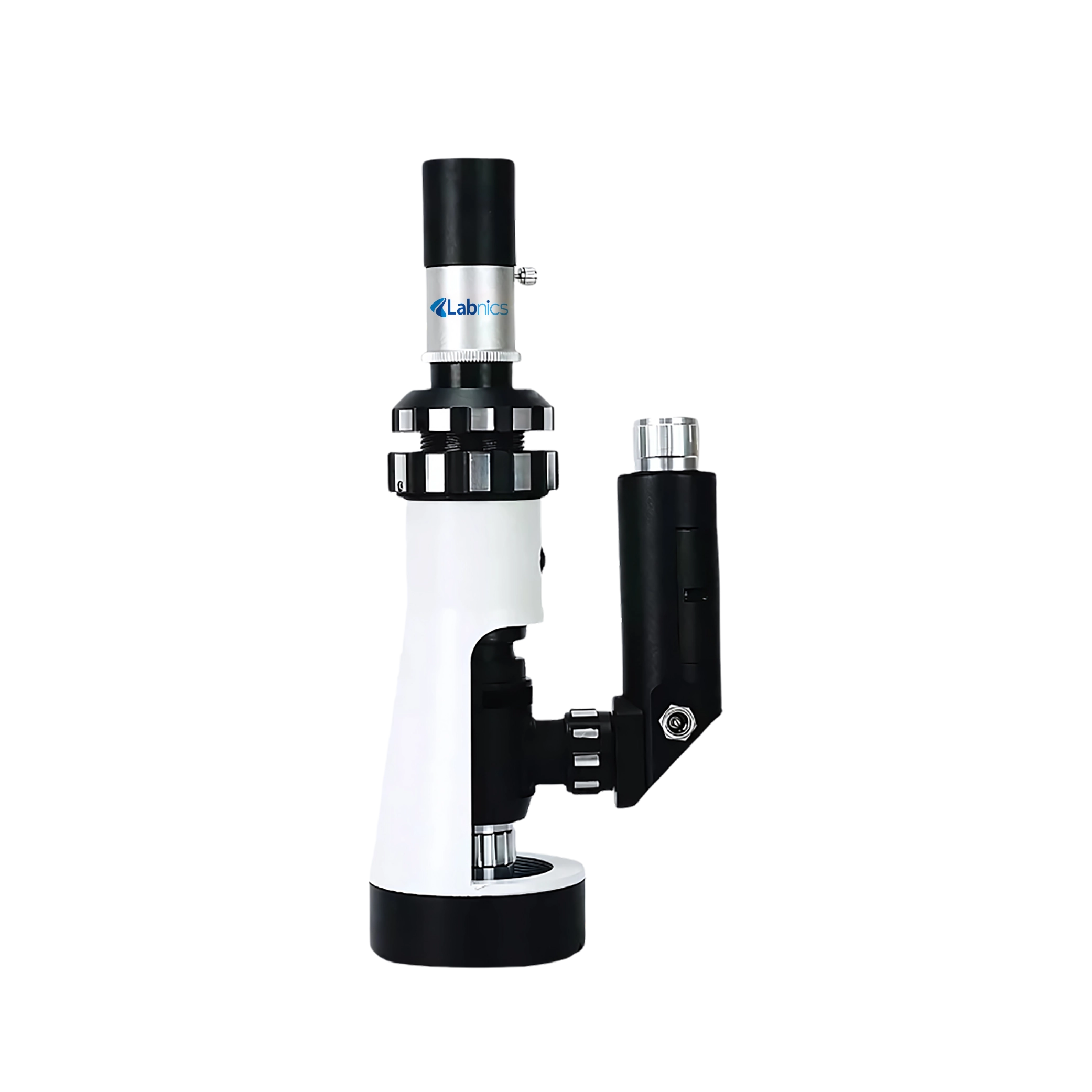

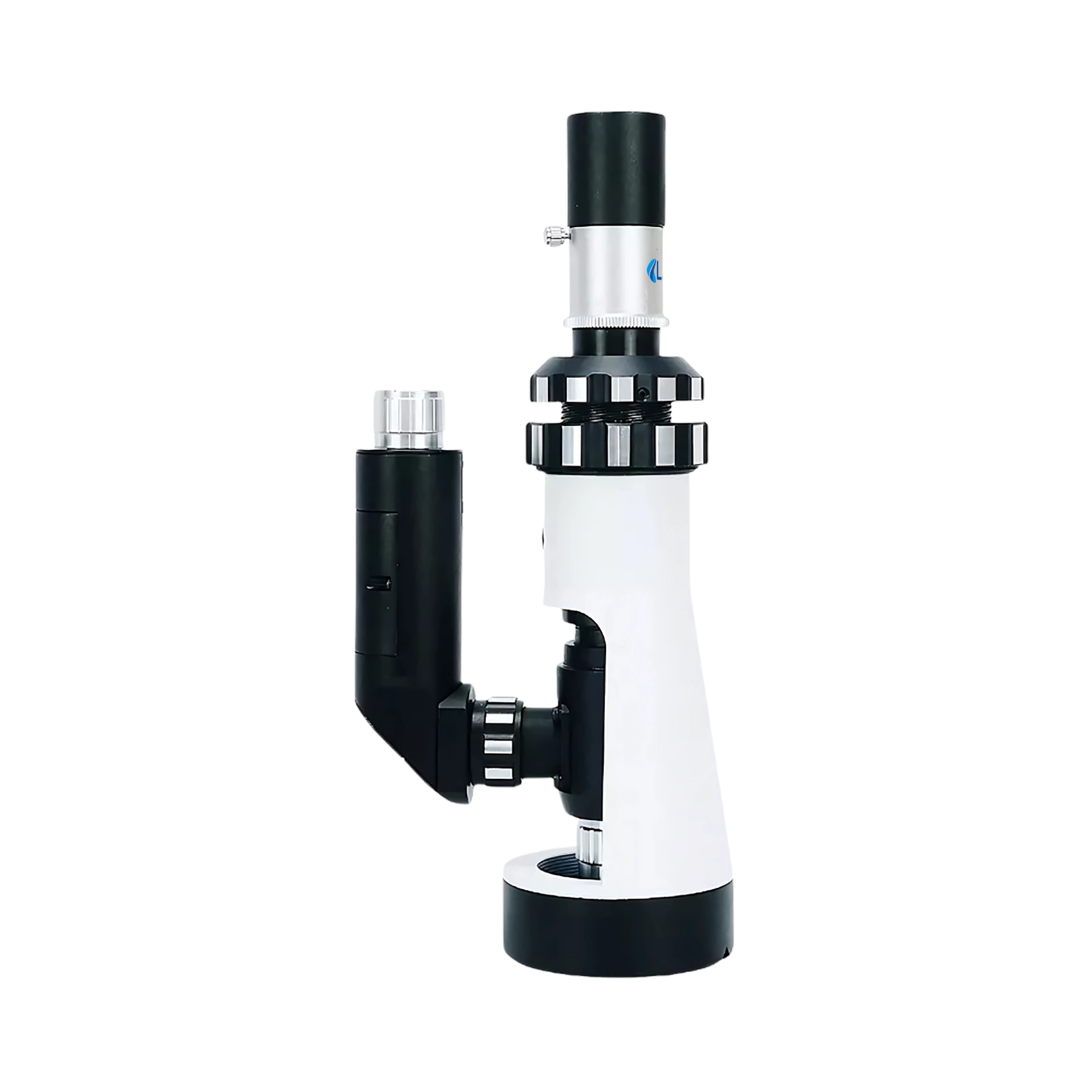

Metallurgy Microscope NMM-200 offers a 10× magnification eyepiece with a wide field of view of Φ18mm. It is paired with two high-quality objective lenses for detailed analysis. This unit incorporates both coarse and fine focusing handwheels for precise and easy control. It features a coaxial LED light for bright and uniform vertical illumination. Our microscope is capable of operating continuously for up to 48 hours.
$1,763.00
Specifications
| Eyepiece | Plan eyepiece 10× Φ18mm |
| Objective | Achromatic objective: 10× NA 0.25 WD 7.3mm Metallographic objective 40× NA 0.65 WD 0.5mm |
| Magnification | 100×, 400× |
| Focusing range | Coarse handwheel focusing range: 23 mm Fine handwheel focusing range: 1.5mm |
| Light source | LED coaxial light source |
| Power supply | AC220V, 50/60Hz |
| Net weight | 3kg |
| Gross weight | 4.5kg |
Features
Applications
Ask Expert
FAQ for Metallurgy Microscope NMM-200
1: How clear is the image quality?
The image quality is excellent. The microscope uses a 10× plan eyepiece with a wide ?18mm field of view and high-quality achromatic objectives to deliver clear, distortion-free images, even at higher magnifications.
2: What is the advantage of the 360° rotating workbench?
The rotating magnetic stage allows for easy positioning and viewing of samples from multiple angles without manually moving the microscope, which saves time and improves accuracy.
3: Is the Metallurgy Microscope NMM-200 suitable for long working sessions?
Yes. It is built for endurance, with a coaxial LED light source that supports continuous operation for up to 48 hours without overheating—perfect for long lab work or field use.
4: How do I clean the Metallurgy Microscope NMM-200 lenses?
Use a soft, lint-free lens cloth or lens paper with a small amount of lens cleaning solution. Avoid using regular tissue or fabric, as they may scratch the optical surfaces. Always clean gently in circular motions.
5: How durable is this Metallurgy Microscope NMM-200?
It is built to last. It comes in a sturdy aluminum case and features a solid, stable construction that can withstand frequent transport and long-term use.
Labnics Metallurgy Microscopes deliver clear and high-contrast images at various magnifications. They offer brightfield and darkfield viewing for versatile material inspection. These units feature an adjustable mechanical stage for smooth sample movement. They come with high-resolution digital cameras for detailed image capture and analysis. Our microscopes use high-intensity LED or halogen-reflected illumination for enhanced surface visibility.
