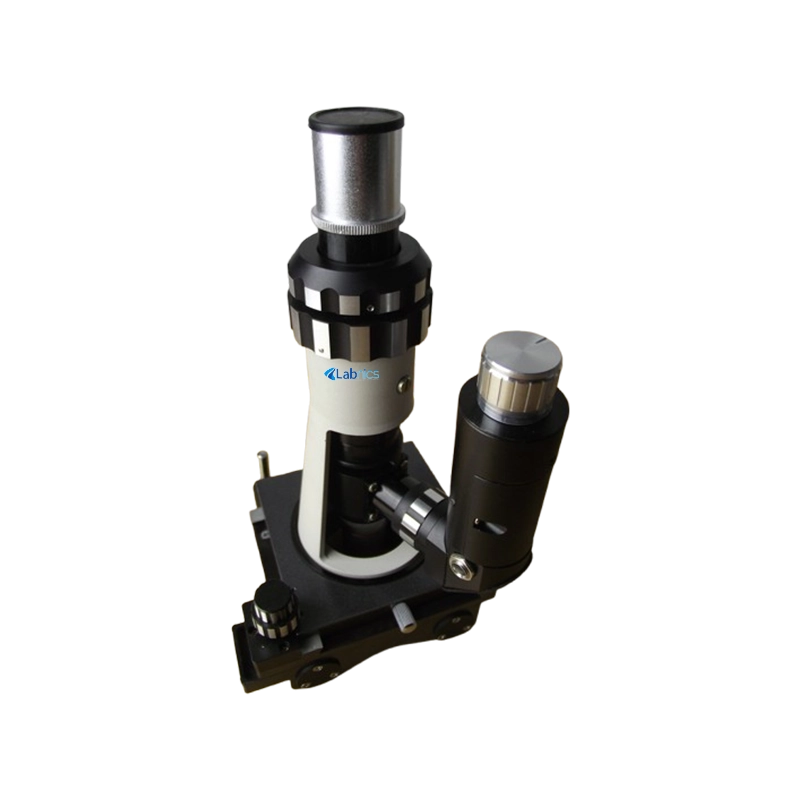

Metallurgy Microscope NMM-101 offers total magnification of 40X, 50X, 100X, 125X, 400X, 500X through various combinations of objective lenses and eyepieces. It features a 160mm mechanical tube length and a 25mm focusing range for clear observation of samples. Equipped with a vertical LED light source for improved illumination of specimens. Our portable microscope is powered by a 3.6V battery, ensuring reliable operation in field settings.
$1,425.00
Specifications
| Objective | Achromatic: 10X/0.25 N.A./7.3mm Plan: 40X/0.65 N.A./0.5mm |
| Eyepiece | 10X/Φ18mm 12.5X/Φ13mm |
| Total Magnification | 40X, 50X, 100X, 125X, 400X, 500X |
| Mechanical Tube Length | 160mm |
| Focusing Range | 25mm |
| Power Voltage | 3.6V |
| Dimensions (H×W×T) | 230 × 110 × 70 mm |
| Packing Dimensions | 400 × 250 × 350 mm |
| Net Weight | 750 gms |
| Gross Weight | 4 kg |
Features
Applications
Standard Accessories
Eyepiece: 10X, 12.5XOptional Accessories
Magnetic stageAsk Expert
Labnics Metallurgy Microscopes deliver clear and high-contrast images at various magnifications. They offer brightfield and darkfield viewing for versatile material inspection. These units feature an adjustable mechanical stage for smooth sample movement. They come with high-resolution digital cameras for detailed image capture and analysis. Our microscopes use high-intensity LED or halogen-reflected illumination for enhanced surface visibility.
