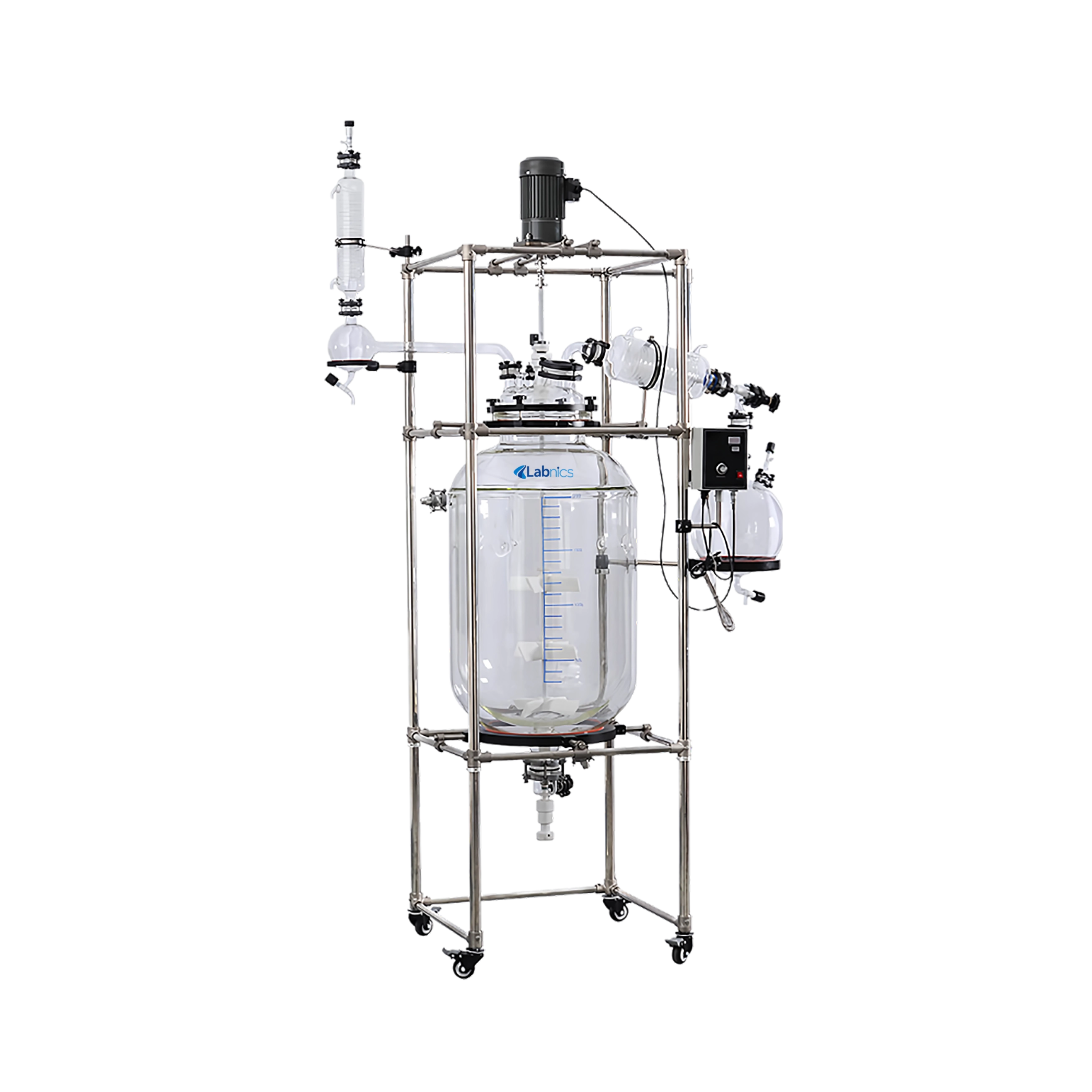

Jacketed Glass Reactor NJGR-105 provides a capacity of 200 L with a tank pressure range of -0.1 to 0.1 MPa. It features a frequency controller for precise stirring speed adjustment. This reactor is constructed with high borosilicate glass for strong chemical resistance. It is compatible with a vacuum pump for efficient pressure control. Our jacketed glass reactor includes a thermal insulation jacket for enhanced energy efficiency.
FAQ for Jacketed Glass Reactor NJGR-105
1: How does the jacketed interlayer of the Jacketed Glass Reactor work?
The interlayer of the Jacketed Glass Reactor can be heated or cooled using cold and heat sources, such as coolant, water, or silicone oil, helping to regulate the reaction temperature and ensure optimal conditions.
2: How is the Jacketed Glass Reactor NJGR-105 insulated?
The Jacketed Glass Reactor can be equipped with an insulation jacket, which helps reduce heat loss and improve reaction efficiency by providing thermal insulation to the glass vessel body.
3: How is the Jacketed Glass Reactor assembled and connected?
The Jacketed Glass Reactor includes a triangular quick flange clamp system, making it easy to securely connect components such as glass fittings, valves, and other accessories.
4: Can the Jacketed Glass Reactor NJGR-105 be integrated into a customized PLC setup?
Yes, the Jacketed Glass Reactor supports customization with a PLC control system, enabling automated and precise control for more advanced experimental setups.
5: How do I ensure the Jacketed Glass Reactor operates efficiently?
To ensure efficient operation of the Jacketed Glass Reactor, use the correct stirring paddle, maintain optimal temperature control, secure all connections, and regularly inspect the sealing system and glass components.
6: How does temperature regulation work in this Jacketed Glass Reactor?
Temperature control is achieved by circulating heating or cooling fluids through the jacket surrounding the reactor vessel. This allows for consistent and even heating or cooling during reactions, which is essential for sensitive chemical processes. The system helps prevent overheating or undercooling, improving reaction reliability.
7: Is cleaning the Jacketed Glass Reactor simple?
The smooth borosilicate glass surface makes cleaning easy and prevents chemical residues from sticking. Its corrosion resistance means fewer worries about damage during maintenance. Regular cleaning helps maintain optimal performance and safety.
8: How safe is the Jacketed Glass Reactor for daily use?
Constructed from tempered borosilicate glass, the reactor is resistant to breakage and thermal shock, ensuring safety during operation. The transparent design allows continuous visual monitoring, helping detect any issues early. Overall, it is designed to offer both reliability and user safety.
9: Can the Jacketed Glass Reactor handle aggressive chemicals safely?
Yes, the borosilicate glass is highly resistant to most acids, bases, and solvents, making it suitable for handling aggressive chemicals. This chemical resistance helps prevent contamination and maintains the purity of your reactions. It ensures safe use with a wide range of substances.
