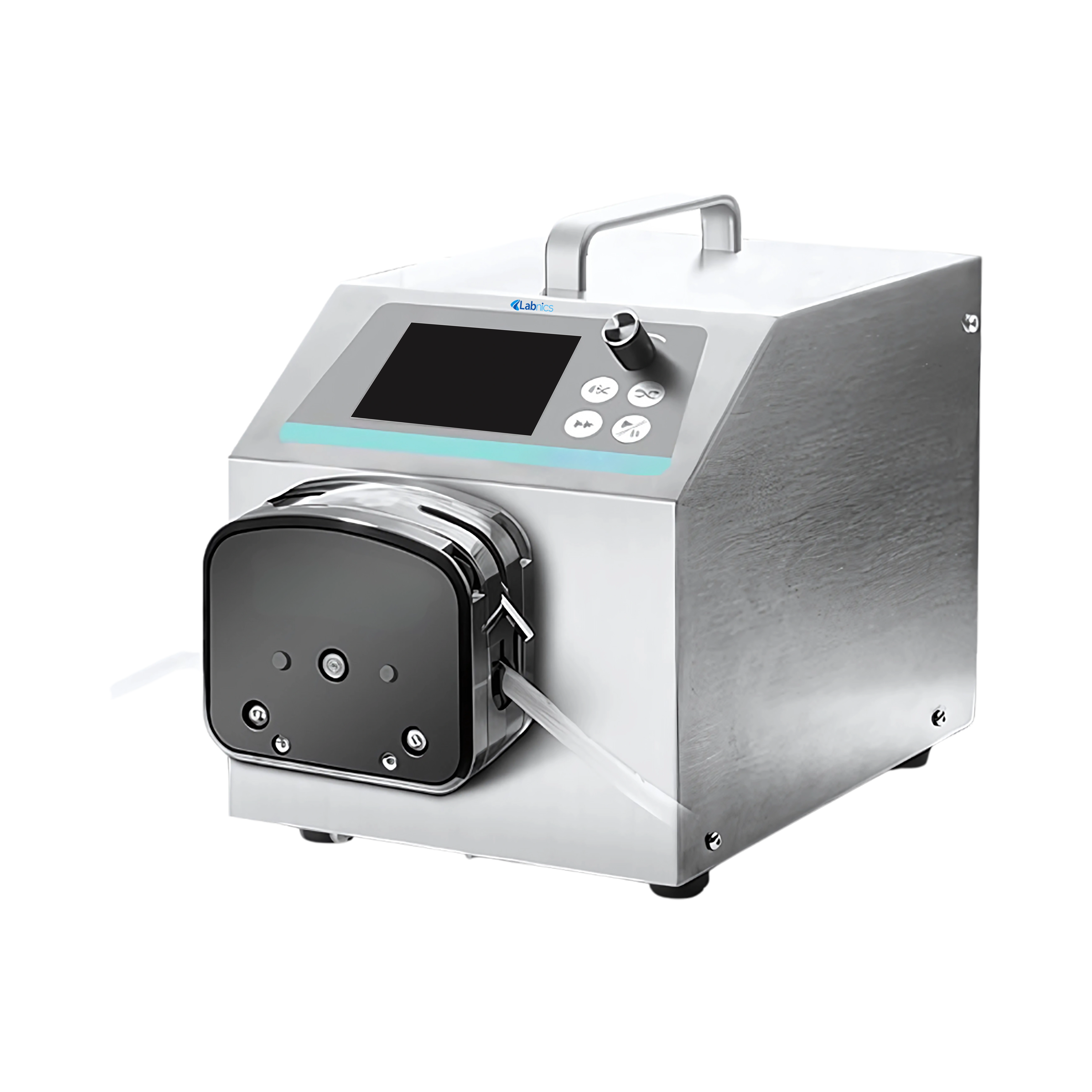

Intelligent Flow Peristaltic Pump NIFPP-701

Intelligent Flow Peristaltic Pump NIFPP-701 operates across a speed range of 0.1 to 600 RPM with a speed resolution of 0.1 RPM. It has a metal lifting handle for a comfortable grip and easy portability. The unit offers automatic calibration for enhanced accuracy and ease of use. It features a strong anti-interference system for stable and reliable operation. This peristaltic pump is built with a stainless steel housing for durability and corrosion resistance.

---

$3,288.00

Buy Now Catalog

Specifications

Flow Range	0.211 to 3600 mL/min
Flow Accuracy	<±0.5%
Speed Range	0.1 to 600 RPM
Speed Resolution	0.1 RPM
Testing Time Range	0.1s to 9999h
Motor type	Closed-loop stepper motor
Display	3.2 inch
Temperature Range	0 to 40°C
Relative Humidity	<80%
Control Method	Mechanical keypad + Rotary encoded switch
Copy Numbers	1 to 9999 times
Back Suction Angle	0 to 360°
External Control	0 to 5 V, 0 to 10 V, 4 to 20 mA (option)
Output Interface	Output motor working status (open-collector output)
Communication Interface	RS232/RS485 support MODBUS protocol (RTU mode)
Start/Stop, Direction Signal	Passive switch input (e.g., foot pedal)
Active Switch Signal	Default 5V to 24V active input
Power Consumption	<80 W
Power Supply	AC 220V±10%, 50Hz/60Hz
Dimension	223 × 152 × 230 mm
Weight	5.06 kg

Features

• Colour LCD touchscreen
• Timing distribution function
• High torque design
• Power-down memory
• External input port

Applications

• Intelligent Flow Peristaltic Pump NIFPP-701 is widely used in pharmaceutical production, chemical processing, and industrial fluid transfer applications requiring precise and reliable flow control.

Standard Accessories

Silicone tubing (2 meters)

Operation manual × 1 pc

Power cable × 1 pc

Tubing clamps × 1 set
