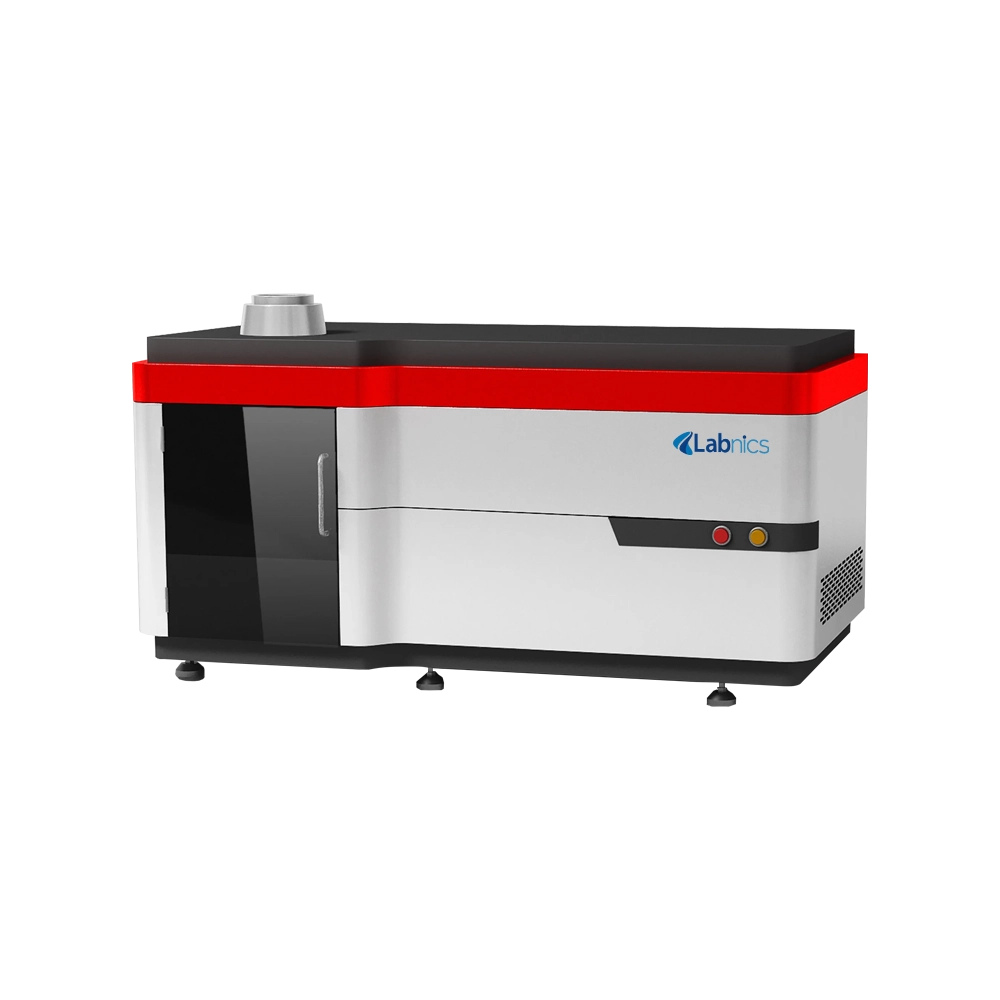

Inductively Coupled Plasma Emission Spectrometer NICP-101 provides a detection limit between 1 ppb and 10 ppb, ensuring accurate analysis of trace elements. It features a spectral line range of 165 nm to 950 nm for comprehensive evaluation. The light chamber includes an independent gas path for filling with nitrogen or argon for optimal performance. Our unit incorporates a refined optical design with aspherical components to enhance imaging quality.
| Element Detection Limit |
1ppb to 10ppb for most elements |
| Repeatability |
RSD < 1% |
| Stability |
RSD < 1.5% over 2 hours |
| Solid Content Measurement Range |
0.001% to 70% |
| Liquid Content Measurement Range |
0.01ppm to several thousand ppm |
| Operating temperature |
15℃ to 30℃ |
| Operating humidity |
≤ 70% |
| Atmospheric pressure |
86 to 106 kPa |
| Relative humidity during storage and transportation |
≤ 85% |
| Storage and transportation temperature |
5℃ to 40℃ |
| Optical System |
Medium-step two-dimensional spectroscopic optical system
Multi-point filling technology of the light chamber
Radial and axial observation
Spectral line range: 165nm to 950nm
Focal length: 400mm
Temperature control: 38±0.1℃ (Adjustable) |
| Stray light |
Equivalent background concentration of 10000μg/ml Ca solution at As189.042nm is < 2 μg/ml |
| Prism |
Ultra-pure SiO2 material |
| Grating |
Echelle grating
Size: 100mm × 50mm |
| Detector |
Large-area CCD
Number of pixels: 1024 ×1024
Pixel area: 24µm × 24µm
Operating temperature: < -40℃
Stabilization time: < 3 minutes
Quantization efficiency: >75%
Anti-saturation overflow |
| RF Generator |
All-solid-state, automatic matching
Power output: 700W-1600W, continuously adjustable by 1W
Power stability: ≤0.1%
Oscillation frequency: 27.12MHz
Frequency stability: ≤0.01%
Electromagnetic field leakage radiation intensity: ˂0.5 V/m |
| Sample Introduction System |
Optimized for organic solvents, high-salt/complex matrix, and HF-containing samples
Integrated torch, easy to maintain, three concentric quartz torch with 20mm outer diameter
Torch Coil: 3 turns
Atomizer: concentric atomizer or parallel channel atomizer, outer diameter 6mm, optional standard atomizer, high salt atomizer, hydrofluoric acid atomizer |
| Sample Introduction System Components |
Peristaltic pump: 4 channels, 12 rollers, continuously adjustable speed
Spray chamber: cyclonic spray chamber, optional double-cylinder spray chamber, and HF-resistant spray chamber |
| Argon Gas Consumption |
8L/min to 18L/min |
| Cooling Gas Flow Rate |
0.00L/min to 20.00L/min, accuracy 0.01L/min |
| Auxiliary Gas Flow Rate |
0.00L/min to 2.00L/min, accuracy 0.01L/min |
| Carrier Gas Flow Rate |
0.00L/min to 2.00L/min, accuracy 0.01L/min |
| Waterway System |
Two-inlet, six-outlet integrated feedback diverter system |
| Control System |
Multi-window software with over 70,000 spectral lines
Analysis methods: Standard curve and standard addition method
Data processing methods: Indoor blank, internal standard and interference correction methods |
| Certifications |
ISO 9001, ISO 14001, ISO 45001, FCC, EU CE, EU RoHS, US FDA |
| Power supply |
220±22VAC 50±1Hz |
| Dimensions (L × W × H) |
1270 × 720 × 850 mm |
| Packaging Dimensions (L × W × H) |
1500 × 900 × 1060 mm |
| Net Weight |
192 kg |
| Gross Weight |
250 kg |
