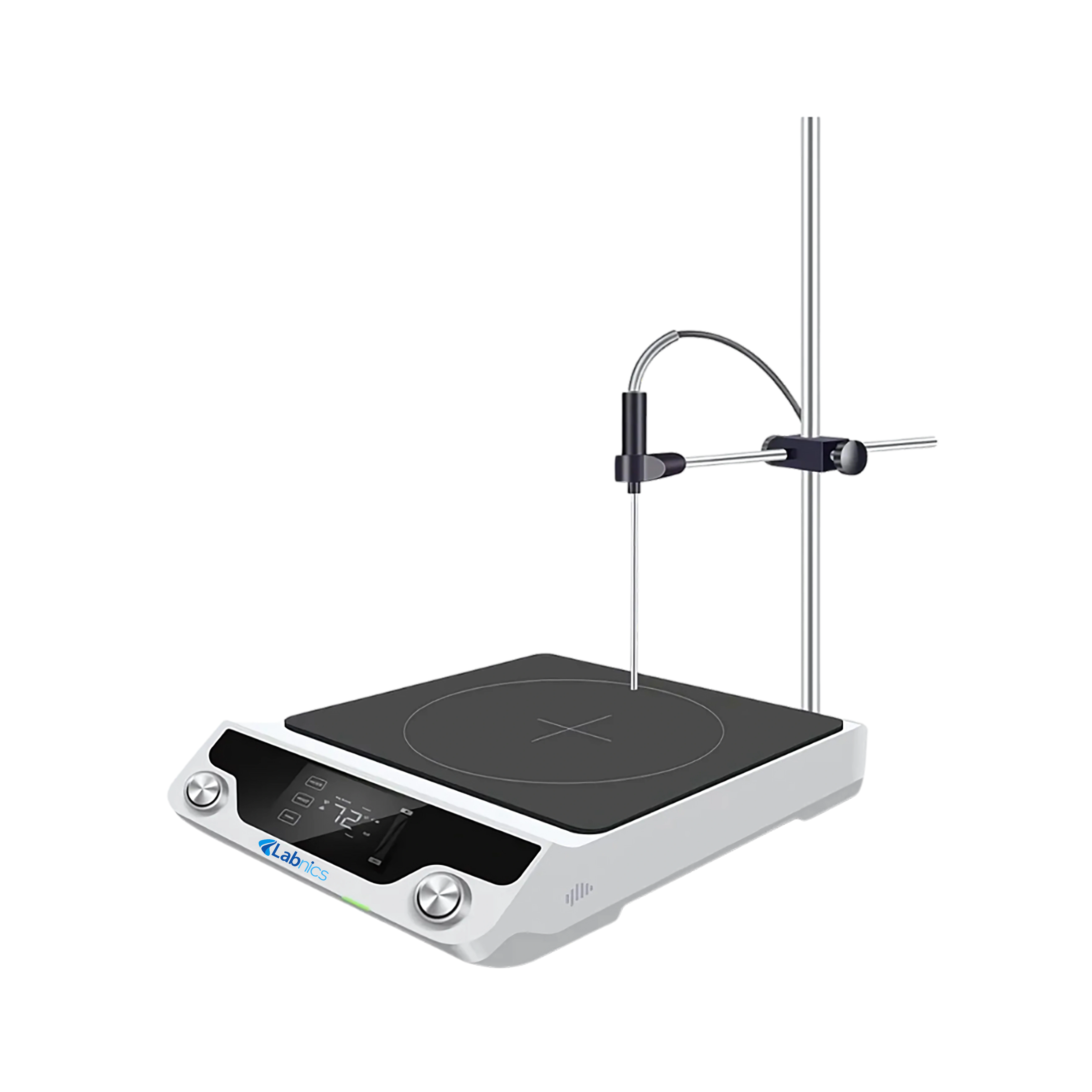

Hotplate Magnetic Stirrer NHMS-501 offers a temperature range from RT to 380°C with stirrer speed accuracy of ±10 RPM. It is equipped with a direct PT sensor for accurate temperature monitoring and control. This magnetic stirrer features a die-cast aluminium body for enhanced durability. It supports data storage for efficient recording and retrieval of operational parameters. Our unit includes an LCD screen for clear and convenient display of settings and status.
$1,150.00
Specifications
| Stirrer Capacity | 5 L |
| Stirrer Speed Range | 200 to 1600 RPM |
| Stirrer Speed Accuracy | ±10 RPM |
| Timer Range | 1 to 99 hours and 59 minutes |
| Temperature Range | RT to 380°C |
| Heating Method | Stretch out heating |
| Motor Type | Brushless DC motor |
| Upper and Lower Shell | Cast aluminium |
| Working Disc Material | Ceramic spraying |
| Working Disc Area | 150 × 150 mm |
| Power Consumption | 450 W, 550 W |
| Power Supply | AC220V 50Hz |
Features
Applications
Ask Expert
FAQ for Hotplate Magnetic Stirrer NHMS-501
1: What safety features are built into the Hotplate Magnetic Stirrer NHMS-501?
Our Hotplate Magnetic Stirrer NHMS-501 includes reliable heat regulation through its PT sensor and a durable structure that helps prevent overheating and ensures safe operation.
2: What materials are used in the construction of the Hotplate Magnetic Stirrer NHMS-501?
The Hotplate Magnetic Stirrer NHMS-501 is built with a die-cast aluminium body and a ceramic-sprayed working disc, providing corrosion resistance and thermal efficiency.
3: Can I store experimental data using the Hotplate Magnetic Stirrer NHMS-501?
The Hotplate Magnetic Stirrer NHMS-501 supports data storage, allowing users to record and retrieve operational settings easily for repeat experiments and documentation.
4: What maintenance steps are recommended for the Hotplate Magnetic Stirrer NHMS-501?
To maintain the Hotplate Magnetic Stirrer NHMS-501, clean the surface regularly, prevent chemical spills, and store it in a dry area. Its brushless DC motor reduces maintenance needs but should still be checked periodically.
5: How do I troubleshoot inconsistent stirring with the Hotplate Magnetic Stirrer NHMS-501?
If the Hotplate Magnetic Stirrer NHMS-501 shows inconsistent performance, check that the vessel is centered, the load is within the 5 L capacity, and the unit is placed on a stable, level surface.
