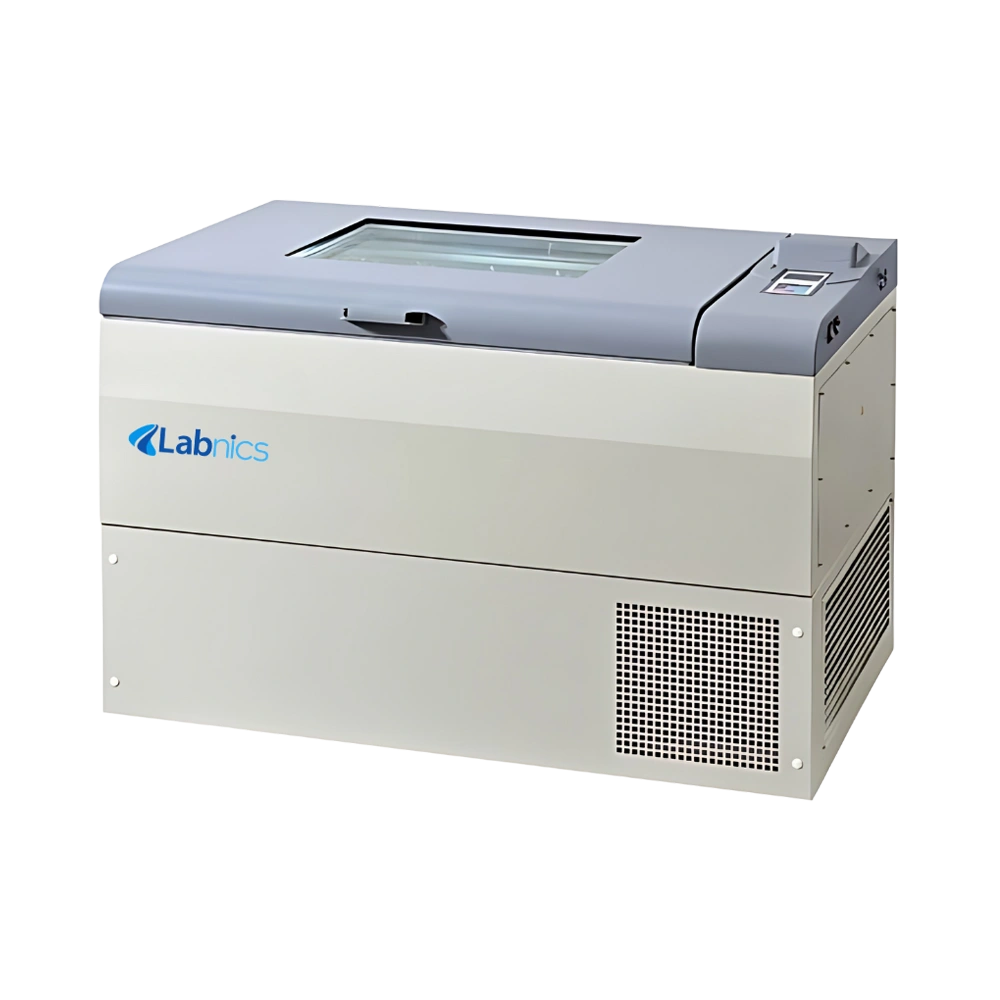

Horizontal Shaker Incubator NHSI-202 offers a spacious 200-liter capacity with an internal height of 295 mm. It provides a wide illuminance range with monochromatic white light adjustable from 0 to 12000 lx. This unit delivers precise environmental control with a stable temperature range of 4 to 60°C. It incorporates an LED lighting system for energy-saving illumination. Our incubator comes with a hollow double-layer tempered glass door for insulation and clear observation.
| Door opening method |
Door upward |
| Capacity |
200 liters |
| Internal usable height |
295 mm |
| No. of trays |
1 |
| Maximum loading capacity |
2000ml×12
1000ml×18
500ml×28
250ml×43 |
| Illuminance |
Monochromatic white light 0 to 12000lx |
| Temperature range |
4 to 60°C (Ambient temperature-15°C, minimum 4°C) |
| Temperature accuracy |
±0.1°C |
| Temperature uniformity |
≤±1.0°C at 37°C |
| Ambient temperature range |
5 to 35°C |
| Curve editing |
5-group/30-segment curve editing |
| Rotation way |
Rotary/ reciprocating switchable |
| Rotation speed |
30 to 300 rpm |
| Rotation accuracy |
±1 rpm |
| Throw |
25mm/50mm |
| Timing range |
0 to 999.59H |
| Display |
7-inch color touch screen |
| Control |
P.I.D microcomputer |
| Circulation |
Forced circulation convection |
| Drive mode |
Single-axis balanced drive |
| Tray material/Flask clamp/Chamber material |
Stainless steel type 304 |
| Illumination/UV lamp |
8W/8W |
| Bearings |
Original imported double row bearings |
| Compressor |
Variable frequency compressor |
| Clamp types |
Stainless steel flask clamp, plastic clamp, spring, test tube rack, sticky plate, ELISA plate, etc |
| Heating power |
800W |
| Cooling power |
334W |
| Motor power |
130W (High-quality servo motor) |
| Power supply |
220V±10%, 50/60Hz |
| Tray size |
890×480mm |
| Internal dimension |
970×550×375mm |
| External dimension |
1250×650×1060mm |
| Net weight |
216 kg |
FAQ for Horizontal Shaker Incubator NHSI-202
1: Is the Horizontal Shaker Incubator NHSI-202 designed with safety features?
Our Horizontal Shaker Incubator is equipped with a leakage and overcurrent protection system that cuts power immediately in case of abnormalities. It also has a sensitive speed monitoring system to stop operation if shaking becomes unstable, protecting both the user and the samples.
2: How easy is it to operate the Horizontal Shaker Incubator NHSI-202?
Our Horizontal Shaker Incubator includes a large 7-inch color touch screen that displays multiple parameters in real time and allows simple interaction even while wearing gloves. This user-friendly interface makes monitoring and adjusting settings highly convenient.
3: How does this Horizontal Shaker Incubator ensure uniform results?
Our Horizontal Shaker Incubator uses a forced air circulation system and a hollow double-layer tempered glass door to maintain consistent internal conditions. It also provides stable shaking through a single-axis balanced drive, ensuring even mixing and uniform sample growth.
4: Is this Horizontal Shaker Incubator suitable for long-duration experiments?
Our Horizontal Shaker Incubator supports a timing range of up to 999.59 hours, making it ideal for extended experimental runs. This allows you to conduct long-term studies without interruptions or frequent adjustments.
5: Does the glass door need special care?
Our Horizontal Shaker Incubator is built with a hollow double-layer tempered glass door that is durable but should still be cleaned with a soft cloth and non-abrasive cleaner. Regular cleaning helps maintain clear visibility and ensures proper insulation.
6: What is the purpose of the reservation function and permission levels in the Horizontal Shaker Incubator?
The reservation function lets users schedule incubation cycles in advance, optimizing lab time and workflow. Multi-level permission access adds a layer of operational security by restricting control based on user roles, preventing unauthorized adjustments and protecting experiment integrity.
7: What advantages do the high-quality compressor and DC motor provide in the Horizontal Shaker Incubator?
The integrated high-quality compressor ensures efficient temperature regulation, while the DC motor delivers stable and quiet shaking performance. These components work together to maintain precise incubation conditions, reduce noise in the lab, and extend the overall lifespan of the equipment.
8: How is data stored and exported from the Horizontal Shaker Incubator?
This incubator can store up to one million data records internally and offers a USB storage function for easy data export. This feature allows users to archive experiment logs, transfer data for analysis, or meet documentation requirements without disrupting operations.
9: How should I maintain the Horizontal Shaker Incubator for optimal performance?
Regularly clean the interior chamber, shaking platform, and tempered glass doors to prevent contamination. Inspect mechanical components such as the motor and compressor for dust accumulation, and check seals and locks for signs of wear to ensure proper sealing of the chamber. Additionally, avoid overloading the shaker to prevent undue strain on mechanical components and ensure reliable and consistent operation.
