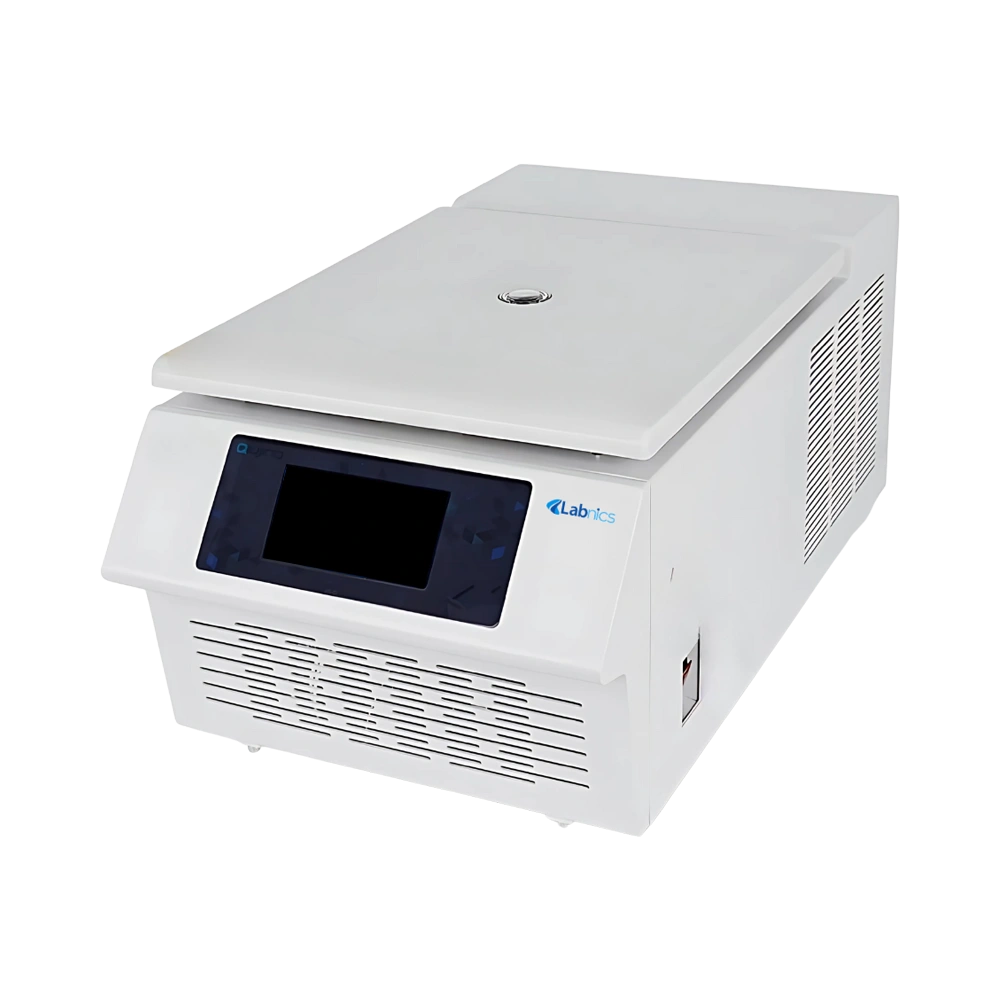

High Speed Refrigerated Centrifuge NHRC-701

Name: High Speed Refrigerated Centrifuge NHRC-701
Brand: Fison
SKU: NHRC-701
Rating: 4.9 (656 reviews)

High Speed Refrigerated Centrifuge NHRC-701 provides a temperature range between -20°C and 40°C with ±1.0°C accuracy. It offers a 5-inch touch screen for precise and intuitive control. This unit has a durable steel structure that ensures long-term reliable performance. It features an automatic rotor recognition system to enhance user safety. Our centrifuge is equipped with an eco-friendly refrigerant for efficient and safe cooling operation

$4,425.00

Catalog

Specifications

Maximum Speed	16500 RPM
Maximum RCF	22380 ×g
Maximum Capacity	6 × 50 ml
Speed Accuracy	±10 RPM/min
Timing Range	1 s to 99 min 59 s / 9 h 59 min
Temperature Setting Range	-20°C to 40°C
Temperature Accuracy	±1.0°C
Noise Level	≤65 dB (A)
Power Consumption	1200 W
Power Supply	AC 220 ± 22 V, 50 Hz, 16 A
Dimensions	620 × 327 × 270 mm
Weight	40 kg

Features

High-strength stamped frame
Unique cast nylon rotor
Fine sand spray surface
Rapid precooling
Low noise operation

Applications

High Speed Refrigerated Centrifuge NHRC-701 is used for rapid sample separation in molecular biology, diagnostics, and biochemical research. It supports applications like plasmid extraction, protein purification, and bacterial isolation with reliable cooling and speed.

Rotors Selection

Rotor No.	Maximum Capacity	Maximum Speed (RPM)	Maximum RCF (× g)
Angle Rotor 1	12 × 1.5/2 ml	16500 RPM	21610 ×g
Angle Rotor 2	24 × 1.5/2 ml	15000 RPM	21890 ×g
Angle Rotor 3	36 × 1.5/2 ml	15000 RPM	22380 ×g
Angle Rotor 4	18 × 5 ml	15000 RPM	21630 ×g
Angle Rotor 5	12 × 10 ml	13000 RPM	19690 ×g
Angle Rotor 6	12 × 15 ml	12000 RPM	15450 ×g
Angle Rotor 7	6 × 50 ml	12000 RPM	16980 ×g

Ask Expert

FAQ for High Speed Refrigerated Centrifuge NHRC-701

1: How does the High Speed Refrigerated Centrifuge NHRC-701 ensure safe operation during high-speed runs?

Equipped with an automatic rotor recognition system, the High Speed Refrigerated Centrifuge NHRC-701 automatically adjusts speed settings based on the rotor type, helping prevent overspeed errors and ensuring user safety.

2: What are the benefits of the touch screen interface on the High Speed Refrigerated Centrifuge NHRC-701?

Our High Speed Refrigerated Centrifuge NHRC-701 features a 5-inch intuitive touch screen that allows easy parameter setting, real-time monitoring, and quick program access for efficient and user-friendly operation.

3: What should I do if the High Speed Refrigerated Centrifuge NHRC-701 displays a speed error?

If the High Speed Refrigerated Centrifuge NHRC-701 shows a speed error, ensure the rotor is correctly installed and balanced. Restart the unit, check compatibility, and if the issue continues, consult technical support.

4: How can I maintain the High Speed Refrigerated Centrifuge NHRC-701 for reliable long-term use?

To ensure consistent performance, clean the chamber regularly, check rotor integrity, avoid overloading, and calibrate the High Speed Refrigerated Centrifuge NHRC-701 periodically to maintain accuracy.

5: Is the High Speed Refrigerated Centrifuge NHRC-701 suitable for noise-sensitive labs?

Yes, the High Speed Refrigerated Centrifuge NHRC-701 is designed for low-noise operation, maintaining sound levels at or below 65 dB, making it well-suited for quiet and controlled laboratory environments.
