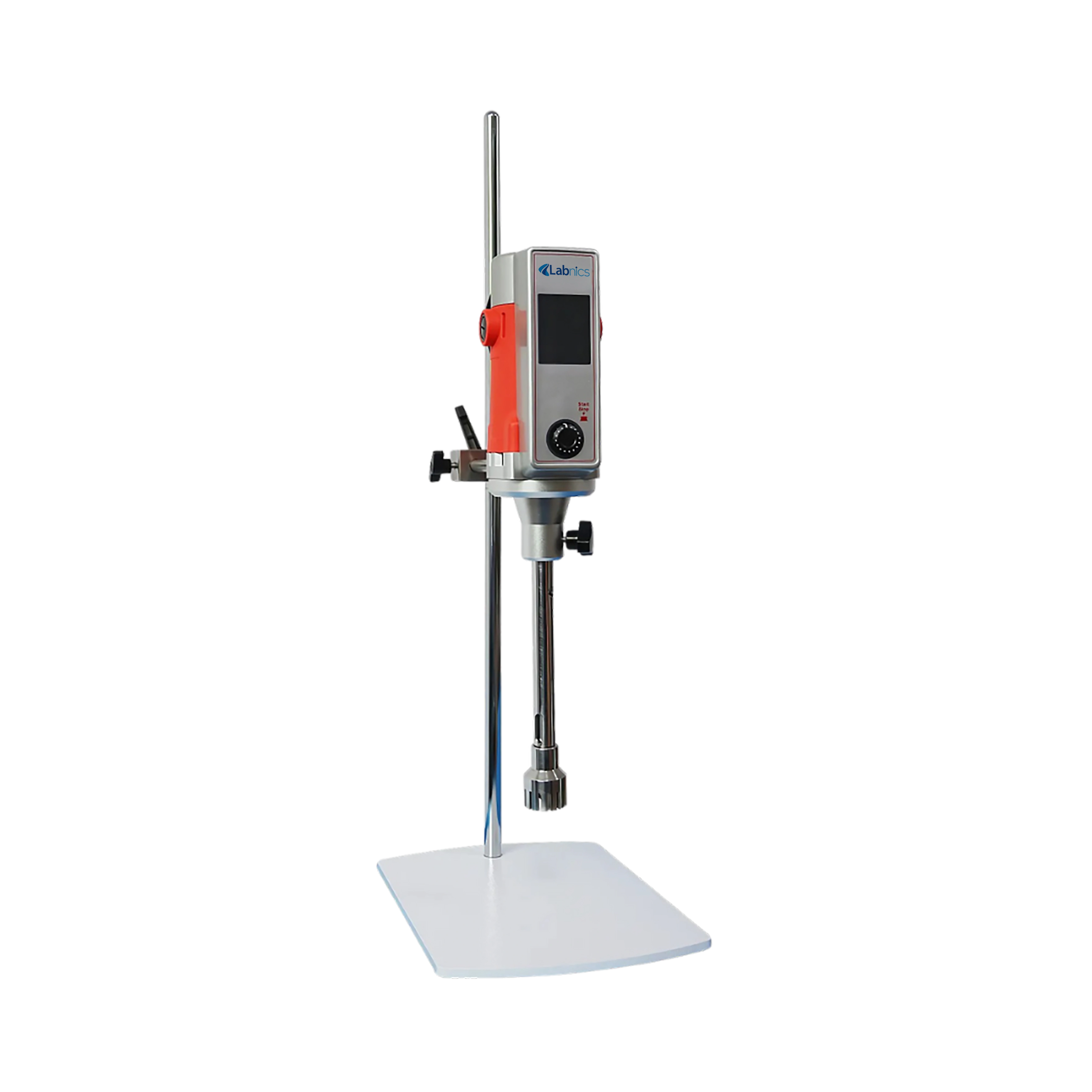

High Shear Homogenizer NHISH-102

High Shear Homogenizer NHISH-102 features a 60 L capacity with a speed range of 1000 to 13000 RPM. This unit has a compact design that saves space and ensures convenient handling. It offers easy maintenance for smooth and efficient use. Our homogenizer allows continuous operation for uninterrupted processing. It provides adjustable speed control for precise performance and flexibility.

---

$2,975.00

Buy Now Catalog

Specifications

Capacity	60 L
Speed Range	1000 to 13000 RPM
Nominal Torque	70 CN·cm
Viscosity Maximum	8000 mPa·s
Standard Stator Options	5 mm / 20 mm / 50 mm
Ambient Temperature	≤ 40 °C
Head Material	SS304
Head Diameter	90 mm
Throughput (H₂O)	800 to 60000 ml
Power Input	1400 W
Power Output	800 W
Power Supply	AC 220V, 50/60 Hz

Features

• High-pressure processing
• User-friendly design
• Overload protection system
• Stainless steel head
• Digital speed display

Applications

• Our High Shear Homogenizer is used in laboratory settings of food, pharmaceutical, and cosmetic industries to prepare stable emulsions such as lotions, creams, and sauces for research, product development, and quality control.

Standard Accessories

Beam × 1 pc

Supporting and fixing frame × 1 pc

Supporting stand × 2 pc

Brusher (spare) × 1 pc

Column wrench × 1 pc

Stator (5 mm and 50 mm) × 1 pc
