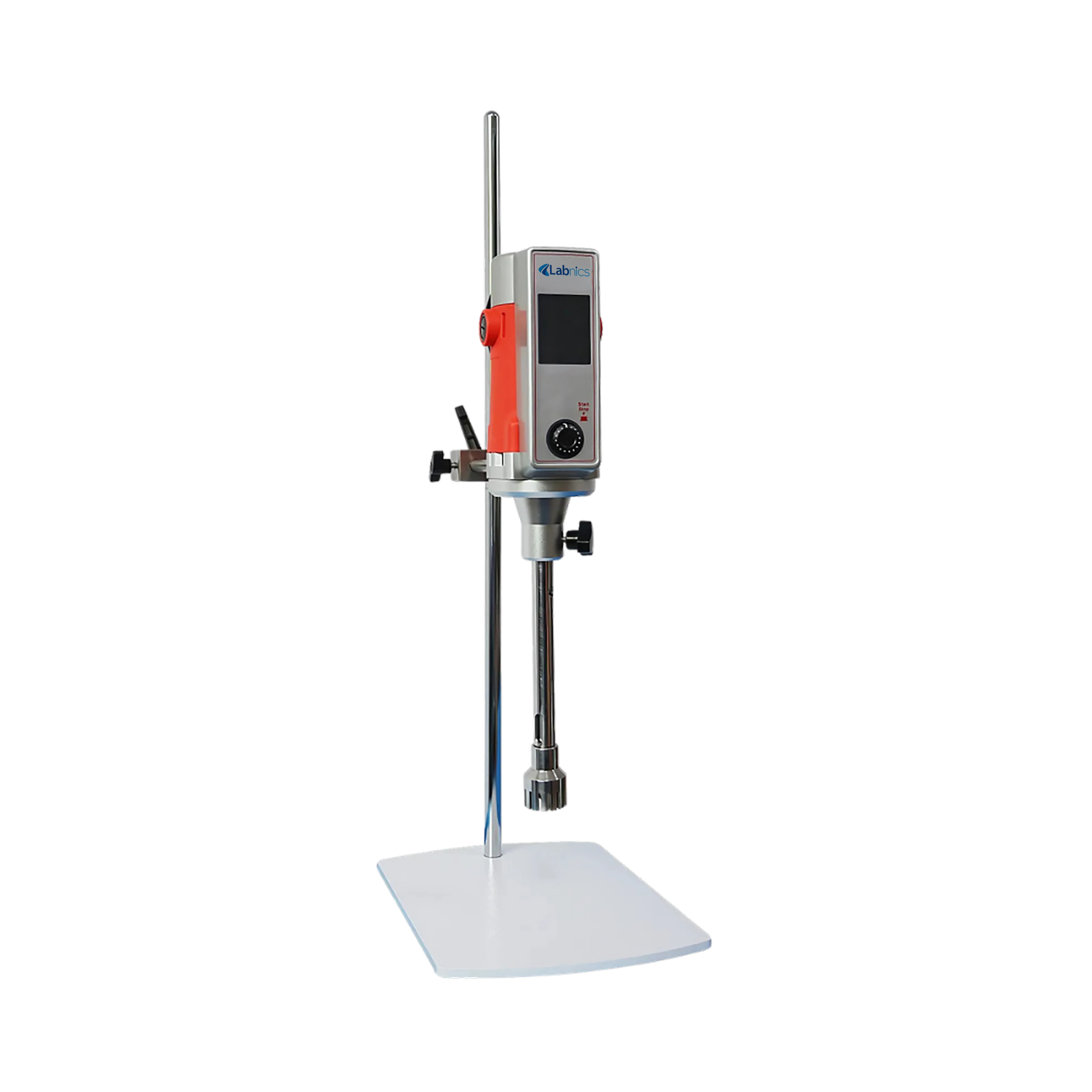

High Shear Homogenizer NHISH-101

High Shear Homogenizer NHISH-101 comes with a capacity of 40 L and a speed range from 1000 to 14000 RPM. It has an overload protection system that ensures safe and reliable operation. Our unit is equipped with a stainless steel head for long-lasting performance. It includes a digital speed display for accurate monitoring during use. This homogenizer has a user-friendly design for easy handling and control.

---

$2,575.00

Buy Now Catalog

Specifications

Capacity	40 L
Speed Range	1000 to 14000 RPM
Nominal Torque	35 N·cm
Viscosity Maximum	8000 mPa·s
Standard Stator Options	5 mm / 20 mm / 50 mm
Ambient Temperature	≤ 40 °C
Head Material	SS304
Head Diameter	70 mm
Throughput (H₂O)	500 to 40000 ml
Power Input	850 W
Power Output	500 W
Power Supply	AC 220V, 50/60 Hz

Features

• Continuous operation
• Easy maintenance
• Adjustable speed control
• Compact structure
• High-pressure processing

Applications

• High Shear Homogenizer NHISH-101 is used in laboratory settings of food, pharmaceutical, and cosmetic industries to prepare stable emulsions such as lotions, creams, and sauces for research, product development, and quality control.

Standard Accessories

Beam × 1 pc

Supporting and fixing frame × 1 pc

Supporting stand × 2 pc

Brusher (spare) × 1 pc

Column wrench × 1 pc

Stator (5 mm and 50 mm) × 1 pc
