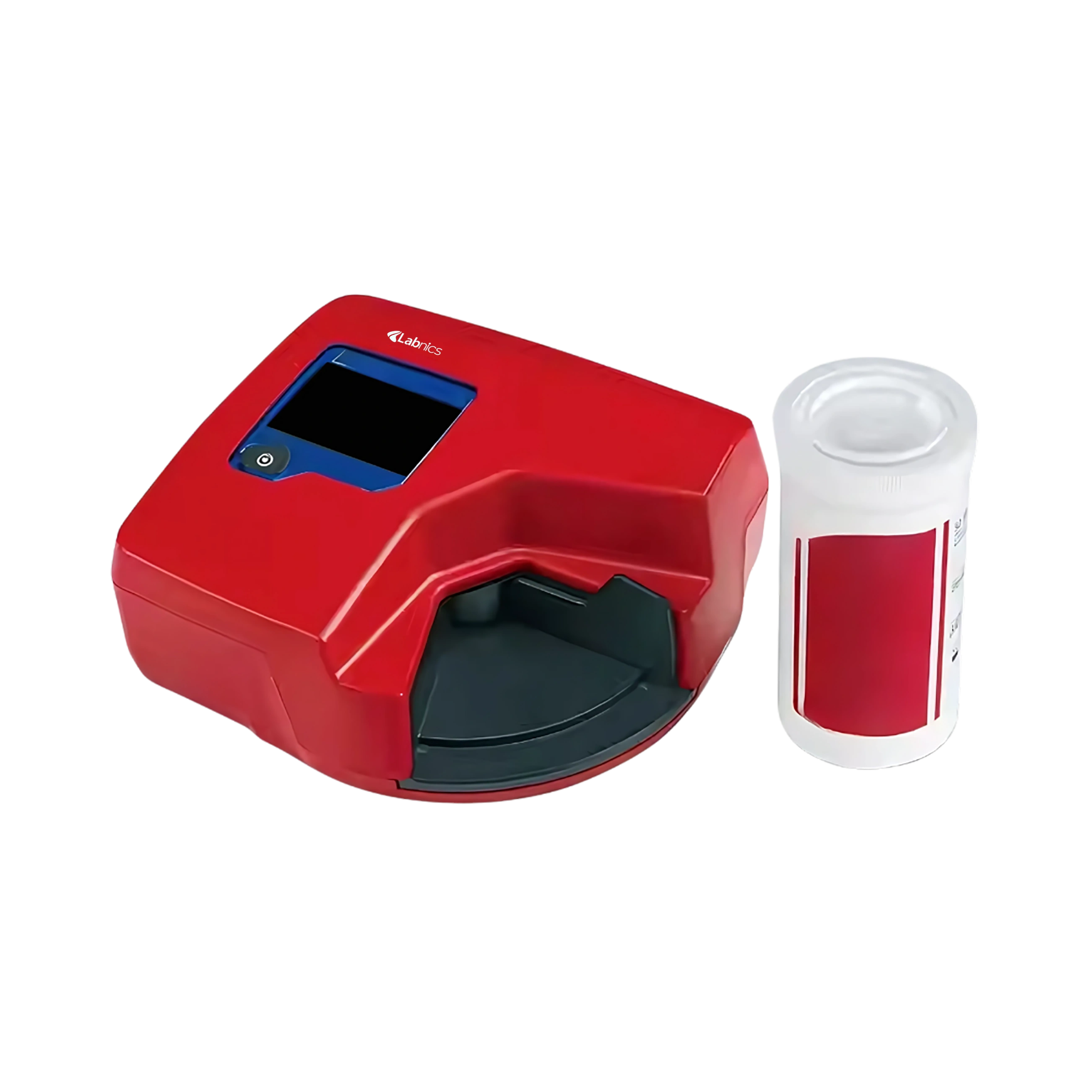

Hemoglobin Meter NHGM-100 is designed for fast results in under 3 seconds with just 10 µL of blood. It features advanced microcuvette technology for accurate and efficient testing. This unit uses blood-based liquid controls to ensure consistent accuracy. It offers patient ID integration for reliable tracking and documentation. Our hemoglobin meter includes pre-calibration for dependable testing results.
$2,475.00
Specifications
| Blood Sample Volume | 10 µL |
| Blood Sample Material | Capillary, venous, or arterial whole blood |
| Measurement Range | 0 to 25.6 g/dL (0 to 256 g/L, 0 to 15.9 mmol/L) |
| Principle | Absorbance measurement at Hb/HbO₂ isosbestic point using dual wavelengths (506 nm and 880 nm) for Hb measurement and turbidity compensation |
| Results Time | ≤ 3 seconds |
| Storage Temperature | Analyzer: 0 to 50 ºC (32 to 122 ºF); Microcuvettes (unopened): 10 to 40 ºC (50 to 104 ºF); Short-term (6 weeks): -18 to 50 ºC (0 to 122 ºF) |
| Operating Temperature | 10 to 40 ºC (50 to 104 ºF) |
| Interface | Printer |
| Quality Control | Built-in self-test; optional liquid controls available |
| Power Source | AC adapter or 4 AA batteries |
| Dimension | 140 × 70 × 160 mm |
| Weight | 500 g |
Features
Applications
Optional Accessories
Microcuvettes × 200 pcs/box
Lancet × 100 pcs/box
Ask Expert
FAQ for Hemoglobin Meter NHGM-100
1: How does the Hemoglobin Meter NHGM-100 provide accurate hemoglobin readings?
The Hemoglobin Meter NHGM-100 uses absorbance measurement at the isosbestic point of Hb and HbO? with dual wavelengths, ensuring precise readings even with sample turbidity.
2: How quickly does the Hemoglobin Meter NHGM-100 display results?
Our Hemoglobin Meter NHGM-100 delivers hemoglobin test results in three seconds or less, enabling swift and accurate clinical decisions directly at the point of care.
3: Can the Hemoglobin Meter NHGM-100 operate in high-temperature environments?
Yes, the Hemoglobin Meter NHGM-100 is designed to perform reliably in operating temperatures from 10 to 40 ºC, making it suitable for demanding climates with high heat and humidity.
4: What steps should I take if the Hemoglobin Meter NHGM-100 doesn’t turn on?
If the Hemoglobin Meter NHGM-100 doesn’t start, check the AC adapter or replace the 4 AA batteries, ensuring they are correctly installed and connections are secure.
5: How do I maintain the Hemoglobin Meter NHGM-100?
The Hemoglobin Meter NHGM-100 needs minimal upkeep; keep the cuvette holder clean, protect it from dust and moisture, and store it in a stable environment. Regularly check the batteries or power source for consistent performance.
6: What ensures accurate and consistent results with the hemoglobin meter?
The hemoglobin meter uses advanced microcuvette technology and pre-calibrated systems to deliver reliable results with minimal variation between tests. It also supports blood-based liquid controls, allowing operators to verify performance regularly and maintain consistent testing accuracy over time.
7: Is the hemoglobin meter easy to operate in routine clinical use?
Yes, the hemoglobin meter is built for simplicity and convenience. It features a digital display and a user-friendly interface, requiring minimal training for operation. This makes it especially practical for busy healthcare facilities where fast, straightforward testing is essential.
8: How does the hemoglobin meter support data tracking and documentation?
Our hemoglobin meter includes patient ID integration, enabling test results to be linked directly to individual patient records. This feature helps ensure traceability, improves documentation accuracy, and supports compliance with clinical data management protocols.
9: What should I do if the hemoglobin meter does not power on?
If the hemoglobin meter fails to turn on, first check whether the batteries are correctly installed or if the AC adapter is securely connected. If using battery power, try replacing all batteries with new ones. Ensure the device is placed on a stable surface and that the power source is functioning properly.
Labnics Hemoglobin Meters support testing with blood-based liquid controls to ensure accurate and reliable performance. They have a built-in calibration system that ensures accuracy and minimizes error. These units include a user-friendly interface for simple and efficient operation. They feature a compact and lightweight design for convenient use in various settings. Our hemoglobin meters are equipped with microcuvette technology to ensure accurate and smooth testing.
