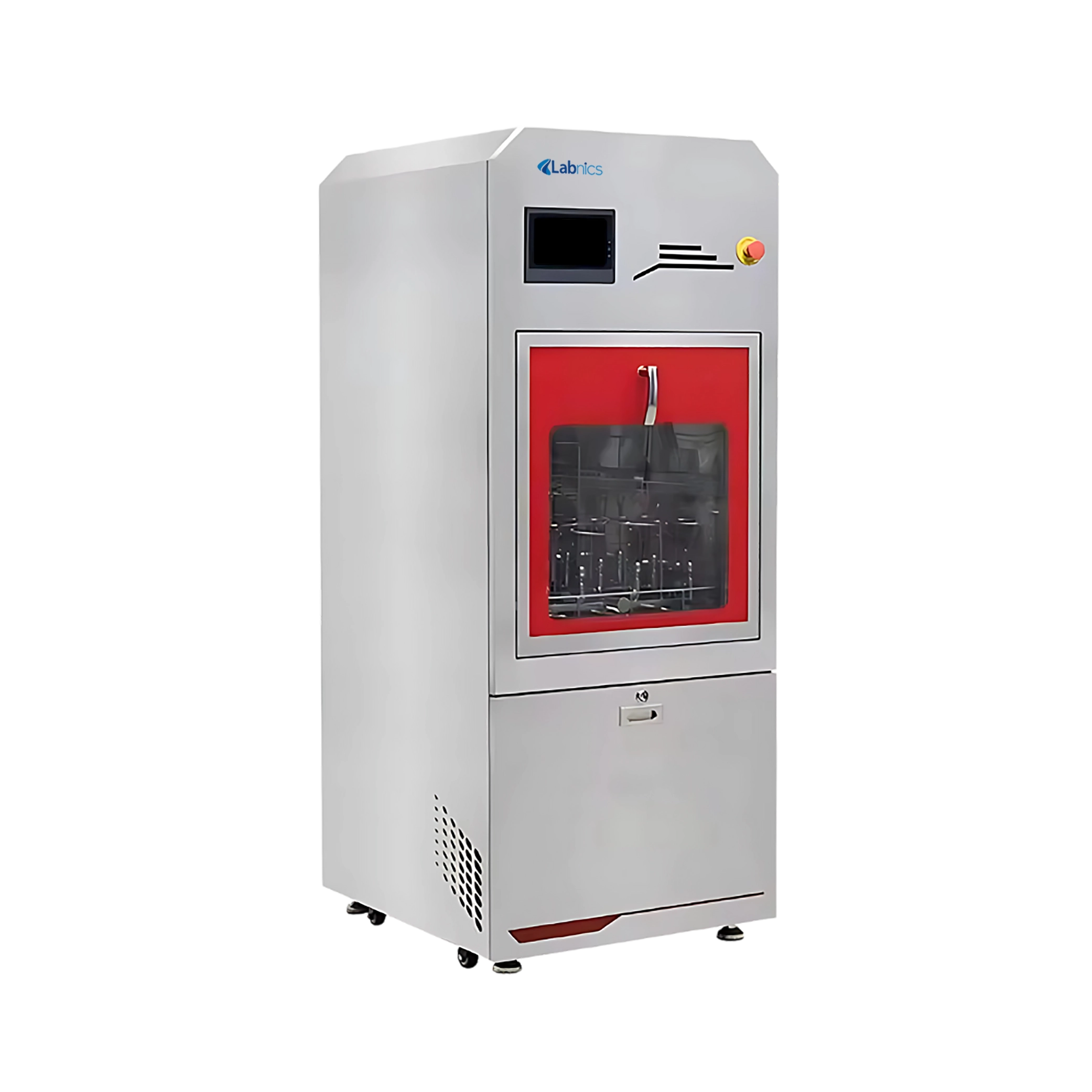

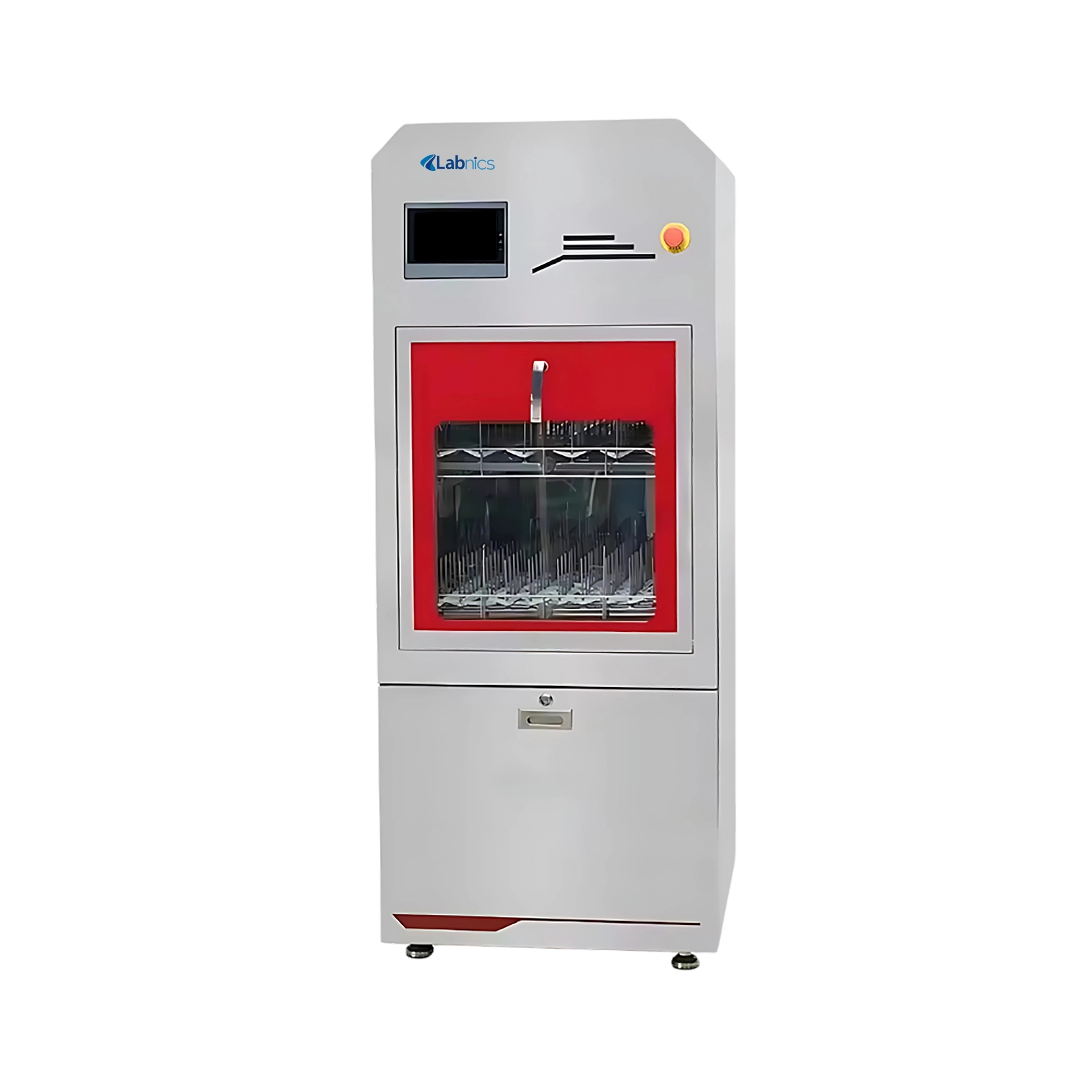

Automatic Glassware Washer NAGW-203 features a 220L capacity, making it suitable for various applications. It operates at temperatures ranging from 0 to 99°C to meet different needs. This unit has a rapid and efficient drying system with an independent air heater and HEPA filter. It is equipped with an emergency switch for immediate shutdown. Our glassware washer includes a steam condenser to enhance drying efficiency and reduce moisture buildup.
$23,775.00
Specifications
| Capacity | 220L |
| Water consumption/cycle | 20L |
| Tank internal temperature | 0 to 99°C |
| Water supply pressure | 0.3 to 1 MPa |
| Washer load level | 2 |
| Peristaltic pump for cleaning agent | 2 independent pumps control the detergent agent and neutralizing agent |
| Cleaning agent level sensor | Yes |
| Washing pump | 800L/min |
| Drying function | Yes |
| Steam condenser | Yes |
| Control system | Microprocessor |
| Display | 7-inch color LCD touchscreen |
| Cleaning program | 12 pre-set programs (editable) + 99 PLC free programming |
| Password protection | 3 levels password |
| Safety emergency button | Yes |
| USB port | Yes |
| Integrated printer | Optional |
| Online monitoring performance of washing | Optional |
| Door | Double-layered glass door |
| Safety door lock | Yes |
| Built-in RO water pump | Yes |
| Noise level | Less than 55 dB |
| Power consumption (water washing) | 0.75kW |
| Power consumption (water heating) | 5kW |
| Power consumption (drying) | 3.6kW |
| Overall power consumption | 6kW |
| Power supply | 220V to 240V/ 50 to 60Hz |
| Chamber dimension | 600×629×754mm |
| External dimension | 693×790×1825mm |
| Packaging dimension | 810×990×2015mm |
| Net weight | 220kg |
| Gross weight | 300kg |
