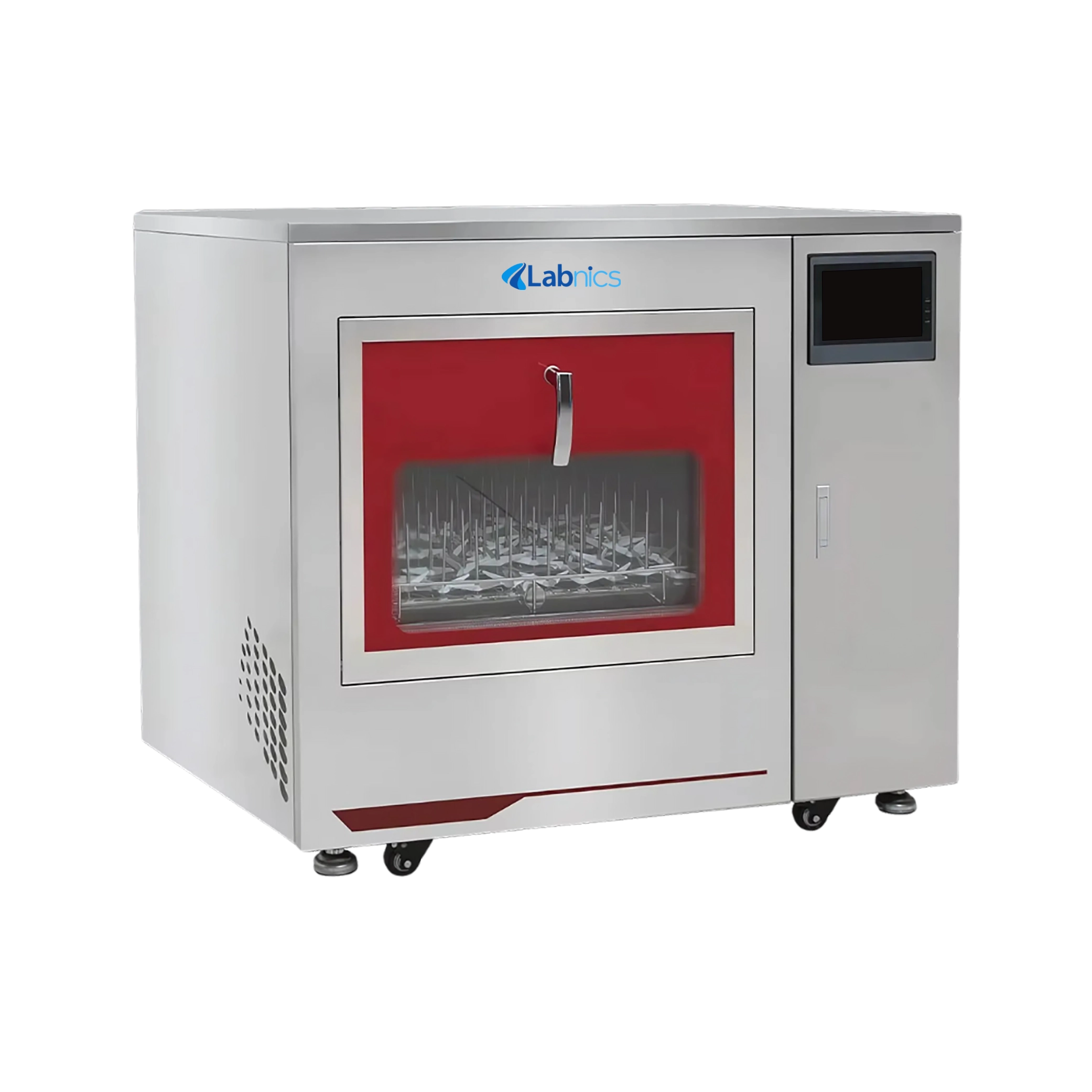

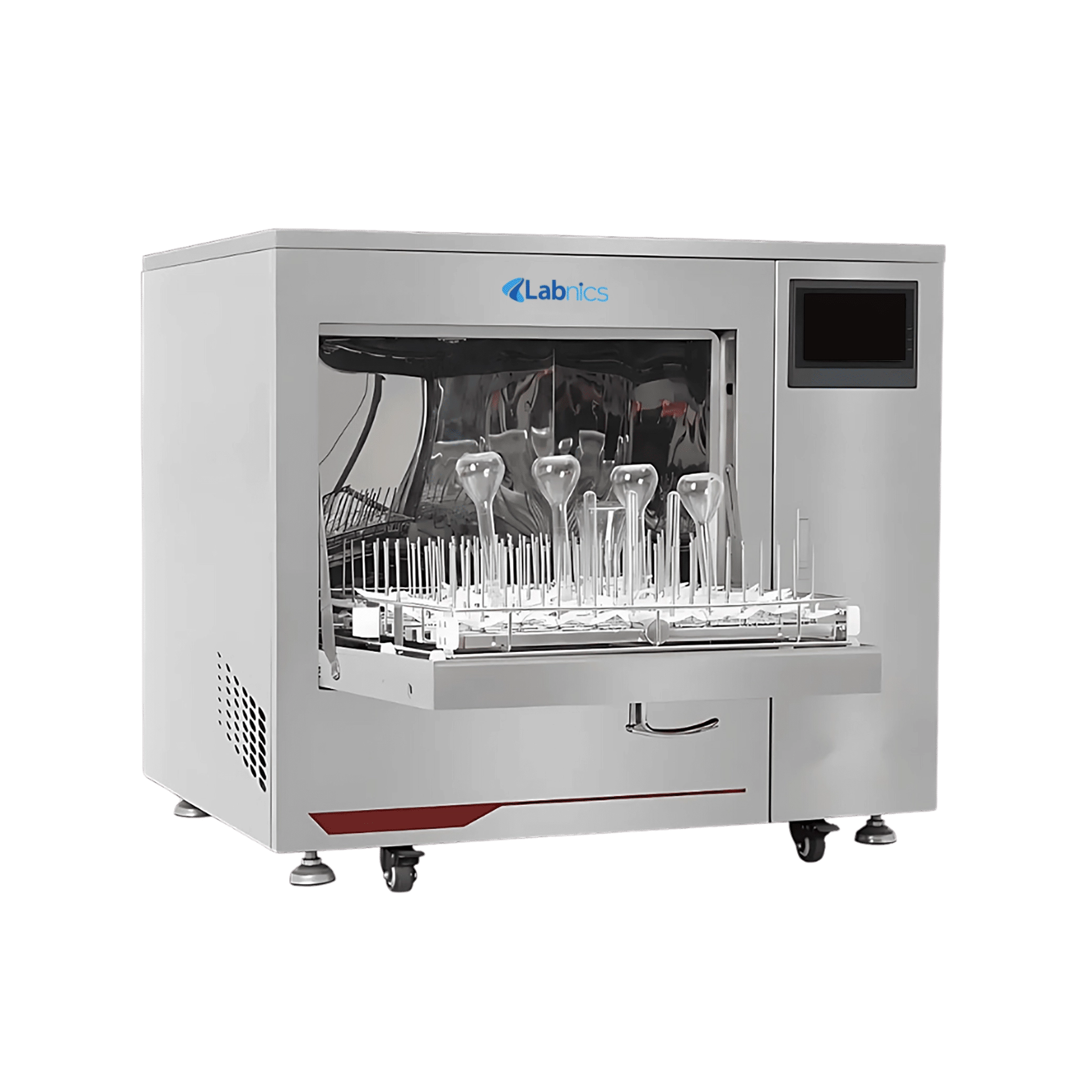

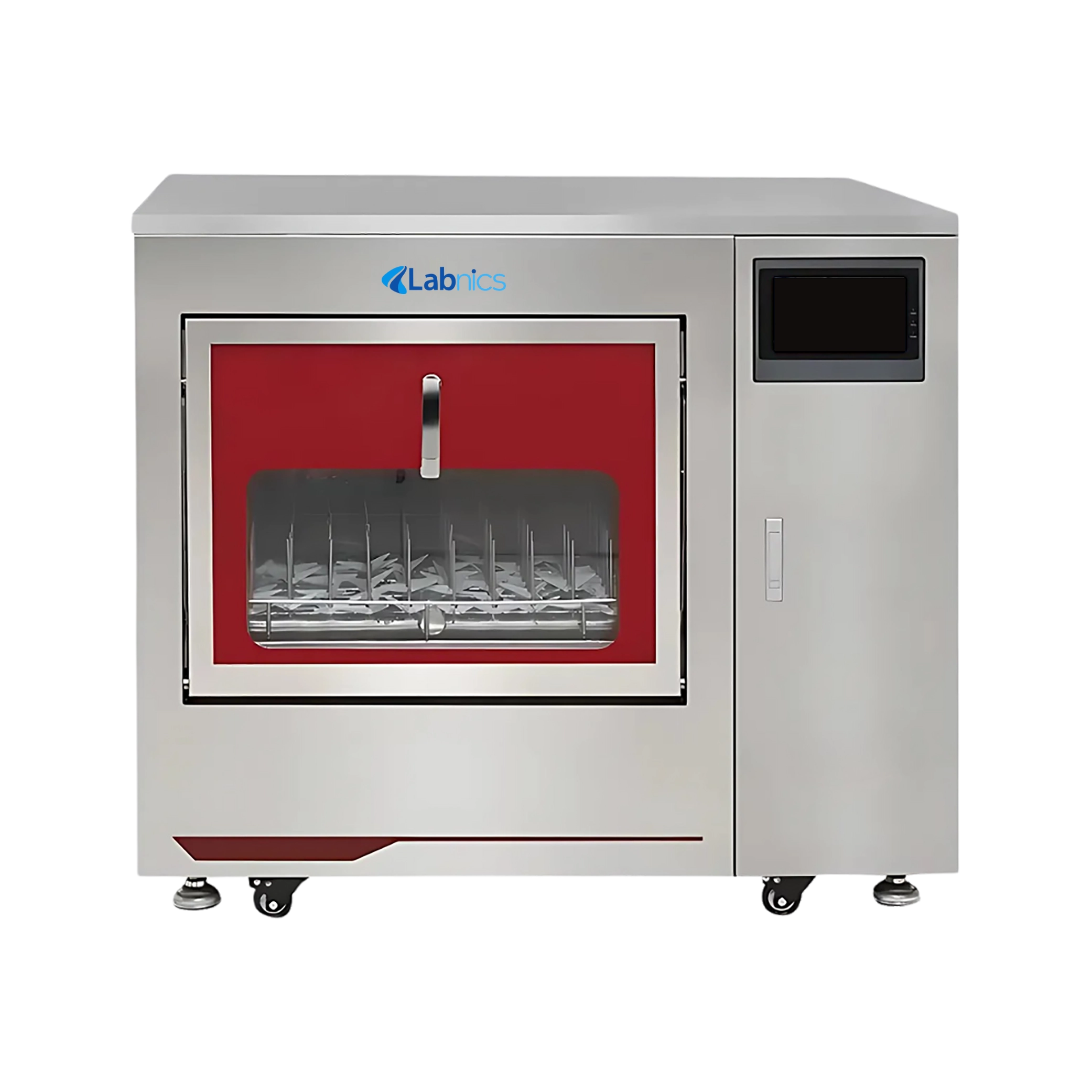

Automatic Glassware Washer NAGW-201 offers a capacity of 120L, making it suitable for large-volume cleaning tasks. It supports a single washer load level, optimizing cleaning efficiency. This unit includes a steam condenser to manage moisture and prevent excess steam buildup. It is designed with a double-layered glass door, ensuring durability and better insulation. Our glassware washer follows a structured drying process to eliminate impurities and moisture.
$15,150.00
Specifications
| Capacity | 120L |
| Water consumption/cycle | 17L |
| Tank internal temperature | 0 to 99°C |
| Water supply pressure | 0.3 to 1 MPa |
| Washer load level | 1 |
| Peristaltic pump for cleaning agent | 2 independent pumps control the detergent agent and neutralizing agent |
| Cleaning agent level sensor | Yes |
| Washing pump | 400L/min |
| Drying function | Yes |
| Steam condenser | Yes |
| Control system | Microprocessor |
| Display | 7-inch color LCD touchscreen |
| Cleaning program | 12 pre-set programs (editable) + 99 PLC free programming |
| Password protection | 3 levels password |
| Safety emergency button | Yes |
| USB port | Yes |
| Integrated printer | Optional |
| Online monitoring performance of washing | Optional |
| Door | Double-layered glass door |
| Safety door lock | Yes |
| Built-in RO water pump | Yes |
| Noise level | Less than 50 dB |
| Power consumption (water washing) | 0.4kW |
| Power consumption (water heating) | 5kW |
| Power consumption (drying) | 3kW |
| Overall power consumption | 6kW |
| Power supply | 220V to 240V/ 50 to 60Hz |
| Chamber dimension | 600×629×539mm |
| External dimension | 980×740×870mm |
| Packaging dimension | 1110×940×1075mm |
| Net weight | 169kg |
| Gross weight | 200kg |
