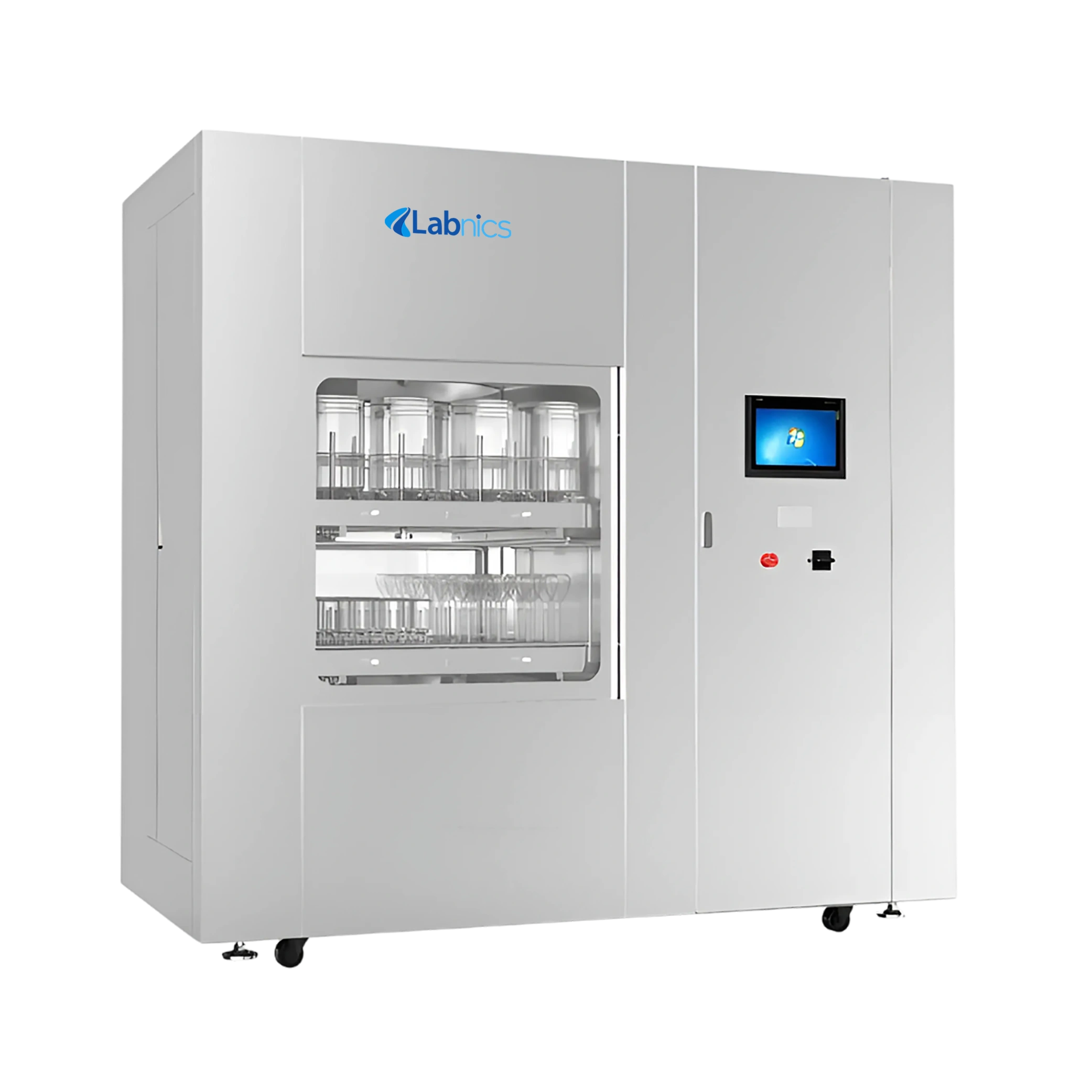

Automatic Glassware Washer NAGW-108 has a capacity of 1800 L, enabling efficient cleaning of large volumes. It comes with two circulating pumps delivering 1000 L/min and 1500 L/min for uniform washing. This unit employs an automatic lift door design that ensures smooth and convenient operation. It prevents the door from opening during operation, guaranteeing user safety. Our washer supports three-level password authority management to provide secure access control.
$85,000.00
Specifications
| Capacity | 1800L |
| Circulating pump flow A | 1000L/min |
| Circulating pump flow B | 1500L/min |
| Tank internal temperature | RT to 93°C |
| Drying temperature | RT to 120°C |
| Control style | PLC / Siemens or equivalent |
| Door structure | Single door (double doors optional) |
| Door opening mode | Electric door (manual door optional) |
| Display | 12-inch touch screen |
| Water heater power consumption | 24kW |
| Dry power consumption | 15kW |
| Power supply | 380V/50Hz |
| Exterior dimension | 2500×1540×2250mm |
Features
Applications
Ask Expert
FAQ for Automatic Glassware Washer NAGW-108
1: Can the Automatic Glassware Washer NAGW-108 keep records of cleaning cycles?
Our Automatic Glassware Washer can store more than 20,000 cleaning records and alarm records for easy review. It also allows me to export records in PDF format or print them directly, which is very useful for compliance and audits.
2: What happens if there is a power outage?
Our Automatic Glassware Washer has a power-off memory function that allows the device to resume the program from where it left off once the power is restored. This saves me from having to restart the entire process.
3: What kind of door does the Automatic Glassware Washer NAGW-108 have?
The Automatic Glassware Washer is equipped with a hollow double-layer tempered glass door, which provides both heat insulation and noise reduction. The automatic lift design makes operation much easier compared to traditional doors.
4: How secure is the door sealing?
Our Automatic Glassware Washer uses independent stamping technology to automatically press the silicone rubber seal once the door is closed. This ensures both airtightness and watertightness during the cleaning cycle.
5: How easy is it to maintain the Automatic Glassware Washer NAGW-108?
The Automatic Glassware Washer is designed with a rounded 316L stainless steel chamber that has no dead corners, making it simple to clean and maintain. It also uses corrosion-resistant materials like stainless steel and PTFE in all parts that come in contact with water.
