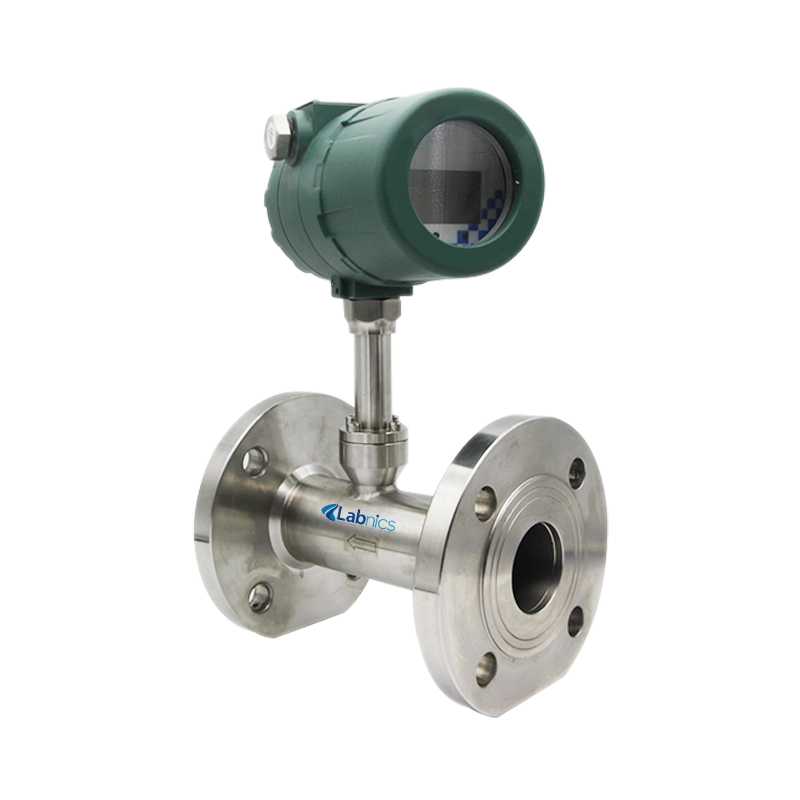

Gas flow meter NGFM-100

Gas flow meter NGFM-100 is suitable for measuring the flow rate according to the thermal properties of gases. The sensor part of the thermal gas mass flow meter is composed of two reference-level Pt100 temperature sensors. By detecting a constant temperature difference in the medium, the flow meter can provide a high accuracy measurement result.

---

$800.00

Buy Now Catalog

Specifications

Diameter	DN10-80 (Flange type) DN100-6000 (Insert type)
Medium	All gases (except acetylene)
Flow rate	0.5-100Nm/s
Accuracy	±1%
Operating pressure	≤10MPa ≤2.5MPa
Power supply	Compact type: DC24V or AC220V≤18W; Remote type:AC220V≤19W
Response time	1s
Output	4-20mA output, HART, RS485 options.
Pipe material	Carbon steel, stainless steel, plastic, etc.
Display	Compact type: 4 lines LCD display
Display content	Mass flow, standard volume flow, accumulated flow, time, accumulated time, medium temp., standard flow, etc.
Sensor material	Stainless steel Stainless / carbon steel

Features

• Temperature and pressure compensation is not necessary; thus measurement process is simpler and more accurate
• Could measure the mass flow or standard volume flow rate of gas
• Range ratio 100:1, which could measure gas flow from 100Nm/s to 0.5 Nm/s, can be used for gas leak detection
• Good vibration resistance and a long service life
• With no moving parts or pressure-detecting parts, accuracy will not be detected by vibration
• Easy installation and maintenance
• In proper condition, installation and maintenance could be finished while the whole system is running
• Adopt overall digital circuit measurement to ensure high accuracy

Applications

• It is widely used in the metallurgical, beverage, pharmaceutical, petrochemical, and natural gas industries; the glass, ceramic, and building material industries; and the electronic and mechanical manufacturing industries.
