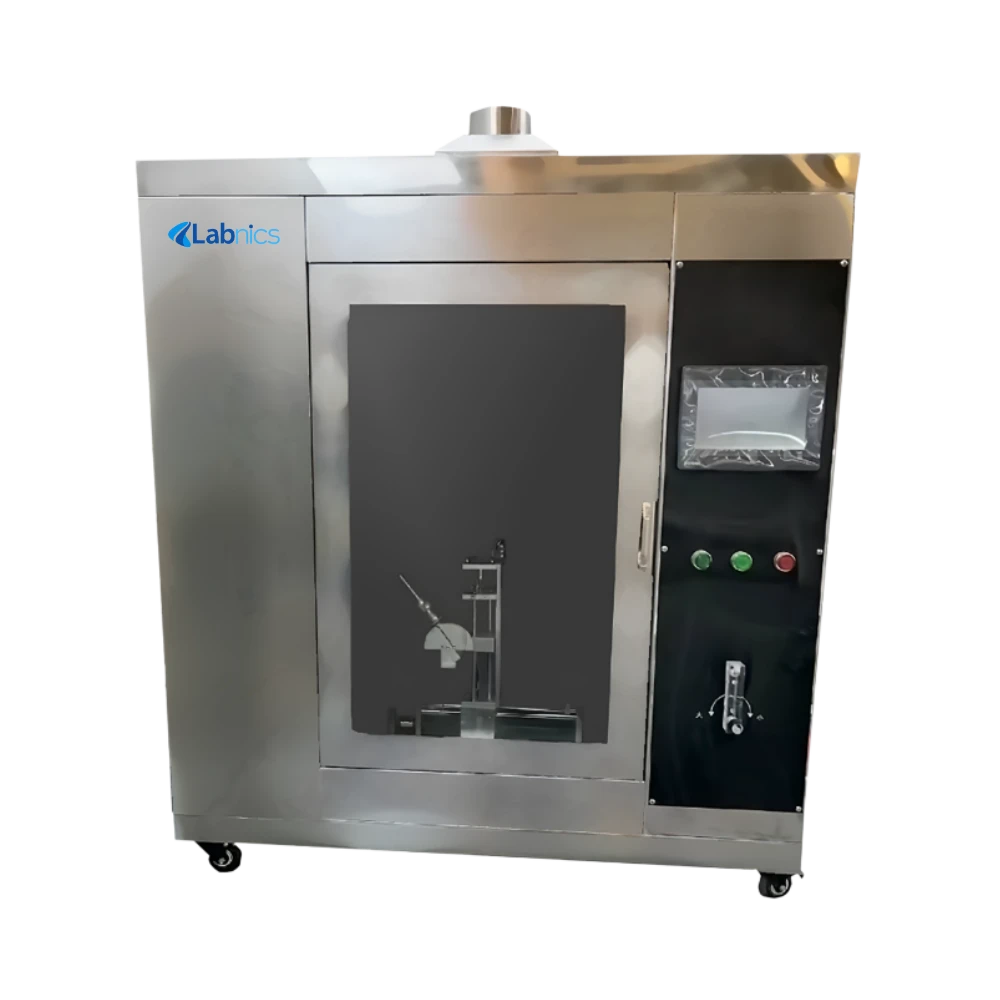

Flame Retardant Analyzer NFRA-100 features a 0.5 cubic meter box volume with a glass observation door for clear visibility. This analyzer allows adjustable flame times for optimal performance. It includes selectable flame angles for flexible combustion testing. It provides motorized sample alignment for precise positioning of test specimens. It is equipped with comprehensive gas control systems to ensure accurate combustion testing.
$3,438.00
Specifications
| Box volume | ≥0.5 cubic meters |
| Flame time | 0 to 99 minutes and 99 seconds |
| After flame time | 0 to 99 minutes and 99 seconds |
| Afterburning time | 0 to 99 minutes and 99 seconds |
| Burning angle | 20°, 45°, 90° (i.e. 0°) can be adjusted |
| Burner size parameters | nozzle inner diameter Ø9.5mm nozzle effective length 100mm |
| Flame height | 20 to 175mm |
| Power supply | 220V, 50Hz. |
| Dimension (L×W×H) | 810×1140×1560mm |
| Gross weight | 75kg |
Features
Applications
Ask Expert
Labnics Flame Analyzers offer precise control of flame for accurate combustion testing. They feature adjustable burner angles, and variable flame height for versatile test setups. Our units ensure precise sample positioning with motorized alignment for consistent and repeatable results. They include advanced gas flow regulation and exhaust systems to maintain safety during operation. These analyzers are ideal for material testing and industrial combustion analysis.
