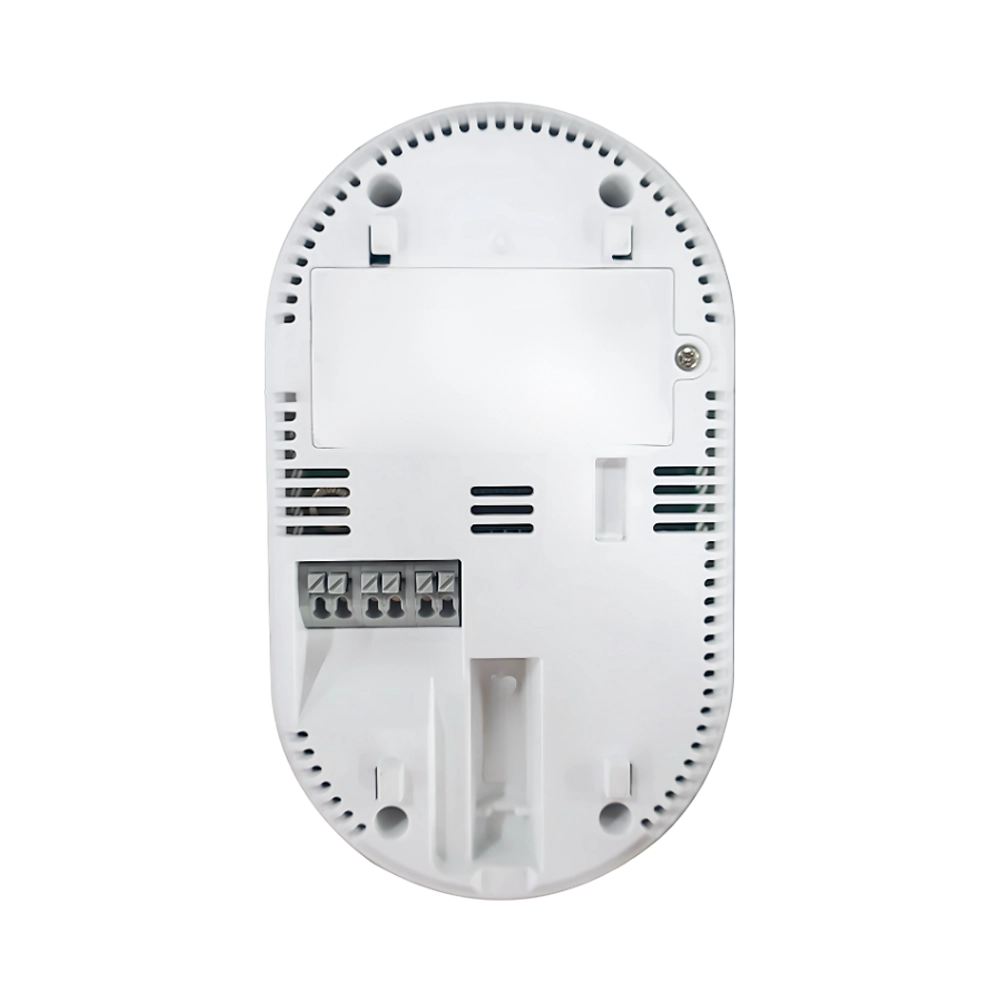

Fixed Methane Gas Analyzer NMGA-100

Fixed Methane Gas Analyzer NMGA-100 is designed to detect natural gas and liquefied petroleum gas with high accuracy. It operates within a wide temperature range of -50°C to +55°C. This unit incorporates an automatic ventilation system that rapidly dissipates harmful gases, enhancing safety. It includes a smart shut-off mechanism that automatically stops the gas supply when a leak is detected. Our gas analyzer features LED status indicators that provide a clear visual signal.

---

$825.00

Buy Now Catalog

Specifications

Gas detection	CH₄, LPG, C₃H₈
Detection range	0 to 20% LEL
Operating temperature	-50°C to +55°C
Operating humidity	Less than 95%RH
Relative humidity	95%, no condensation
Alarm setting value	8% LEL
Alarm sound	Greater than 70dB and less than 115dB
Sensor life	10 years
Power consumption	Normal monitoring 2W, Alarm status 3W
Power supply	AC220 to 240V/ 50 Hz
Dimension	129.8×75.8×28.8mm
Net weight	105g (excluding adapter)

Features

• Long-lasting 10-year sensors
• Easy wall-mounted installation
• High-speed gas detection
• Built-in buzzer alarm
• Continuous 24/7 monitoring
• Self-test functionality

Applications

• Fixed Methane Gas Analyzer NMGA-100 is used to detect and monitor gas leaks, ensuring safety by providing early warnings. It is widely applied in residential homes, commercial kitchens, gas stations, oil refineries, chemical plants, manufacturing industries, power plants, wastewater treatment facilities, mining, warehouses, and laboratories.

Standard Accessories

Detector with base -1pc

---

Cable -1pc

---

Screw bag -1pc

---

1PE bag -1pc

Optional Accessories

3M sticker
