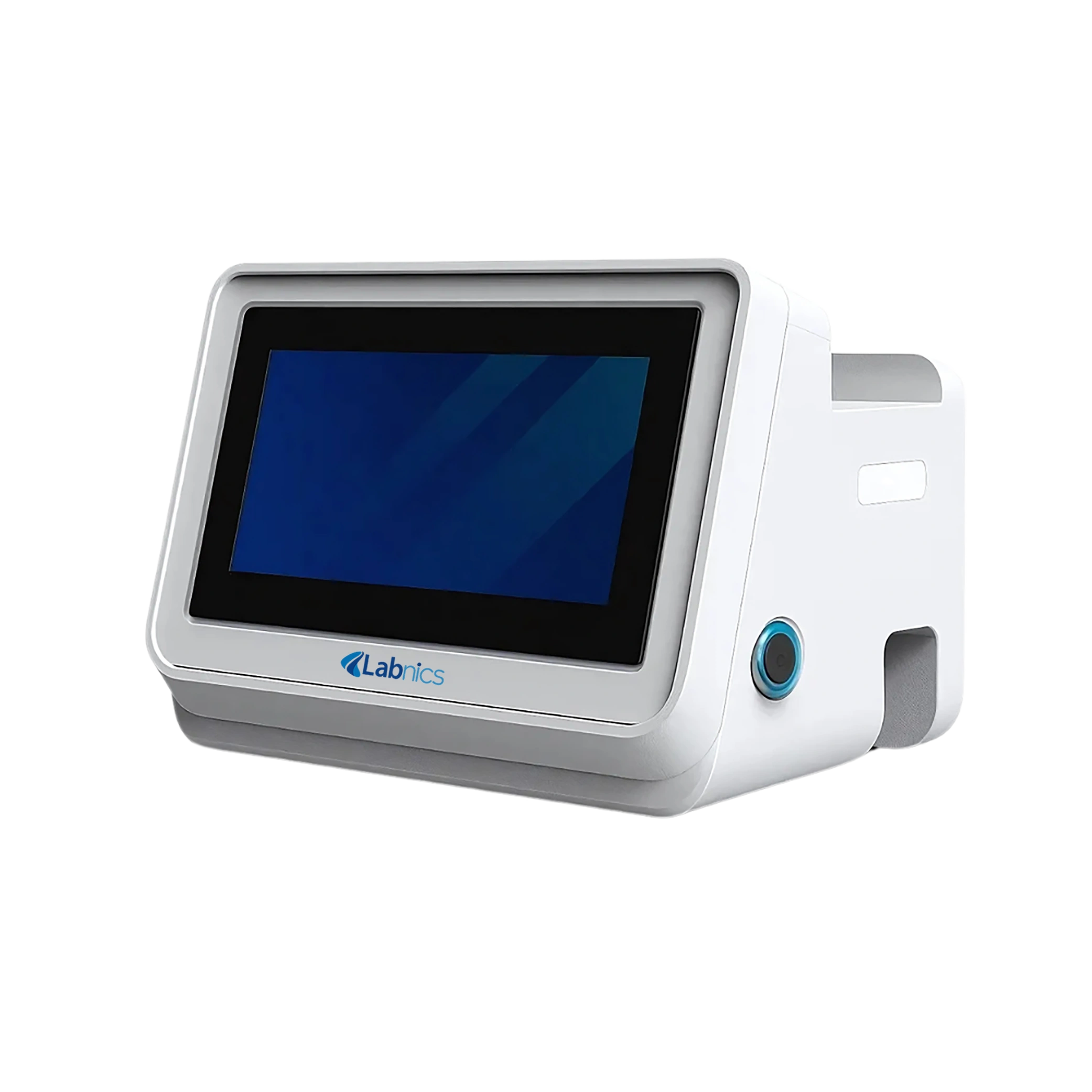

Filter integrity tester NFIT-102 is a device that confirms membrane filters are free from defects and performing well with an operation pressure 9999 mbar. It typically performs bubble‑point, diffusion, pressure‑hold, water‑intrusion tests. Our unit directly measures the filter pores or if there are leaks which could let contaminants through and break sterility. This system is used in pharmaceuticals, biotechnology, food and beverage industries. It simplifies testing by integrating calibrated sensors, data logging, and outputs without damaging the filter.
$8,750.00
Specifications
| Max operation pressure | 9999 mbar |
| Min air inlet pressure | 100 mbar |
| Test range | 300 to 7000mbar |
| Test accuracy | Sensitivity: ± 1 mbar; |
| Operating conditions | Ambient temperature: 0℃- 60℃; |
| Test time | Basic bubble point test: 4 min±2min; |
| Printing function | printing test conditions, test results, test curves |
| Display | 10.4inch Color touch screen |
| Storage | 32G storage space, store 1 million data |
| Output | USB, support RS232, 4-20mA customization |
| Printer | inner printer |
| Dimensions(L×W×H) | 320 × 240 × 260 mm |
| Weight | 4.5kg |
Features
Applications
Ask Expert
FAQ for Filter integrity tester NFIT-102
1: What is Filter integrity tester NFIT-102?
Filter integrity tester NFIT-102 is a device used to assess the performance and structural integrity of membrane filters. It ensures that filters are free from defects and capable of effectively removing contaminants without compromising the sterility of the filtered product.
2: What testing methods do Filter integrity tester NFIT-102 employ?
Filter integrity tester NFIT-102 commonly utilizes methods such as bubble-point, diffusion, pressure-hold, and water-intrusion tests. These non-destructive techniques measure parameters like gas flow, pressure drop, and wetting characteristics to evaluate filter performance.
3: Are Filter integrity tester NFIT-102 suitable for various filter types?
Yes, Filter integrity tester NFIT-102 are versatile and can test a wide range of filter types, including syringe filters, capsule filters, cartridge filters, and tangential flow filtration (TFF) cassettes. They are designed to accommodate different filter configurations and sizes.
4: What industries benefit from using Filter integrity tester NFIT-102?
Industries such as pharmaceuticals, biotechnology, food and beverage, and water purification rely on filter integrity testers to ensure product quality and compliance with regulatory standards. These devices help maintain the integrity of sterilizing-grade filters used in critical applications
5: How do Filter integrity tester NFIT-102 ensure data integrity and compliance?
Filter integrity tester NFIT-102 are equipped with features like audit trail functionality, data logging, and compliance. These features ensure that test results are securely stored, traceable, and meet regulatory requirements.
