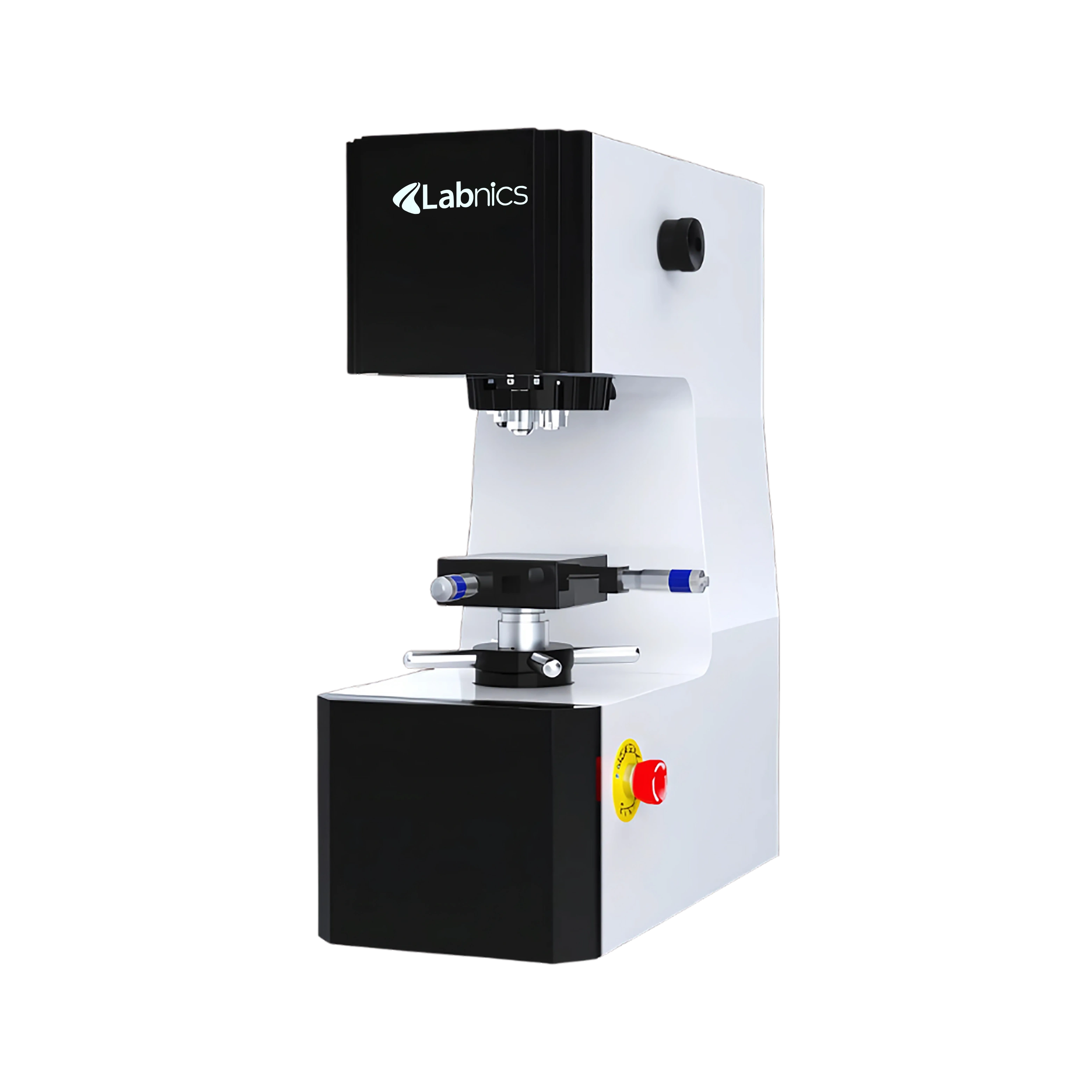

Digital Micro Vickers Hardness Tester NDMVT-200 features an automatic turret, and a wide test force range from 10g to 1kgf for versatile applications. It offers accurate load control with a loading speed of ≤50 µm/sec. This system includes a high-resolution 5 MP camera for precise imaging and measurement. Our software facilitates automatic turret control, light adjustment, and report generation. It is equipped with a standard pyramid indenter, which ensures accurate indentation under all scales.
$4,225.00
Specifications
| Turret | Automatic turret |
| Objective | 10X (measurement), 40X (measurement) |
| Test Force Range | 10g (0.098N), 25g (0.245N), 50g (0.49N), 100g (0.98N ), 200g (1.96N), Testing force 300g (2.94N), 500g (4.9N), 1000g (9.8N) |
| Force Switch | Manual rotate knob (for force switch) |
| Hardness Scales | HV0.01, HV0.025, HV0.05, HV0.1, HV0.2, HV0.3, HV0.5, HV1 |
| Conversion Scales | HRA, HRB, HRC, HRD, HRF, HR15N, HR30N, HR45N, HR15T, HR30T, HR45T,HV,HK,HBW |
| Hardness Value Range | 8HV to 3000HV |
| Loading Speed | ≤ 50 µm/sec |
| Loading Method | Automatic (load, dwell, unload) |
| Indenter | Standard rectangular pyramid diamond indenter (136º ± 0.5º) |
| Duration Time | 1 to 99 seconds (1s step) |
| X-Y Testing Table | 100 × 100 mm; Max travel: 25 × 25 mm; Resolution: 0.01 mm |
| Test Space | Maximumheight:121mm(vertical) Throatdepth:100mm(horizontal) |
| Light Source | Built-in high-brightness long-life LED cold light source |
| Built-in Camera | 5 MP |
| Software Functions | Controls turret, light, measurement, and generates test reports |
| Power Supply | 220V ± 5%, 50/60 Hz |
| Product Dimensions (L×W×H) | 434 × 233 × 600 mm |
| Net Weight | 50 kg |
Features
Applications
Standard Accessories
Weight shaft × 1 pc
Weights × 6 pcs
X-Y cross testing table × 1 pc
Level adjustment screws × 4 pcs
Built-in 5 MP camera × 1 pc
Software key & USB drive × 1 pc
Micro Vickers hardness blocks × 2 pcs
Power cord × 1 pc
Dust-proof cover × 1 pc
Screwdrivers × 2 pcs
Spare fuses (2A) × 2 pcs
Ask Expert
FAQ for Digital Micro Vickers Hardness Tester NDMVT-200
1: What is the test force range of the Digital Micro Vickers Hardness Tester NDMVT-200?
Digital Micro Vickers Hardness Tester NDMVT-200 offers a wide force range from 10g (0.098N) to 1000g (9.8N), covering HV0.01 to HV1 scales, ideal for both surface and thin material testing.
2: Can I automatically control the turret and lighting with the software in the Digital Micro Vickers Hardness Tester NDMVT-200?
Yes, the integrated software in Digital Micro Vickers Hardness Tester NDMVT-200 allows full control of turret rotation, LED lighting brightness, and test operations, simplifying testing workflows.
3: How accurate is the indentation measurement with Digital Micro Vickers Hardness Tester NDMVT-200?
Digital Micro Vickers Hardness Tester NDMVT-200 includes a built-in 5 MP camera with precision optics, enabling clear capture and accurate digital measurement of indentations.
4: What types of materials can be tested with the Digital Micro Vickers Hardness Tester NDMVT-200?
Digital Micro Vickers Hardness Tester NDMVT-200 is suitable for steel, aluminum, copper, ceramics, coatings, and micro components in electronics and automotive industries.
5: Does the Digital Micro Vickers Hardness Tester NDMVT-200 support data reporting and backup?
Yes, Digital Micro Vickers Hardness Tester NDMVT-200 can generate customizable test reports via its software and export data through USB or network connections for documentation and analysis.
6: What is a Digital Micro Vickers Hardness Tester used for?
It is used to measure the hardness of micro-scale components, coatings, and thin materials. These testers provide accurate readings ideal for metallurgical, electronic, and research applications.
7: What test forces are available in Digital Micro Vickers Hardness Testers?
They typically support test forces ranging from 10 gf to 1000 gf, allowing users to perform detailed hardness testing across various sample types and thicknesses.
8: Does it include automatic loading and unloading?
Yes, modern models feature fully automatic loading, dwell, and unloading mechanisms, improving efficiency, consistency, and reducing operator fatigue.
9: Can the Digital Micro Vickers Hardness Tester convert between hardness scales?
Yes, these testers usually provide multi-scale conversion, including HV, HK, and several Rockwell and Brinell scales, simplifying data comparison and reporting.
10: Where are Digital Micro Vickers Hardness Testers commonly used?
They are widely used in research laboratories, production quality control, educational institutions, and industries such as automotive, aerospace, electronics, and materials science.
Labnics Digital Micro Vickers Hardness Testers offer accurate hardness measurements for small and delicate components. They are equipped with automatic loading to ensure repeatable test results. Our fine resolution readings enhance precision for microstructure analysis. These provide fine resolution readings to capture even minor indentation differences. They have multiple conversion scales that allow easy translation of results.
