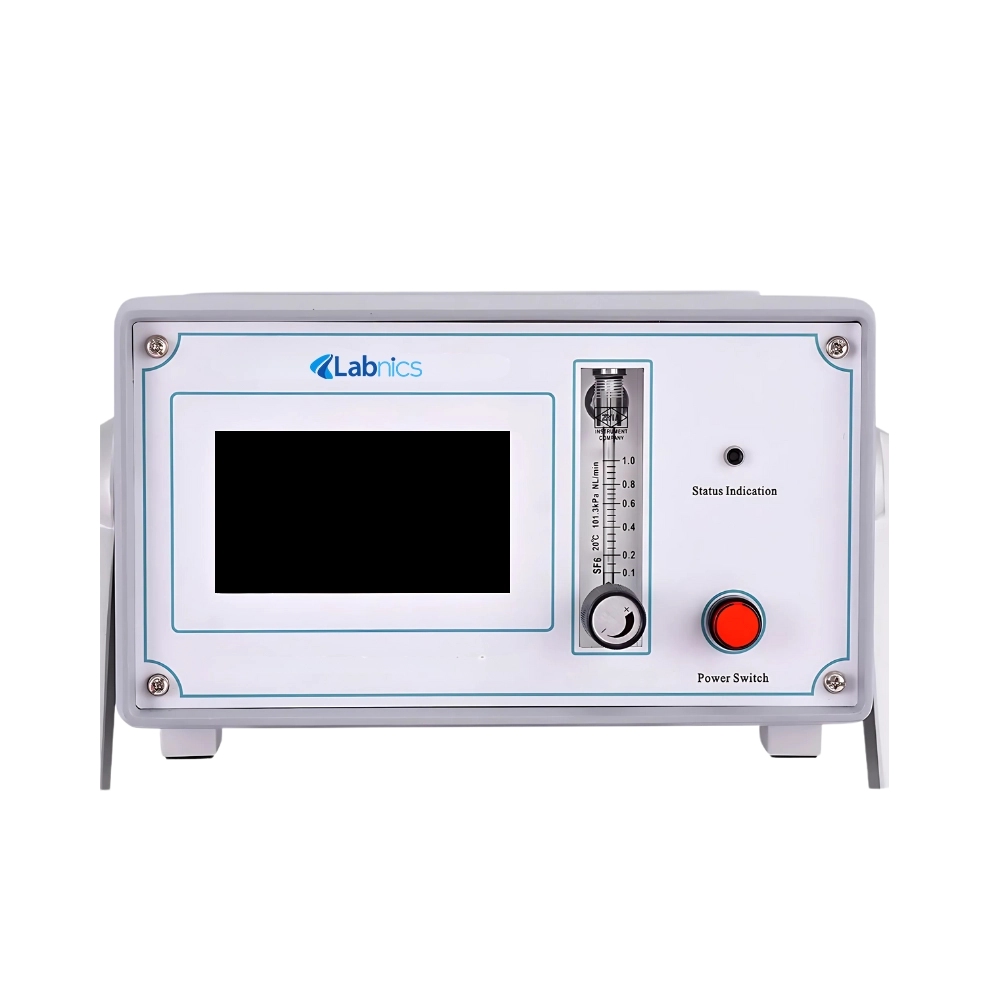

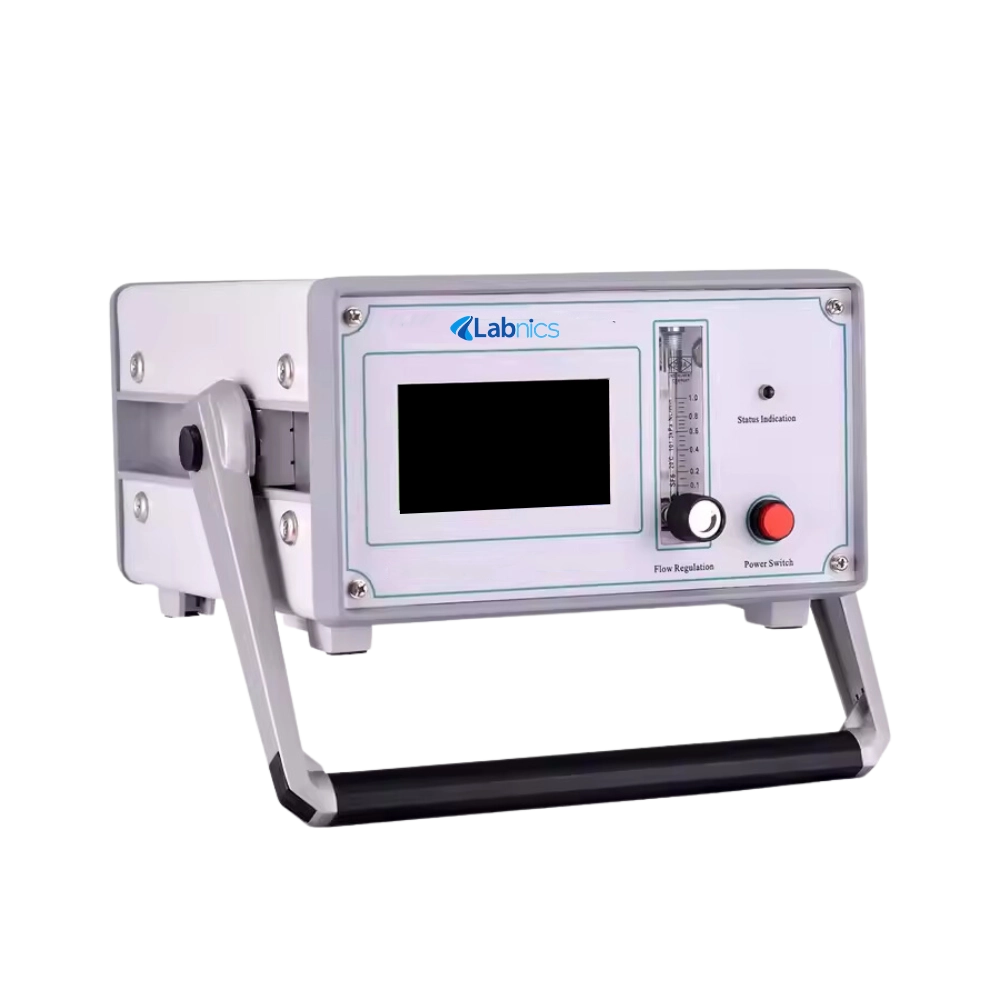

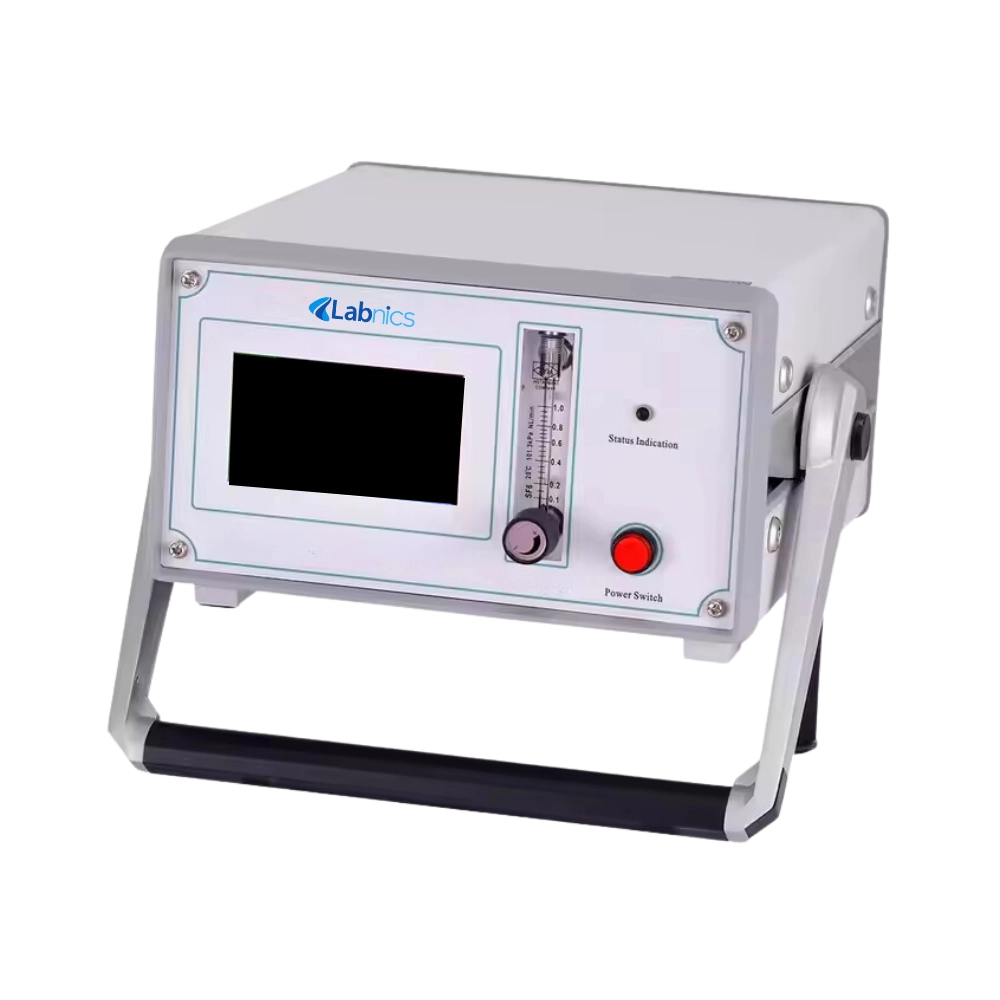

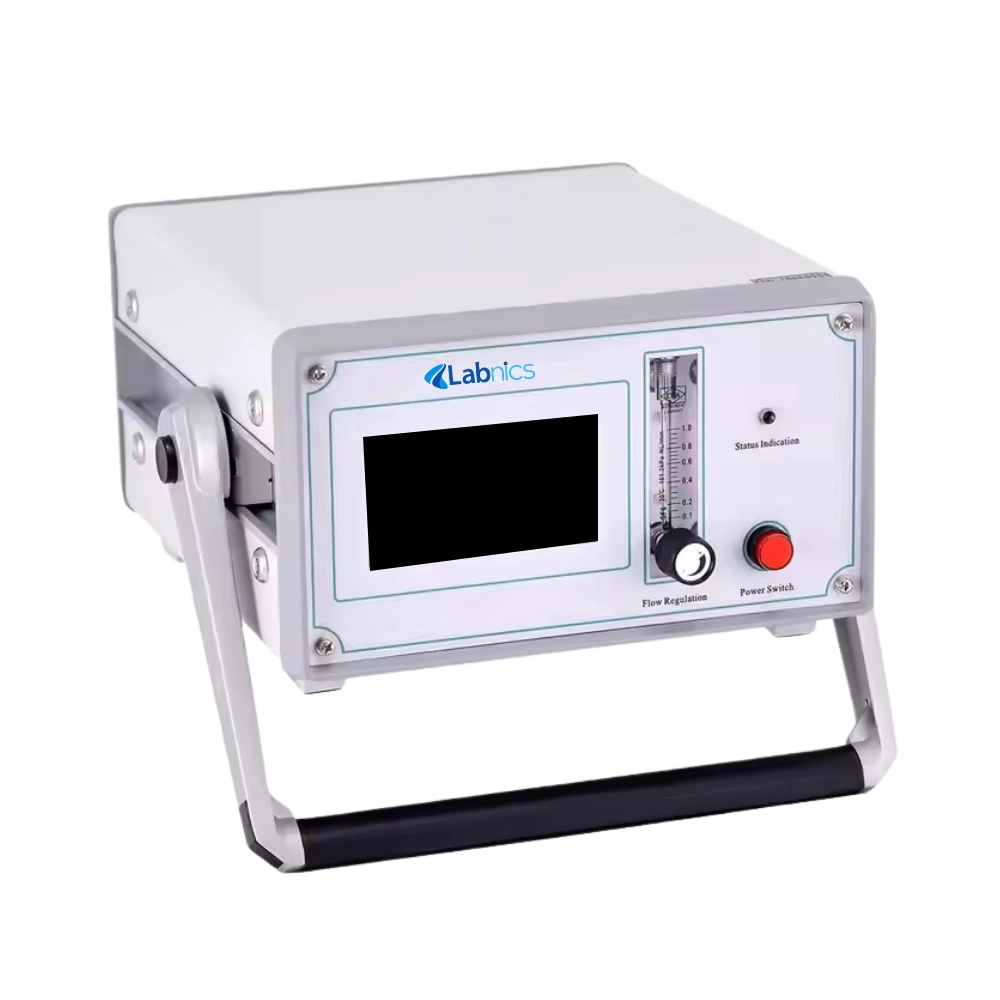

Portable SF6 Dew Point Analyzer NSFD-100

Portable SF6 Dew Point Analyzer NSFD-100 measures dew points within a range of -80°C to +20°C, providing precise and reliable readings. It features a high-accuracy advanced dew point sensor for accurate moisture measurements. Our analyzer provides a sampling flow rate of 0.6 L/min, ensuring consistent testing performance. This unit is designed to enable efficient printing of test results for easy documentation. It includes an LCD for clear and easy monitoring.

---

$14,513.00

Buy Now Catalog

Specifications

Gas Measured	SF6
Dew Point Measurement Range	-80°C to +20°C
Moisture Measurement Range	0 to 19999 uL /L
Accuracy	±0.5°C (-60°C to +20°C) ±1.0°C (-80°C to -60°C)
Dew Point Resolution	0.1°C
Moisture Resolution	1 uL/L
Response Time	63% in 5s, 90% in 45s (-60°C to +20°C) at +20℃ and 0.1Mpa 63% in 10s, 90% in 240s (+20°C to -60°C) at +20℃ and 0.1Mpa
Sampling Flow Rate	0.6 L/min
Flow Rate Variation	±20%
Gas Consumption Per Test	2L (101.2 kPa)
Pressure Range	0 to 1.0 MPa
Temperature Range	-20°C to +60°C
Humidity Range	0 to 100% RH
Data storage	Up to 50 test results
Storage Temperature	-20°C to +80°C
Power Supply	Built-in rechargeable battery Sufficient for 10 hours of continuous operation
Charging Time	4 hours
Dimension	250 × 150 × 300 mm
Weight	3.5 kg

Features

• Quick results
• Built-in rechargeable battery
• Digital circuit control technology
• Self-locking joint
• Rs232 interface
• Offers high stability

Applications

• Portable SF6 Dew Point Analyzer NSFD-100 is used to accurately measure moisture content in SF6 gas to ensure the reliability and safety of electrical equipment. It is commonly used in power systems, petrochemical industries, and research laboratories.

Standard Accessories

Intake pipe (3m with common connector) × 1pc

---

Bleeder pipe (3M) × 1pc

---

Transition joint (1 to 8) × 1pc

---

Raw material belt × 1pc

---

RS232 USB Cable × 1pc

---

USB-RS232 Cable × 1pc

---

Charger × 1pc

---

Disk × 1pc
