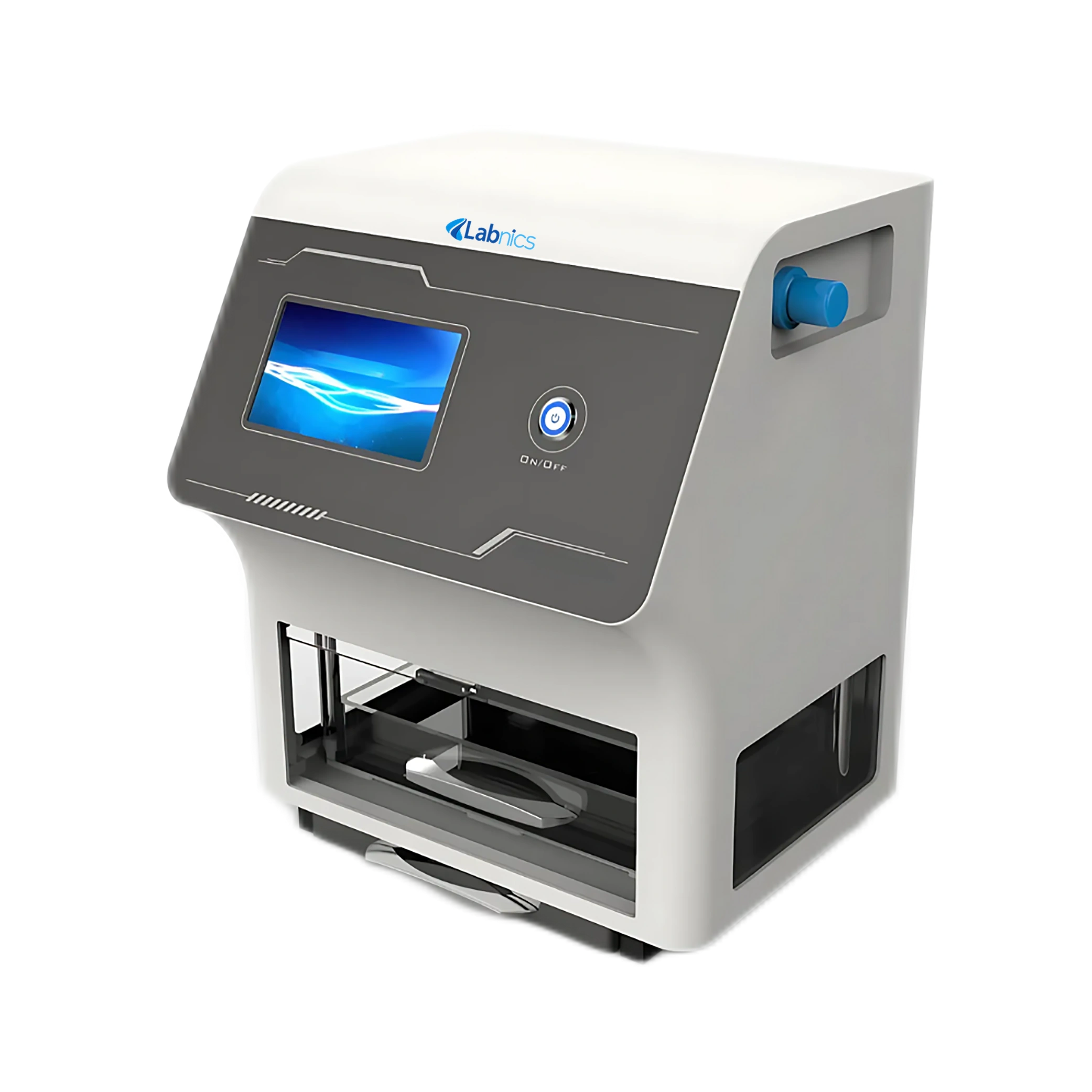

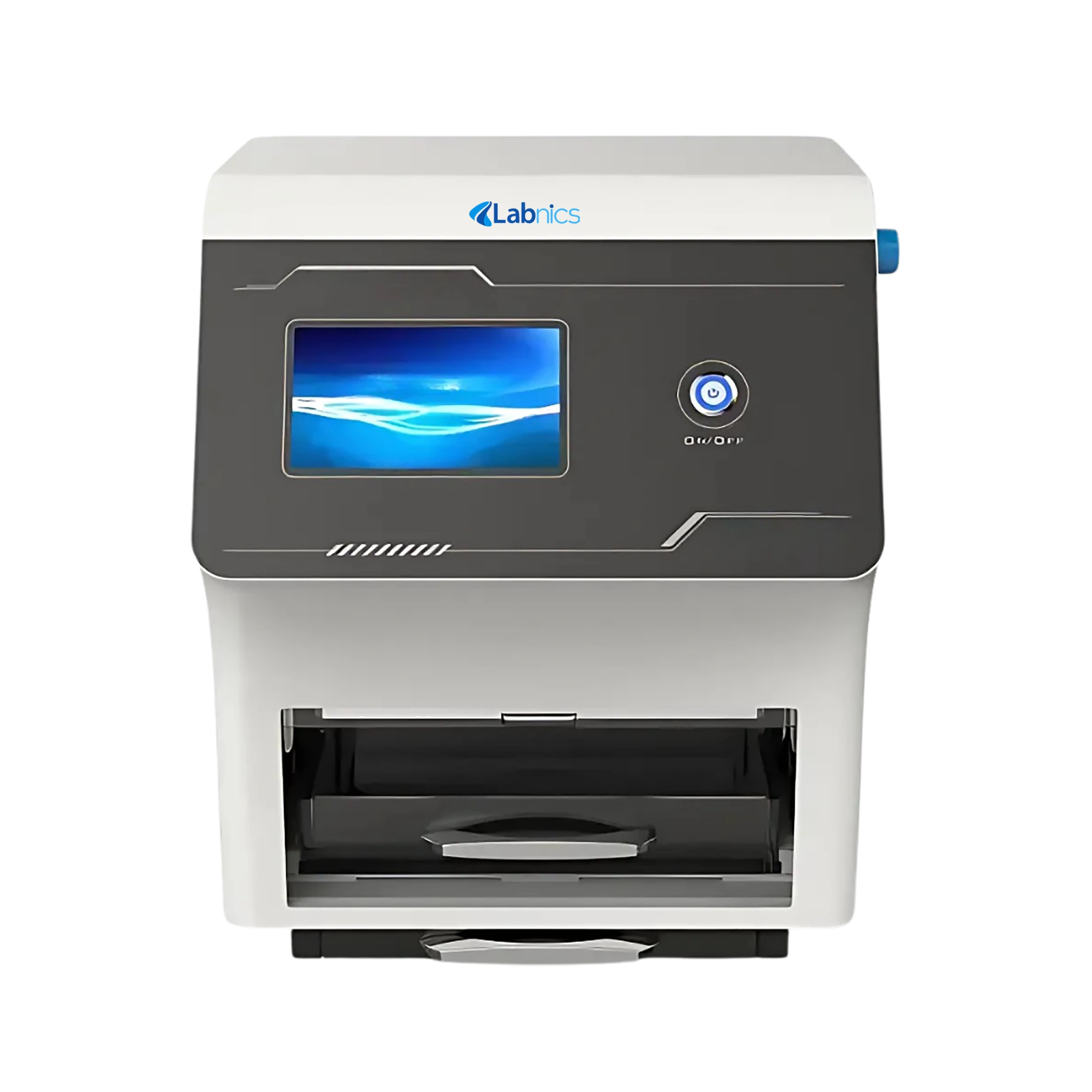

Compression Testing Machine NCTM-400

Compression Testing Machine NCTM-400 comes with a pressure range of 50 to 700 KPa and supports air pressure from 0 to 0.7 MPa. It features an LCD screen for real-time parameter display. This compression tester uses a pneumatic pressure system for efficient operation. It offers adjustable compression pressure for controlled and precise testing. Our unit is built with advanced technology to ensure reliable testing performance.

---

$6,288.00

Buy Now Catalog

Specifications

Pressure Range	50 to 700 Kpa
Air Pressure Range	0 to 0.7 MPa
Pressure Accuracy	±0.8%
Test Distance	0 to 100 mm
Air Connection	Ф6mm Air pipe
Test Disc	1
Power Consumption	100 W
Power Supply	AC 220 V, 50 Hz
Internal Dimensions	280 × 180 mm
External Dimensions	394 × 355 × 475 mm
Weight	28.8 kg

Features

• Pressure hold function
• Stable performance
• Preset pressure settings
• Dual testing modes
• Durable construction

Applications

• Compression Testing Machine NCTM-400 is used to test the pressure and burst strength of packaging bags in quality control, research, and industrial applications.
