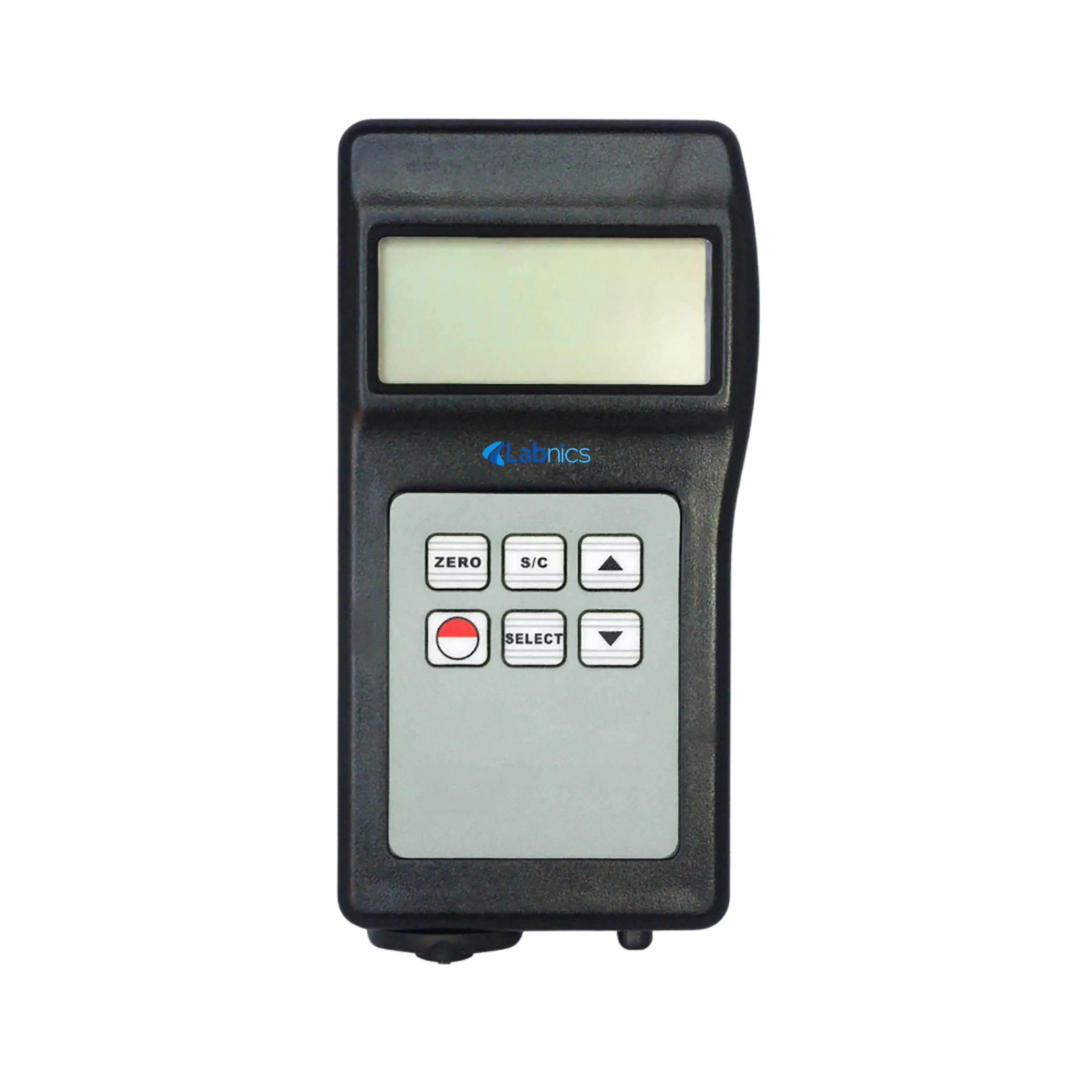

Coating Thickness Gauge NCTG-300 comes with a measuring capacity ranging from 0 to 1250 μm and a resolution accuracy of 0.1 μm. It offers single and continuous measurement modes for flexible usage. This unit includes auto and manual power-off settings for energy efficiency. It provides an audible beep to indicate operational status. Our thickness gauge includes integral probe options to ensure consistent readings.
$1,350.00
Specifications
| Measuring Range | 0 to 1250 μm / 0 to 50 μm |
| Resolution | 0.1 μm / 1 μm |
| Accuracy | ±1 to 3%n or ±2.5 μm |
| Working Principle | F Magnetic Induction |
| Minimum Radius Workpiece | F type: 1.5 mm (convex)/ 25 mm (concave) |
| Minimum Measuring Area | 6 mm |
| Minimum Sample Thickness | 0.3 mm |
| Metric / Imperial | Convertible |
| Operating Temperature | 0 to 50°C |
| Humidity | <80% RH |
| Battery Indicator | Low Battery Indicator |
| Power Supply | 4 × 1.5V AA (UM-4) Battery |
| Dimensions | 126 × 65 × 27 mm |
| Weight | 115 g |
Features
Applications

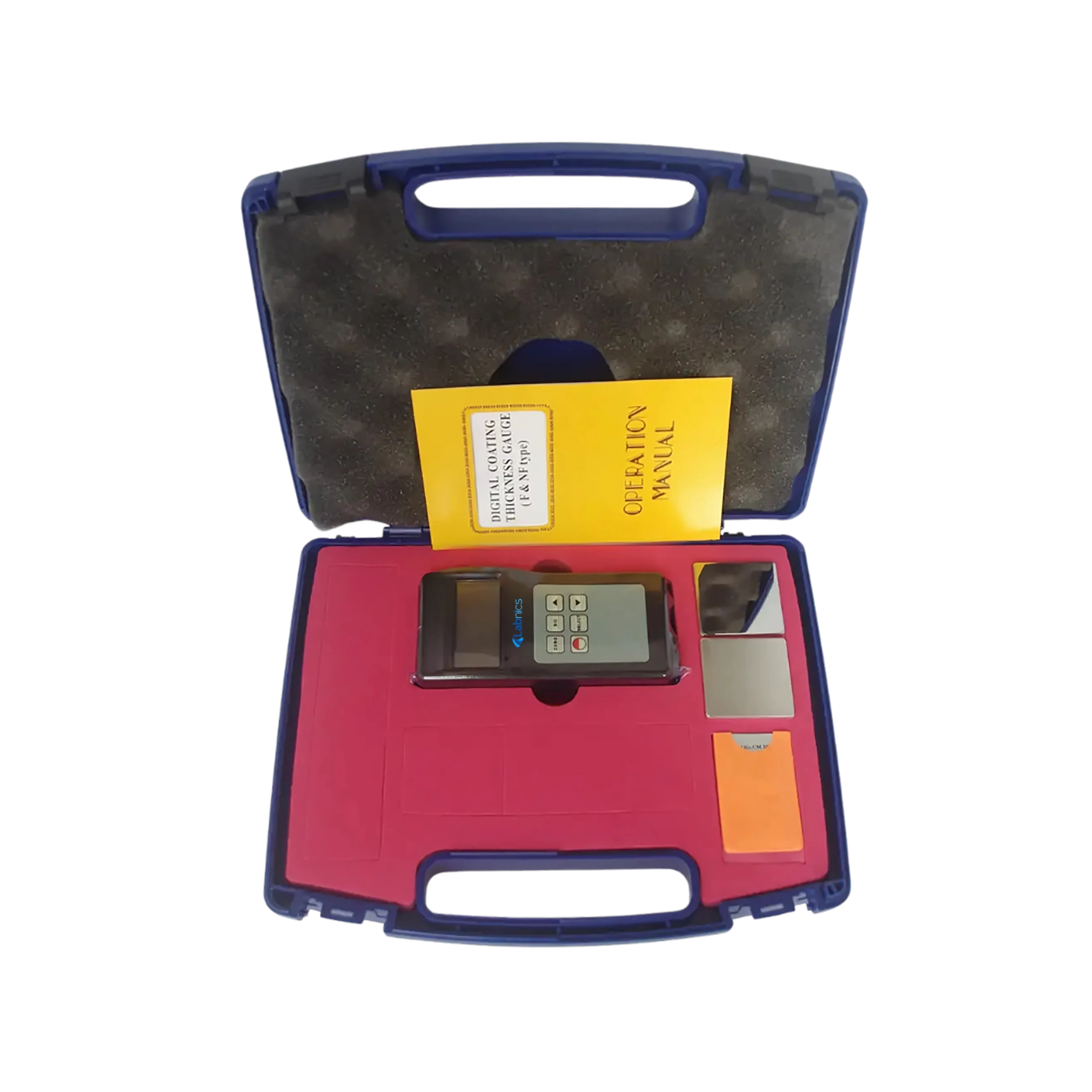

Standard Accessories
F type probe × 1 pc
F Calibration base × 1 pc
Calibration foils × 1 set
Carrying base × 1 pc
Operation manual × 1 pc
Ask Expert
FAQ for Coating Thickness Gauge NCTG-300
1: Can I switch between measurement systems with the Coating Thickness Gauge?
Yes, the Coating Thickness Gauge allows you to switch between metric and imperial units, providing flexibility for different measurement preferences.
2: What is the difference between the integral and separate types of the Coating Thickness Gauge?
The integral type of the Coating Thickness Gauge provides enhanced stability and repeatability, while the separate type supports various interchangeable probes for greater flexibility and measurement precision.
3: How does the Coating Thickness Gauge NCTG-300 assist users during operation?
The Coating Thickness Gauge features a buzzer reminder that alerts users at different process steps, ensuring a smooth and error-free measurement operation.
4: Does the Coating Thickness Gauge require frequent recalibration?
The Coating Thickness Gauge includes an automatic memory feature for calibration values, minimizing the need for recalibration and ensuring consistent and reliable measurements.
5: Is the Coating Thickness Gauge NCTG-300 compatible with external devices?
Yes, the Coating Thickness Gauge supports RS-232 output for PC connectivity and also offers optional Bluetooth data transfer, making it easy to integrate with digital systems.
Labnics Coating Thickness Gauge offers a broad measurement range for versatile coating thickness measurements. They offer high resolution to deliver precise and accurate results. These units have data storage to efficiently track and access measurement records. They feature a clear backlit LCD for easy reading of measurements. Our thickness gauges allow convenient access to statistical data for comprehensive analysis.
