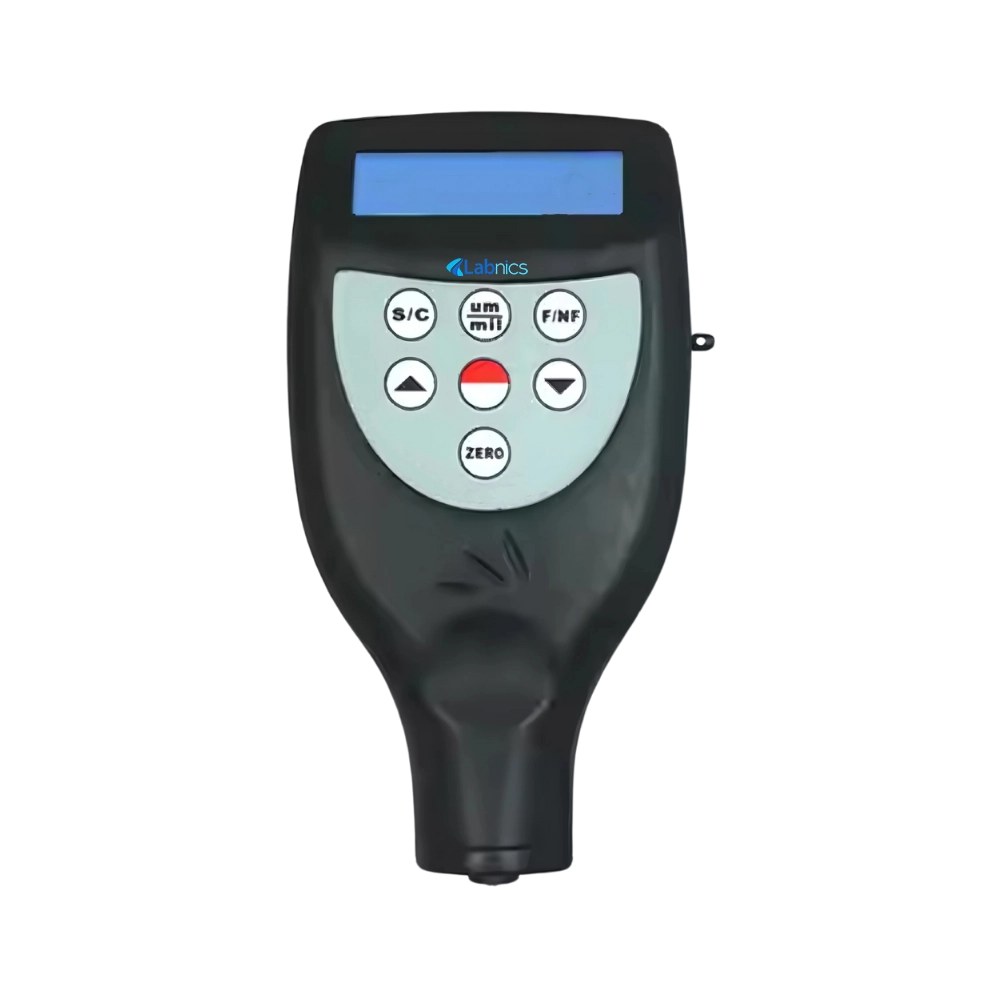

Coating Thickness Gauge NCTG-101 provides accurate readings with a measuring range of 0 to 1250 μm and a resolution of 0.1 μm. It features a compact structure for convenient handling and storage. This unit allows easy selection between metric and imperial measurement systems. It offers an integral type design for stable and consistent measurements. Our coating thickness gauge automatically stores calibration values for efficient operation.
$1,375.00
Specifications
| Measuring Range | 0 to 1250 μm / 0 to 50 mil |
| Resolution | 0.1 μm / 1 μm |
| Accuracy | ±1 to 3%n or ±2.5 μm |
| Operating Principle | NF Type Eddy Current |
| Minimum Radius Workpiece | 3 mm (convex)/ 50 mm (concave) |
| Minimum Measuring Area | 6 mm |
| Minimum Sample Thickness | 0.3 mm |
| Metric / Imperial | Convertible |
| Operating Temperature | 0 to 50°C |
| Humidity | <80% RH |
| Battery Indicator | Low Battery Indicator |
| Power Supply | 4 × 1.5V AAA (UM-4) Battery |
| Dimensions | 126 × 65 × 27 mm |
| Weight | 81 g |
Features
Applications
Standard Accessories
NF type probe × 1 pc
NF Calibration base × 1 pc
Calibration foils × 1 set
Carrying base × 1 pc
Operation manual × 1 pc
Ask Expert
FAQ for Coating Thickness Gauge NCTG-101
1: What should I do if the Coating Thickness Gauge gives inconsistent readings?
Check that the probe is clean and properly positioned. Ensure the correct measurement mode is selected based on the substrate. If needed, recalibrate the Coating Thickness Gauge using the provided standards.
2: Can the Coating Thickness Gauge NCTG-101 connect to external devices?
Yes, the Coating Thickness Gauge offers both RS-232 data output for PC connectivity and an optional Bluetooth interface, enabling efficient data transfer and digital record-keeping.
3: Can the Coating Thickness Gauge perform continuous measurements?
Absolutely. The Coating Thickness Gauge features both single and continuous measurement modes, making it suitable for both spot checks and detailed surface scanning.
4: Can the Coating Thickness Gauge NCTG-101 be used on stainless steel?
Yes, the Coating Thickness Gauge can be used on non-magnetic stainless steel using the eddy current method (NF Type) to measure non-conductive coatings like paint, enamel, or powder coatings.
5: How do I calibrate the Coating Thickness Gauge before use?
To ensure accurate results, calibrate it using the standard foils provided. Refer to the user manual for single-point or multi-point calibration procedures based on your needs.
Labnics Coating Thickness Gauge offers a broad measurement range for versatile coating thickness measurements. They offer high resolution to deliver precise and accurate results. These units have data storage to efficiently track and access measurement records. They feature a clear backlit LCD for easy reading of measurements. Our thickness gauges allow convenient access to statistical data for comprehensive analysis.
