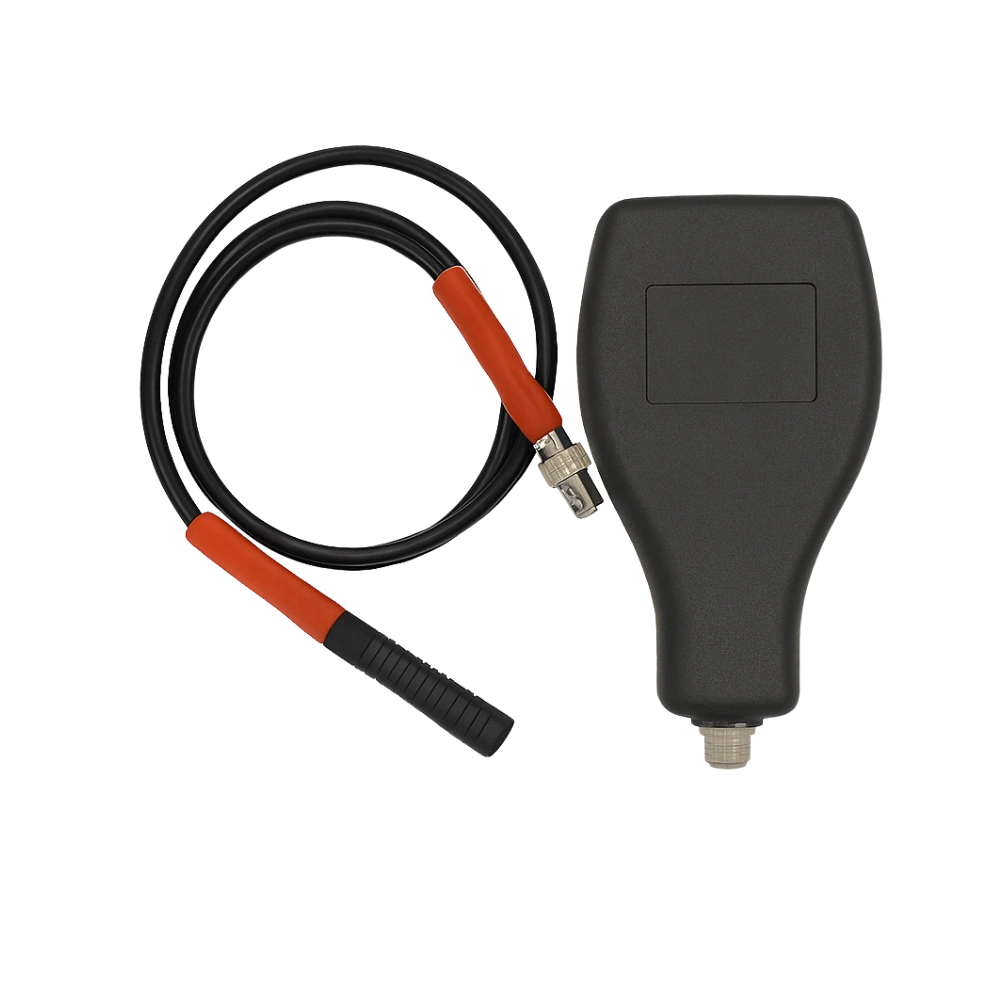

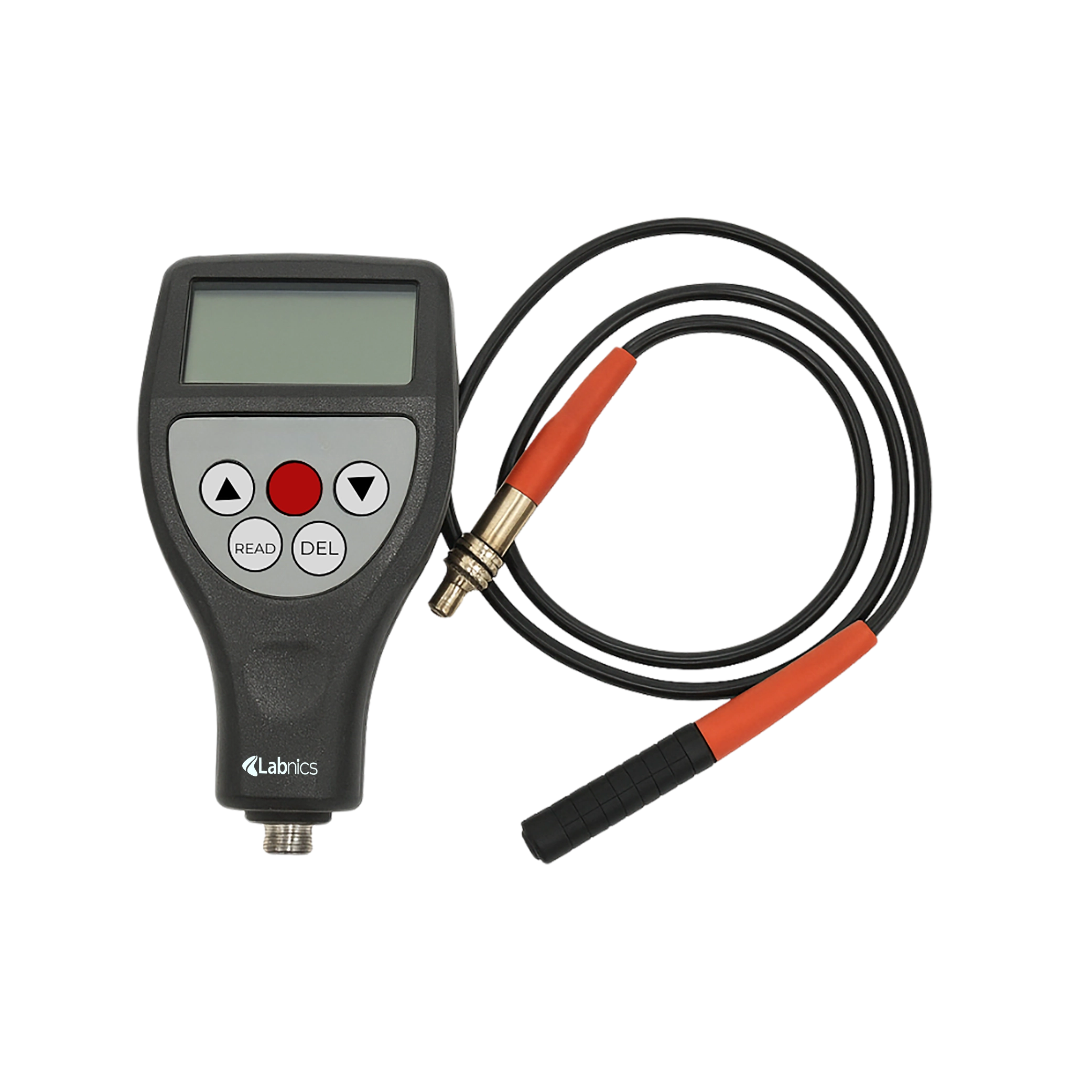

Coating Thickness Gauge NCTG-100 measures thickness from 0 to 1250 µm for precise material analysis. It offers two measurement modes, single and continuous, for flexible operation. It features automatic substrate recognition for accurate measurement of different materials. This gauge features a digital backlit display that provides reliable and error-free readings. Our thickness gauge allows easy access to statistical data for detailed analysis.
$1,675.00
Specifications
| Measuring Range | 0 to 1250 µm/0 to 50mil |
| Resolution | 0.1 µm (0 to 99.9um) 1 µm (over 100um) |
| Accuracy | ±1 to 3%n or 2.5 µm or 0.1mil (Whichever is greater) |
| Operating Temperature | 0 to 50°C |
| Humidity | < 95% |
| Measurement Material | F Probes: Non-magnetic materials on magnetic materials N Probes: Non-magnetic coatings on non-magnetic metals |
| Minimum Radius Workpiece | F: Convex 1.5mm/Concave 25mm N: Convex 3mm/ Concave 50mm |
| Minimum Measuring Area | 6mm |
| Minimum Sample Thickness | 0.3mm |
| Battery Indicator | Low battery indicator |
| PC Interface | RS-232C interface |
| Display | 4-digit LCD, backlit |
| Data Storage | 99 groups of measurements |
| Compliance Standards | ISO 2178, ISO 2361, DIN, ASTM, and BS standards |
| Power Supply | 2 × 1.5 AAA(UM-4) battery |
| Dimensions | 126 × 65 × 35 mm 5.0 × 2.6 × 1.6 inch |
| Weight | 81g (not including batteries) |
Features
Applications
Standard Accessories
Carrying case × 1 pcOptional Accessories
USB adaptor for RS-232CAsk Expert
Labnics Coating Thickness Gauge offers a broad measurement range for versatile coating thickness measurements. They offer high resolution to deliver precise and accurate results. These units have data storage to efficiently track and access measurement records. They feature a clear backlit LCD for easy reading of measurements. Our thickness gauges allow convenient access to statistical data for comprehensive analysis.
