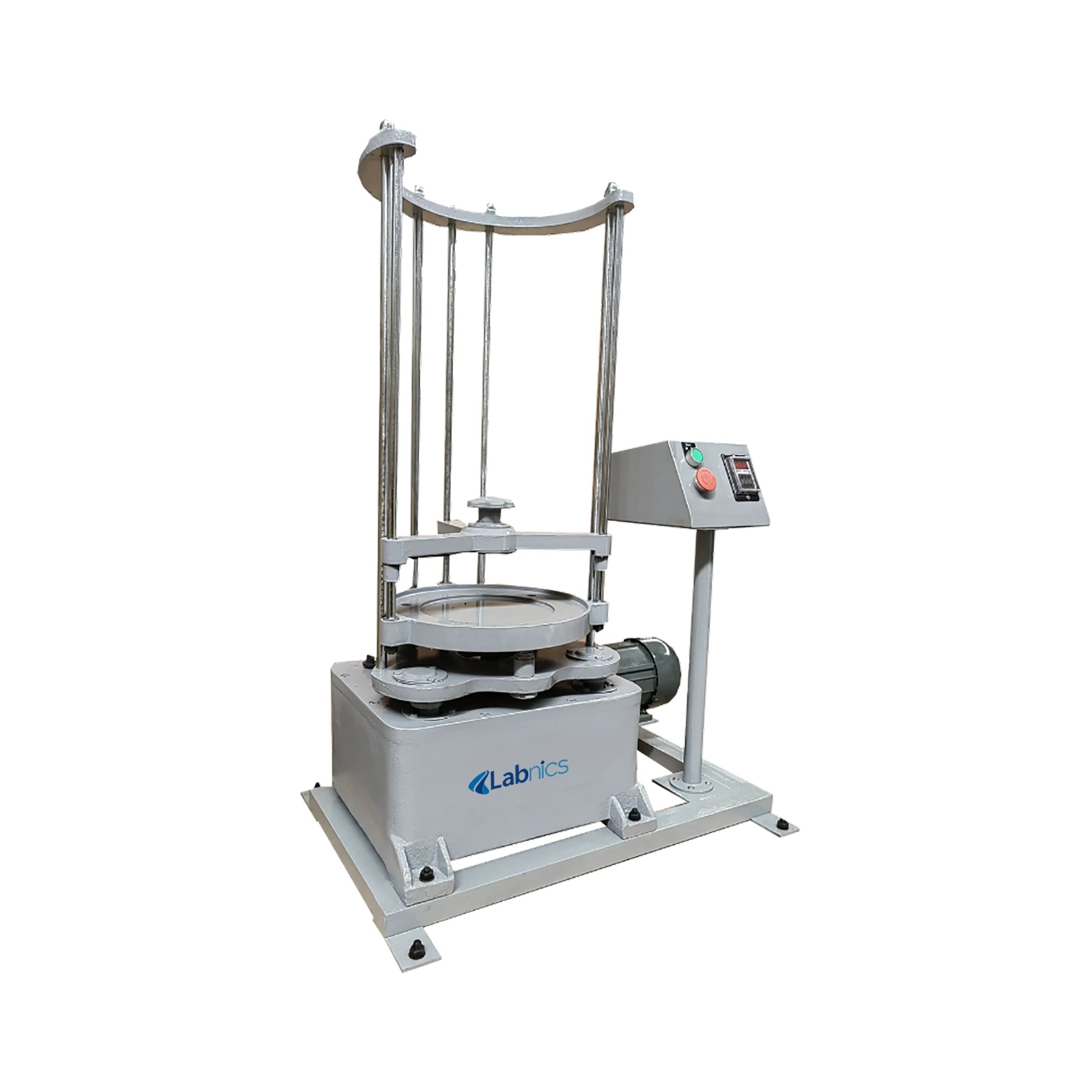

Analytical Sieve Shaker NASSH-100 operates at a shaking frequency of 221 times per minute and a vibration frequency of 147 times per minute for efficient sample separation. It includes a secure locking system for stable and reliable operation. This unit offers adjustable control time for convenient and precise screening. It provides dual-motion screening with both planar shaking and vertical vibration. Our analytical sieve shaker allows tool-free mesh layer replacement for quick and easy setup.
$2,963.00
Specifications
| Shaking Frequency | 221 times/min |
| Vibration Frequency | 147 times/min |
| Motor Speed | 1400 RPM |
| Timing Range | 0 to 60 min |
| Maximum Height | 400 mm |
| Vertical Amplitude | 5 to 8 mm |
| Sieve Diameter | 200 mm, 300 mm (optional) |
| Power Consumption | 0.37 kW |
| Power Supply | 380 V |
| Dimension | 550 × 400 × 800 mm |
| Weight | 85 kg |
Features
Applications
Ask Expert
FAQ for Analytical Sieve Shaker NASSH-100
1: What ensures efficient particle separation in the Analytical Sieve Shaker NASSH-100?
The Analytical Sieve Shaker NASSH-100 ensures efficient particle separation through a combination of planar shaking and vertical vibration. This dual-motion screening mechanism helps distribute the sample evenly across all sieve layers, improving classification accuracy and reducing the chance of particle accumulation or blockage.
2: What materials can be tested using the Analytical Sieve Shaker NASSH-100?
The Analytical Sieve Shaker NASSH-100 is suitable for a wide range of dry materials including powders, granules, minerals, cement, and chemical compounds. It is commonly used in metallurgy, cement production, geological studies, and chemical processing industries for both research and quality control purposes.
3: Is the Analytical Sieve Shaker NASSH-100 compatible with various sieve sizes?
Yes, the Analytical Sieve Shaker NASSH-100 is designed to support standard 200 mm sieves and can also accommodate 300 mm sieves as an optional configuration. This compatibility allows users to select the appropriate sieve size depending on the sample type and testing requirements.
4: How does the Analytical Sieve Shaker NASSH-100 maintain stability during use?
To ensure safe and consistent operation, the Analytical Sieve Shaker NASSH-100 is equipped with a secure locking system that firmly holds the sieve tower in place. This system prevents vibration-related shifting, ensuring that all layers remain properly aligned during high-frequency shaking and vibration.
5: What safety features are provided in the Analytical Sieve Shaker NASSH-100?
Our Analytical Sieve Shaker NASSH-100 is equipped with essential safety features, including an automatic stop function and a stable locking system. These features minimize the risk of accidental opening, protect the operator during use, and help maintain safe working conditions throughout the screening process.
Labnics Analytical Sieve Shakers support a multi-layer sieve tower for the simultaneous separation of multiple particle sizes. They utilize dual-motion screening for efficient and accurate particle separation. These units offer a secure locking system for stable and uninterrupted sieving. They include adjustable control time for precise sieving durations. Our analytical sieve shakers feature a compact design that fits easily into laboratory spaces.
