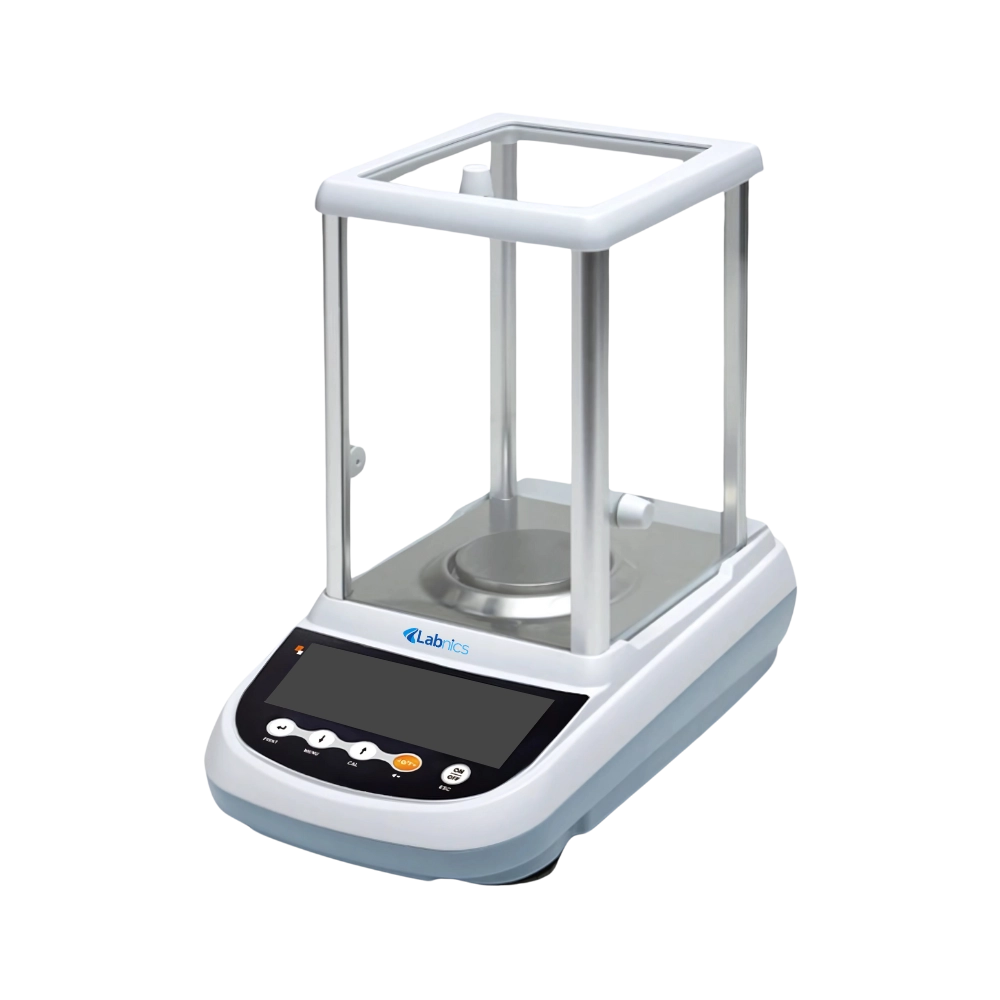

Analytical Balance NAB-203 is designed with a 610g capacity, for precise weighing applications. It features a load cell that ensures stability and resists temperature and time fluctuations. This unit utilizes an electromagnetic force sensor to enhance measurement accuracy and overall stability. It includes a backlit LCD for clear readability of results, even in low-light environments. Our analytical balance comes with a glass draft shield that protects the internal chamber from contaminants.
$3,163.00
Specifications
| Capacity | 610g |
| Readability | 0.1mg |
| Repeatability | 0.1mg if weight ≤ 220g 0.3 mg from 220g to 310g 0.35mg from 310g to 610g |
| Pan size | Φ80mm |
| Minimum weighing | 0.4mg |
| Stabilization time | ≤4 secs |
| Operating temperature | 5 to 35℃ |
| Linearity | ± 0.5mg |
| Display | LCD (white backlight with black font) |
| Draft shield size | 162×171×225mm |
| Calibration weight | Internal Calibration |
| Interface | RS232C (Standard), RS485/Printer (Optional) |
| Dimension | 345×215×345mm |
| Net weight | 7kg |
Features
Applications
Optional Accessories
IonizerAsk Expert
FAQ for Analytical Balance NAB-203
1: Why does the analytical balance NAB-203 use an electromagnetic force?
The electromagnetic force sensor enhances measurement accuracy by minimizing the effects of temperature changes and time-related drift, ensuring stable and precise readings even in fluctuating conditions.
2: How should I position samples to avoid unstable readings?
Always place samples gently in the center of the pan and close the glass draft shield to prevent air currents.
3: What should I do if the balance displays an overload alarm?
Remove excess weight immediately, as the balance capacity is 610g. Overloading can damage the sensor. Make sure the sample weight does not exceed the maximum capacity.
4: What maintenance steps can extend the lifespan of the analytical balance NAB-203?
Regularly clean the draft shield and pan with a soft brush, avoid overloading, and keep the balance level using the built-in level indicator, and calibrate periodically as recommended.
5: Are there accessories available to improve the balance’s performance in specific environments?
Yes, an ionizer accessory is available to reduce static electricity, which can interfere with precise measurements, especially in dry environments.
6: Why does the Analytical Balance have a glass shield?
The transparent glass shield is designed to block external air drafts and dust. This ensures consistent weighing conditions and prevents fluctuation in readings. It helps protect both the sample and the measurement integrity.
7: Is the Analytical Balance easy to calibrate?
Most analytical balances include internal or external calibration options. Internal calibration is automatic and ensures precision without manual effort. External calibration allows the use of certified weights to validate accuracy regularly.
8: How durable is an Analytical Balance?
Analytical balances are designed with sturdy materials and a sealed weighing chamber. This makes them durable and resistant to environmental contamination. Proper handling and regular maintenance extend their lifespan.
9: How often should an Analytical Balance be cleaned?
Cleaning should be done regularly, ideally after each use. This prevents dust, residue, or chemical spills from affecting accuracy. Use a soft brush or lint-free cloth and avoid harsh chemicals that may damage internal components.
Labnics Analytical Balances are designed to provide highly precise measurements. They feature a draft shield to maintain stability and prevent airflow interference. These units include an auto-zero function that ensures the balance resets when no weight is detected. They have built-in overload protection to safeguard internal components from potential damage. Our analytical balances display results on an easy-to-read LCD digital screen.
