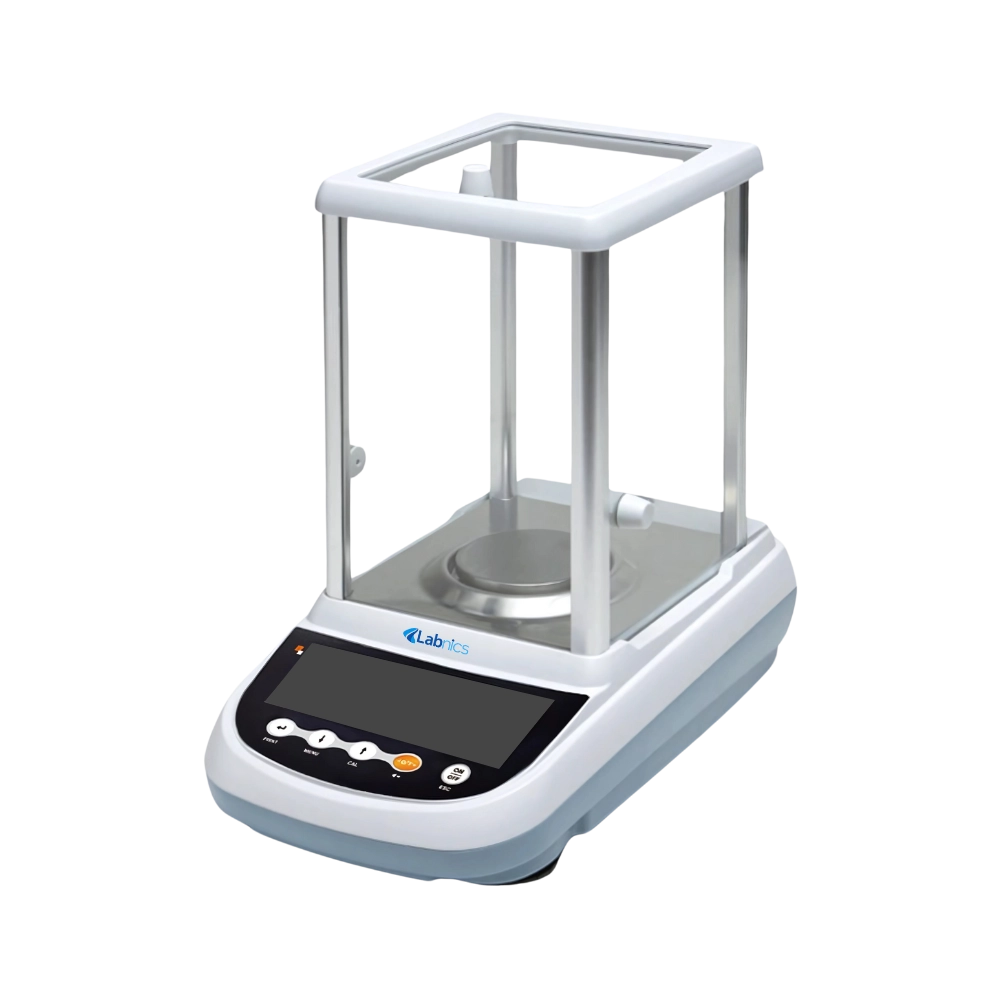

Analytical Balance NAB-202 features a 510g capacity and operates within a temperature range of 5°C to 35°C. It has a pan size of 80mm in diameter and a minimum weighing capacity of 0.4mg. This unit is designed with an automatic internal calibration function without the need for manual adjustment. It has a glass draft shield with three sliding doors for easy access and stable weighing. Our analytical balance includes alarms for overload and a level indicator to ensure accurate placement of the scale.
$3,025.00
Specifications
| Capacity | 510g |
| Readability | 0.1mg |
| Repeatability | 0.1mg if weight ≤ 220g 0.3 mg from 220g to 310g 0.35mg from 310g to 610g |
| Pan size | Φ80mm |
| Minimum weighing | 0.4mg |
| Stabilization time | ≤4 secs |
| Operating temperature | 5 to 35℃ |
| Linearity | ± 0.5mg |
| Display | LCD (white backlight with black font) |
| Draft shield size | 162×171×225mm |
| Calibration weight | Internal Calibration |
| Interface | RS232C (Standard), RS485/Printer (Optional) |
| Dimension | 345×215×345mm |
| Net weight | 7kg |
Features
Applications
Optional Accessories
IonizerAsk Expert
FAQ for Analytical Balance NAB-202
1: Why does the analytical balance NAB-202 use an automatic internal calibration system?
The automatic internal calibration adjusts the balance continuously to maintain precision without requiring manual calibration.
2: What should I do if the balance readings fluctuate or seem unstable?
First, confirm the balance is placed on a flat, vibration-free surface and that the level indicator shows proper leveling. Make sure the draft shield doors are closed.
3: How does the glass draft shield with three sliding doors help during weighing?
The draft shield protects samples from air disturbances. Its three sliding doors allow easy access to the pan from multiple sides without removing the shield, minimizing the risk of sample disturbance.
4: What safety features prevent damage when overloading the balance?
The analytical balance NAB-202 includes an overload alarm that alerts when the load exceeds the 510g capacity.
5: What should I do if the balance does not start or respond?
Check that the power cable is securely connected and the outlet is functional. Ensure the power switch is turned on.
6: Why does the Analytical Balance have a glass shield?
The transparent glass shield is designed to block external air drafts and dust. This ensures consistent weighing conditions and prevents fluctuation in readings. It helps protect both the sample and the measurement integrity.
7: Is the Analytical Balance easy to calibrate?
Most analytical balances include internal or external calibration options. Internal calibration is automatic and ensures precision without manual effort. External calibration allows the use of certified weights to validate accuracy regularly.
8: How durable is an Analytical Balance?
Analytical balances are designed with sturdy materials and a sealed weighing chamber. This makes them durable and resistant to environmental contamination. Proper handling and regular maintenance extend their lifespan.
9: How often should an Analytical Balance be cleaned?
Cleaning should be done regularly, ideally after each use. This prevents dust, residue, or chemical spills from affecting accuracy. Use a soft brush or lint-free cloth and avoid harsh chemicals that may damage internal components.
Labnics Analytical Balances are designed to provide highly precise measurements. They feature a draft shield to maintain stability and prevent airflow interference. These units include an auto-zero function that ensures the balance resets when no weight is detected. They have built-in overload protection to safeguard internal components from potential damage. Our analytical balances display results on an easy-to-read LCD digital screen.
