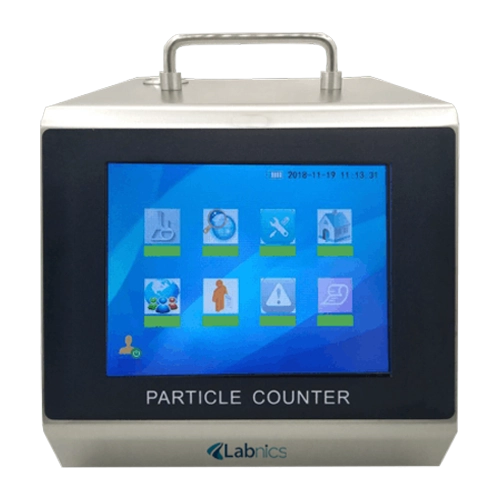

Airborne Particle Counter NAPC-200

Airborne Particle Counter NAPC-200 is an analytical instrument designed to evaluate the number and size distribution of particulate matter suspended in a cleanroom environment. It is equipped with a laser diode as a light source and various size channels that enable to achieve measurement of a wide range of bio-contaminants. The data transmission interface feature allows crucial monitoring and assessment of the air quality standards as per the GMP guidelines.

---

$2,663.00

Buy Now Catalog

Specifications

Flow Rate	2.83 L/min (Imported Pump)
Size Channels	0.3, 0.5, 1, 3, 5, 10 µm
Sample Time	1 to 10 min
Zero Count & le	10 min
Location Labels	0 to 999
Printer	Built-in Thermal Printer
Alarm	100, 1000, 10000 Class
Data Storage	1000 Samples (with PC Software)
Light Source	Laser Diode (30, 000 hours Mean Time Between Failures)
Maximum Rated Particle Concentration	35000 particles/ L ( µM )
Operating Time	8 hours
Environment Temperature	10°C to 35°C
Humidity	20 % to 75 % RH
Atmosphere Pressure	86 kPa to 106 kPa
Display	LCD
Power Source	AC 220 V ± 10 %, 50 Hz
Max. Power Consumption	10 W
Weight	4.5 kg

Features

• It is made up of 304 Stainless steel material
• Equipped with LCD touch screen display
• Built in Thermal Printer
• Back operation interface
• Supported with sampling port and changing port
• USB interface

Applications

• It is widely used in the field of Quality control department in Pharmaceutical sector, micro-electronics, precision machinery, optics, pharmacy and sanitation, biology, food and beverage, aerospace. Also in and scientific research department such as provincial and municipal drug testing institutes, Hospitals, Inspection institutes. etc.
