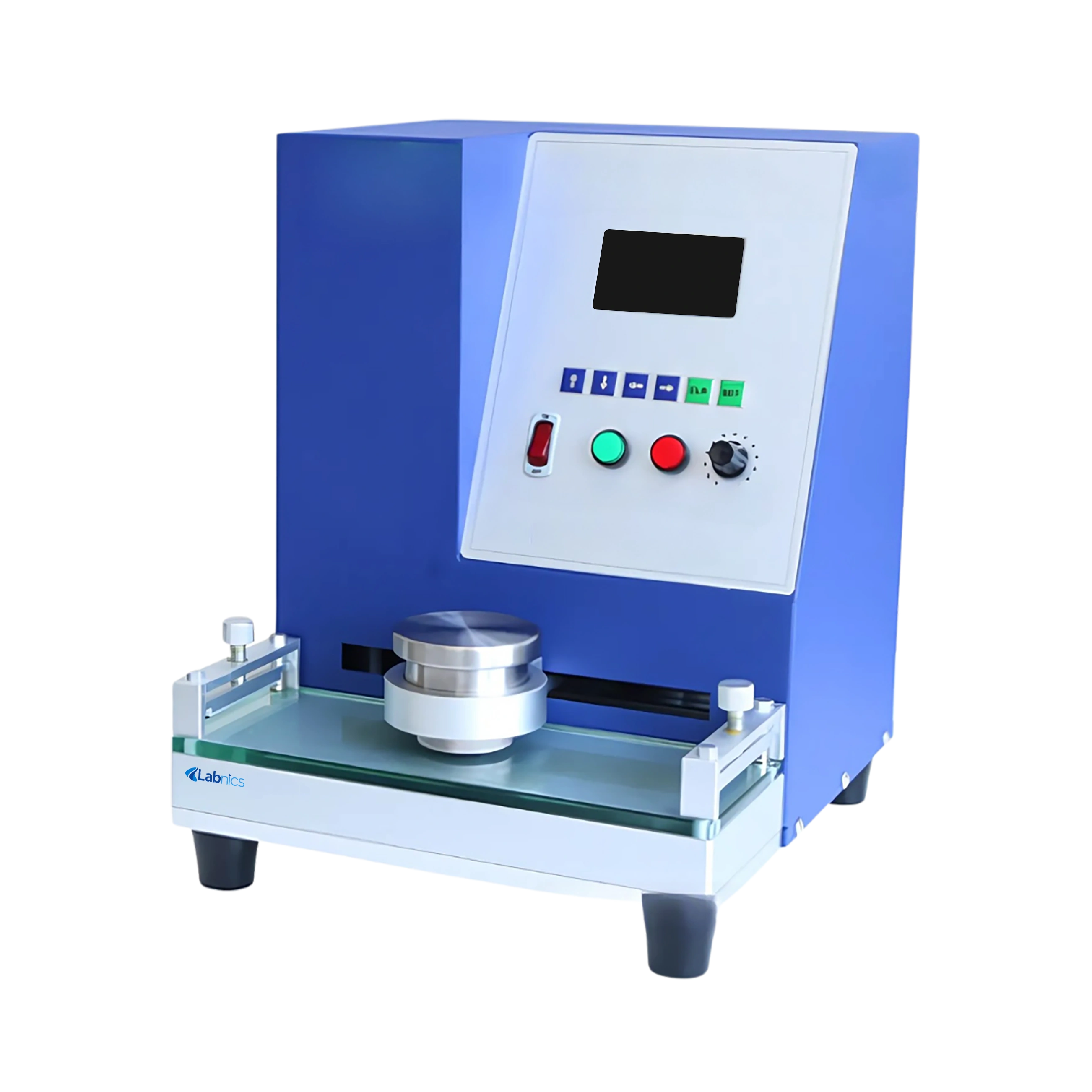

Abrasion Resistance Machine NARM-100 provides a rubbing distance of 30 mm ± 1 mm along with a rubbing frequency of 60 cpm ± 5 cpm. It offers stepless speed adjustment to ensure smooth and flexible operations. This unit has a compact structure that allows convenient use and easy placement. It has an automatic counting function for accurate and efficient test recording. Our abrasion machine comes with an LCD display for clear monitoring of operating speed and test counts.
$3,863.00
Specifications
| Rubbing Distance | 30 mm ± 1 mm |
| Rubbing Frequency | 60 cpm ± 5 cpm |
| Rubber Head Load | 10 N ± 0.5 N |
| Rubber Medium | Steel Wire Brush |
| Settable Rubbing Times | 0 to 9,999 |
| Rubber Head Size | (10 ± 1) × (10 ± 1) mm (1.0 cm² in area) |
| Power Supply | AC 110/220 V; 50/60 Hz |
| Dimensions | 270 × 310 × 340 mm |
| Weight | 18 kg |
Features
Applications
Ask Expert
Labnics Abrasion Resistance Machine offers stepless speed adjustment for precise control during operation. They are built with a robust design to ensure reliable and extended use. These units feature a microcomputer control system for precise and consistent operation. They are equipped with an LCD display for clear and easy monitoring of parameters. Our abrasion machine comes with an automatic counting function for accurate and convenient testing.
